Current Alternatives
These alternatives serve different requirements and are not direct drop-in replacements for the 1264-6-BAY NAS. Confirm chassis, processor, memory, storage, network, power, and operating-system requirements before ordering.
C612NP-8-BAY NAS
An eight-bay Xeon storage server for customers who need a complete system with greater drive capacity, memory, networking, and PCIe expansion.
- Intel Xeon E5 v4 platform
- 8 hot-swappable SATA bays
- Up to 64GB DDR4 memory
- 6 RJ45 ports and PCIe x16 expansion
B760-NAS-17-MB
A Mini-ITX motherboard platform for building a higher-performance NAS with a compatible chassis, desktop processor, memory, power supply, and storage.
- Intel 12th/13th/14th Gen LGA1700
- Up to 96GB dual-channel DDR5
- 8 SATA and 2 M.2 slots
- 4 x 2.5GbE and PCIe Gen4 x4
Z690-MATX
A Micro-ATX motherboard platform for custom NAS and server builds requiring more memory, M.2 storage, and PCIe expansion than the original system.
- Intel 12th/13th Gen LGA1700
- Up to 128GB DDR4 memory
- 8 SATA and 4 M.2 slots
- 4 x 2.5GbE and multiple PCIe slots
Quick Specs
Specifications

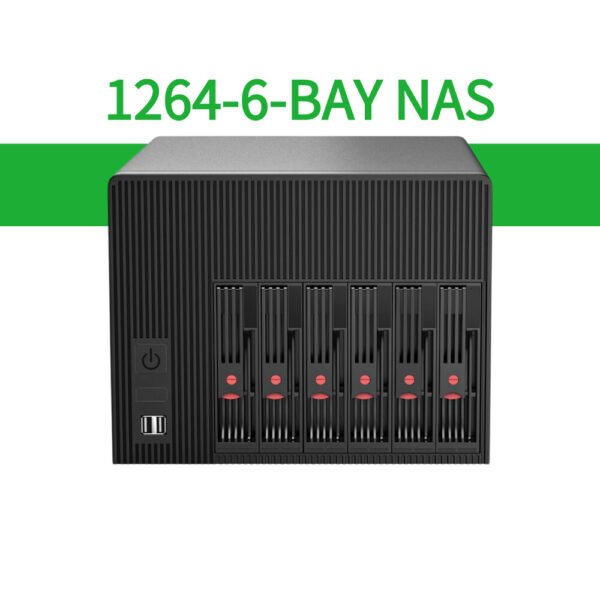

| Product Model | BKHD 1264-6-BAY NAS |
|---|---|
| Processor Platform | Integrated Intel Processor N-series; Intel N100 or N150 depending on product variation |
| Processor Package | FCBGA1264, soldered processor |
| Memory | 1 x DDR5 SO-DIMM, up to 16GB, up to 4800 MT/s |
| Drive Bays | 6 x hot-swappable SATA drive bays |
| SATA Storage | Up to 6 x SATA 6Gb/s |
| M.2 Storage | 1 x M.2 Key-B/M 2280 and 1 x M.2 Key-M 2280 |
| Ethernet | 4 x RJ45 2.5GbE |
| Network Controllers | 4 x Intel I226-V |
| PCIe Expansion | 1 x PCIe Gen3 x1 slot; chassis opening reserved for compatible expansion |
| Graphics | Intel UHD Graphics integrated in the processor |
| Display Outputs | 1 x HD, 1 x DisplayPort |
| Front Panel | 1 x power/restart button, 2 x USB-A 2.0, 6 x hot-swappable drive bays |
| Rear USB | 2 x USB-A 3.0, 2 x USB-A 2.0 |
| Rear I/O | 4 x RJ45 LAN, 1 x HD, 1 x DisplayPort, 1 x combo audio jack, AC power input, and reserved PCIe expansion opening |
| Cooling | Active cooling: 1 x processor fan and 2 x chassis fans |
| Power Input | 100V-240V AC, 50-60Hz; power-supply rating stated in the data sheet as up to 400W |
| System Features | Wake-on-LAN, PXE boot, watchdog, and configurable automatic power-on after power restoration |
| Chassis Size | 250 x 260 x 210 mm |
| Equipment Weight | 5.1kg system weight; 6.3kg package weight including accessories |
| Operating Temperature | 0°C to 50°C |
| Humidity | 5% to 90% relative humidity, non-condensing |
Memory, SSDs, hard drives, and operating-system software depend on the selected bundle. RAID, link aggregation, storage performance, and device compatibility depend on the installed drives, network equipment, operating system, and final configuration. Verify the fitted power-supply label for the shipped production batch.
Typical Applications
Home and Small-Business NAS
Six hot-swappable bays, dual M.2 storage, and four 2.5GbE ports support shared folders, personal cloud storage, media libraries, and team file access.
Backup and Archive Server
Use multiple drives for scheduled workstation backups, document archives, and off-site synchronization, with M.2 storage available for the system or software-defined cache.
Creative-Studio Storage
Multi-drive capacity and quad 2.5GbE connectivity make the system suitable for shared project files, asset libraries, and properly planned photo or video workflows.
Edge and Surveillance Storage
The compact chassis, watchdog, automatic power-on, Wake-on-LAN, and six drive bays support lightweight edge services and appropriately sized surveillance-storage deployments.
Downloads & Support
Important: the Intel N100 and Intel N150 versions require different BIOS files. Before updating, verify the processor version, motherboard model, PCB marking, hardware revision, and current BIOS version. Installing an incompatible BIOS may prevent the system from booting.
