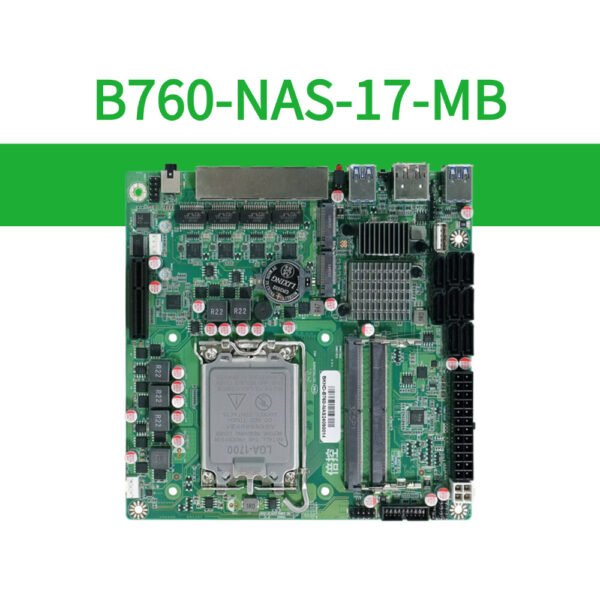

B760-NAS-17-MB

Original price was: $165.00.Current price is: $139.99.

B760-NAS-17-MB is a next-generation Mini-ITX motherboard for enterprise-level storage and edge computing. Based on the Intel B760 chipset, it supports the 12th/13th/14th generation Core/Pentium processors (LGA1700 slot), integrates dual-channel PCIe 4.0+3.0 NVMe+8×SATA architecture and 4×2.5GbE network ports, providing desktop-sized data center-level performance for private cloud, virtualization platform and 4K media production.

Main Features:
  • Storage expansion breakthrough: The main M.2 (PCIe 4.0×4) supports high-speed data reading and writing, adapts to ZFS/L2ARC cache, and the secondary M.2 (PCIe 3.0×4) is compatible with low-cost NVMe for redundant cache or system disk; 4x SATA direct-connect chipsets, full speed without bottlenecks, 4x SATA through the JMB585 controller, build a 128TB (16TB×8) hybrid data storage pool.
  • Network and expansion capabilities: 4x 2.5GbE network ports support LACP aggregation and VLAN isolation management/storage/backup traffic; PCIe 4.0 x4 slots can support expansion of network cards/GPU acceleration cards/U.2 NVMe hard disk cages, etc., to enhance system functions.
  • Enterprise-level reliability: Supports hardware-level protection, watchdog automatically resets system downtime, and power-off self-restart ensures business continuity; dual 4pin fan interfaces support PWM precise temperature control. Dual-channel DDR5 can meet memory-intensive load scenarios.

50 in stock

Category: Tags: , , , , Brand:
High-Performance Home / Studio NAS

Builds a personal media data center supporting real-time 4K HDR transcoding, or serves as a high-speed shared project storage pool for creative professionals.

Small Business Storage and Virtualization Server

Acts as an all-in-one IT infrastructure platform integrating a file server, backup server, and lightweight application virtual machines.

Professional Surveillance Storage (NVR)

Supports the ingestion and storage of large volumes of high-definition video streams, meeting the storage requirements of large-scale security and surveillance projects.

Software Router / All-in-One Home Server

Functions as a high-performance primary router or firewall while integrating a wide range of home network services, such as smart home control, download services, and personal blog hosting.

Development, Testing, and Edge Computing Node

Provides a high-performance, multi-network local server environment for software development, testing, and edge computing workloads.

ProcessorProduct CollectionIntel 12th/13th/14th Gen Processor
Sockets SupportedFCLGA1700
Memory specificationsMemory type2*DDR5 SO-DIMM
Maximum capacity2*48GB
Maximum frequency4800 MT/s
Storage specificationsSATA8*SATA 3.0 [JMB585 (PCIe x1 to 4*SATA)]
M.22*M.2 Key-M 2280 (PCIe Gen4 x4/PCIe Gen3 x4)
Network featuresEthernet4*2.5GbE
Controller4*Intel I226V
Extension interfacePCIe1*PCIe x4 (PCIe Gen4)
Display functionsPorts1*DP/1*HD
ChipBased on processor
Backplane I/OUSB4*USB-A 3.2
Display1*DP/1*HD
LEDPWR LED/HDD LED
Ethernet4*RJ45
Audio1*Combo jack 3.5 mm connector
Onboard I/OSATA8*SATA data connector
USB1*USB-A 2.0
Fan1*SYS_FAN/1*CPU_FAN
Pins1*F_PANEL
2*F_USB 2.0, 1*F_USB 3.0
1*J_COM (RS232)
Power supply modeDC 12VATX 24-pin+4-pin Connector
Motherboard sizeSpecification170 mm*170 mm (Mini-ITX)
Work EnvironmentTemperatureWorking: 0℃~60℃; Storage: -20℃~60℃;
Humidity0%~90% (Relative humidity, no condensation)
