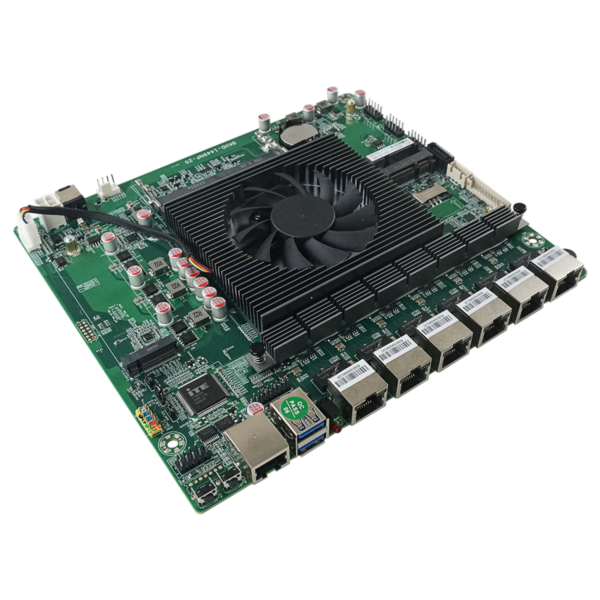

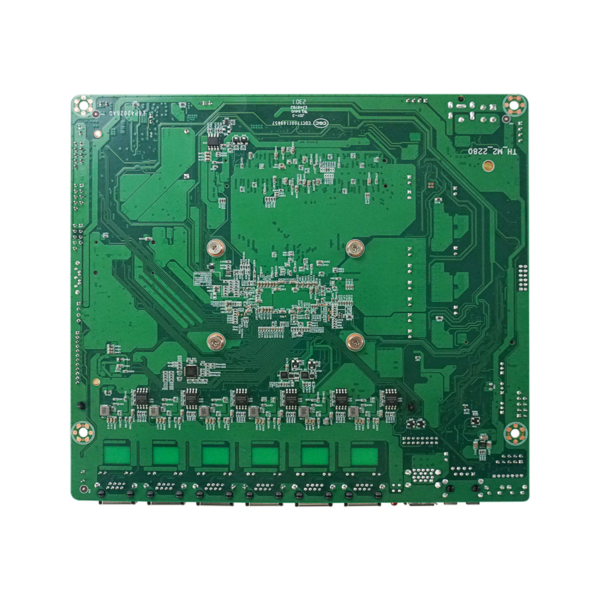

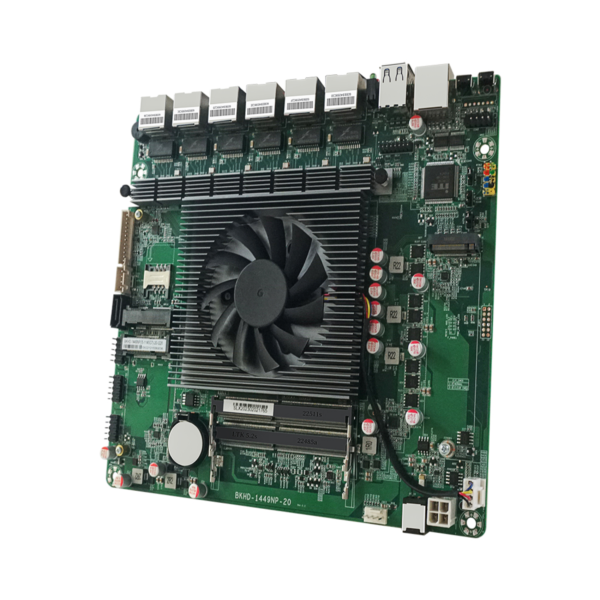

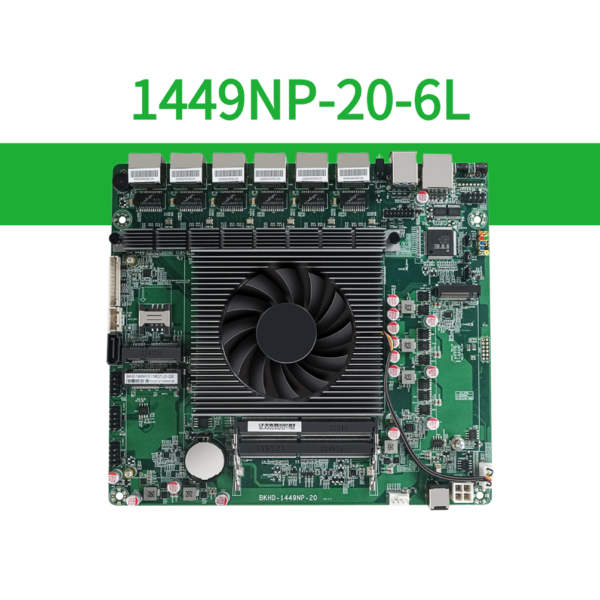

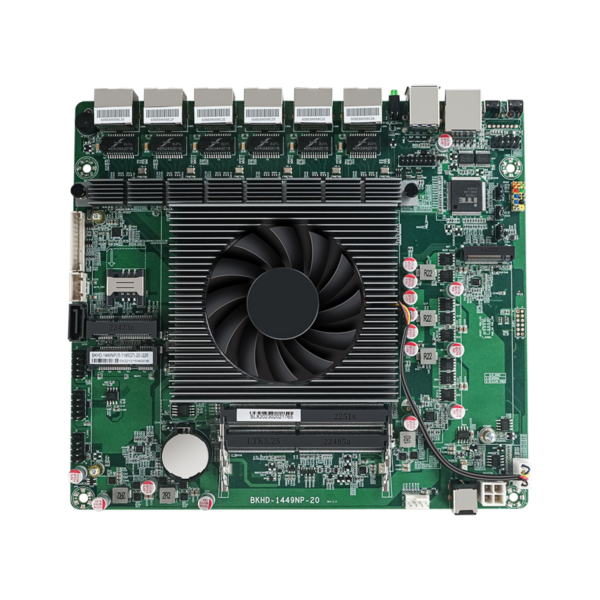

Name: 1449NP-20-6L 6-Port 2.5GbE Network Motherboard | BKHD
Availability: InStock

Quick Specs

Processor Platform11th Gen Intel Tiger Lake platform

Network6 x Intel I226V 2.5GbE

Power Input12V DC; jack or ATX 4-pin

MemoryDDR4 SO-DIMM, up to 64GB

StorageSATA + mSATA + M.2 Key-M 2280

Board Size180 x 200 mm

Specifications

Product Model	BKHD 1449NP-20-6L
Product Type	Network motherboard
Processor Platform	11th Gen Intel Tiger Lake platform, FCBGA1449
Memory	2 x DDR4 SO-DIMM slots, up to 64GB, up to 3200 MT/s
Storage	1 x SATA 6Gb/s; 1 x mSATA; 1 x M.2 Key-M 2280 (PCIe signal)
Ethernet	6 x RJ45 2.5GbE with Intel I226V controllers
Panel I/O	6 x RJ45 LAN; 2 x USB-A 3.0; 1 x RJ45 RS232; power and reset buttons; 1 x DC jack
Onboard Headers	3 x USB 2.0 headers; 1 x COM header; 1 x PS/2 header; 1 x front-panel header
Display Headers	1 x VGA header; 1 x HD header
Fan Headers	1 x CPU_FAN; 1 x SYS_FAN
SIM	1 x onboard SIM card slot
Expansion	1 x mPCIe
Board Size	180 x 200 mm
Power Input	12V DC via DC jack or ATX 12V 4-pin connector; use one input only
Operating Temperature	-20 to 55°C
Operating Humidity	5%-90% relative humidity, non-condensing

Six physical 2.5GbE interfaces provide separate connections for WAN, LAN, management, and isolated network zones in a custom appliance.

The 180 x 200 mm board, 12V DC power options, and onboard headers support integration into a purpose-built enclosure.

The RJ45 RS232 console and onboard COM, USB, and PS/2 headers provide interfaces for industrial communication and local device integration.

SATA, mSATA, M.2 storage, and VGA/HD expansion headers provide building blocks for customized network and embedded systems.
