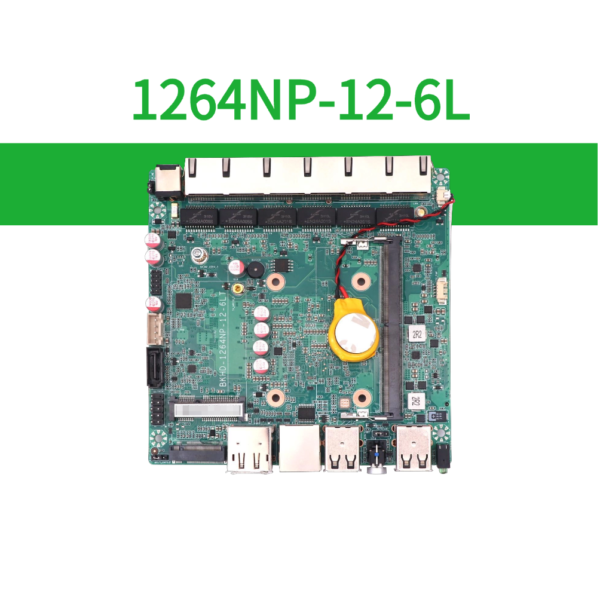

Quick Specs
Specifications

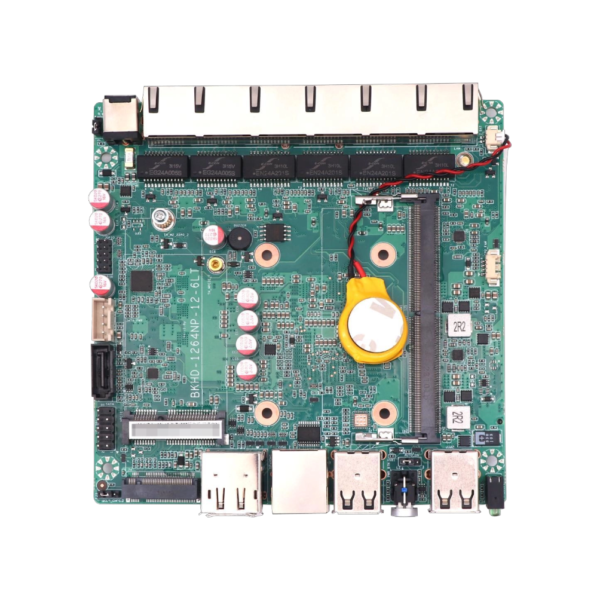

| Product Model | BKHD 1264NP-12-6LT |
|---|---|
| Product Type | Nano-ITX industrial network motherboard |
| Processor Platform | Intel Processor N-series |
| Processor Package | FCBGA1264, integrated processor |
| Memory | 1 x DDR5 SO-DIMM, up to 16GB, up to 4800 MT/s |
| SATA Storage | 1 x SATA 3.0 data connector, 6Gb/s; 1 x onboard SATA power socket |
| M.2 Storage | 2 x M.2 Key-M 2280 slots, PCIe x1 signal per slot |
| Ethernet | 6 x RJ45 2.5GbE |
| Network Controllers | 6 x Intel I226V |
| Expansion | 1 x mPCIe slot with USB 2.0 signal |

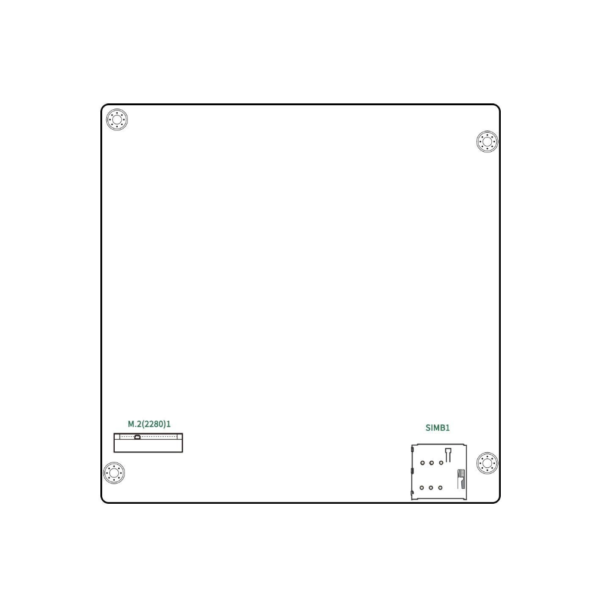

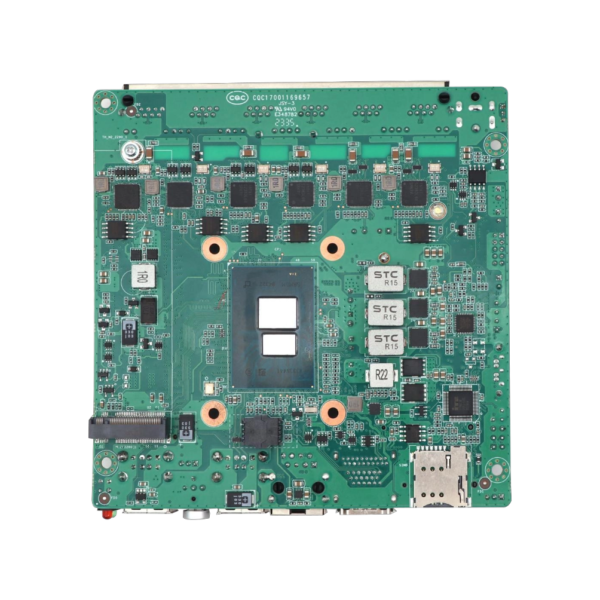

| SIM | 1 x SIM card slot on the underside of the motherboard |
| Graphics | Intel UHD Graphics integrated in the processor |
| Display Outputs | 1 x DP, 1 x HD |
| External USB | 4 x USB-A 2.0 |
| Console | 1 x RJ45 COM, RS232 |

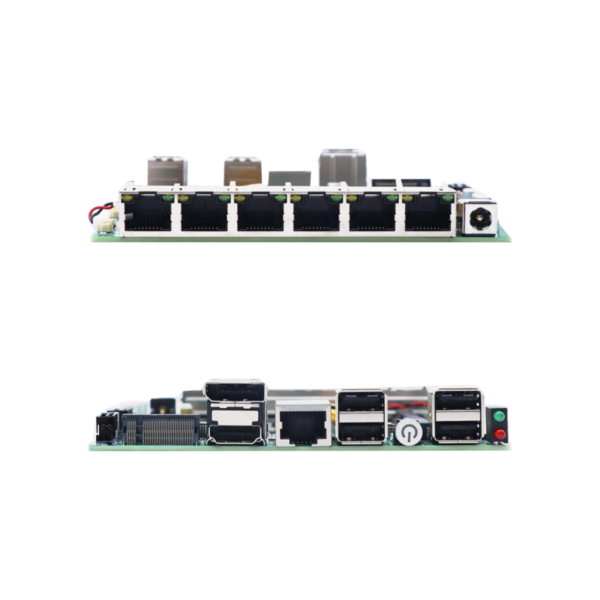

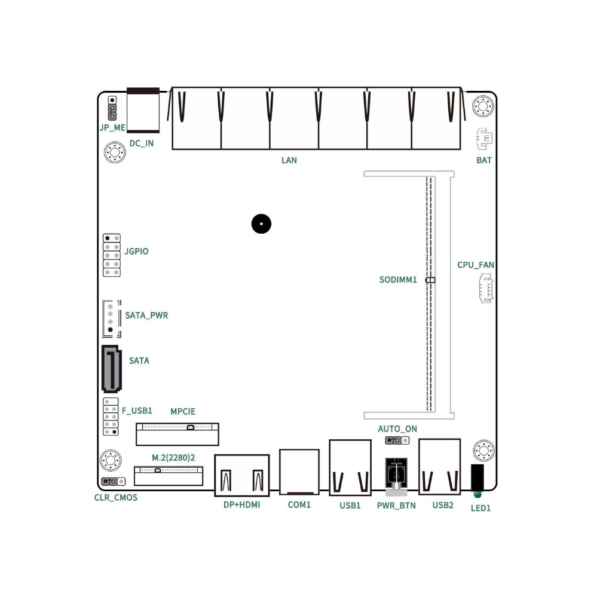

| External I/O | 6 x RJ45 LAN, 4 x USB-A 2.0, 1 x DP, 1 x HD, 1 x RJ45 COM, 1 x DC input, and 1 x power button |
| Onboard Headers | 1 x F_PANEL, 1 x F_USB 2.0, 1 x JGPIO, 1 x CPU_FAN, 1 x SATA data connector, and 1 x SATA power socket |
| System Features | Configurable automatic power-on, Clear CMOS jumper, and ME write-protection jumper |
| Power Input | DC 12V through a 5.5/2.5 mm jack |
| Form Factor | Nano-ITX, 120 x 120 mm |
| Operating Temperature | -20°C to 55°C at motherboard level |
| Operating Humidity | 5% to 90% relative humidity, non-condensing |
Specifications may vary by processor option, hardware revision, and production batch. M.2 performance is limited by the documented PCIe x1 link per slot. Cellular, wireless, display, operating-system, and peripheral compatibility depend on the final module, driver, thermal solution, and system configuration.
Typical Applications
Firewall and Multi-WAN Appliance
Six Intel I226V 2.5GbE ports provide flexible interfaces for firewalls, VPN gateways, software routers, network segmentation, and multi-WAN deployments in compact security appliances.
Industrial IoT Gateway
RJ45 COM, GPIO, mPCIe with USB 2.0 signal, SIM support, DC 12V input, and a wide motherboard operating-temperature range support industrial data collection, protocol conversion, and remote edge connectivity.
Lightweight Virtualized Network Node
DDR5 memory, dual M.2 storage, and six independent 2.5GbE controllers suit network labs, lightweight virtual routers, test environments, and compact edge services within the platform's 16GB memory limit.
Embedded Edge Terminal
The 120 x 120 mm Nano-ITX design, DP and HD outputs, SATA storage, onboard headers, and configurable automatic power-on support compact embedded terminals, monitoring systems, and unattended edge devices.
