Lightweight Network Security and VPN Gateway
Designed for small offices and branch offices, it functions as both a firewall and VPN gateway. With four network ports, it enables easy segmentation of network zones, while its wireless connectivity can serve as a redundant backup link.
Industrial Internet of Things (IIoT) Gateway
An ideal hub for data collection and protocol conversion in industrial environments. Its fanless design prevents dust ingress, ensuring durability and reliability for field deployment in machine tools, power distribution cabinets, and other harsh locations. Devices connect through wired networks, with optional cellular connectivity to transmit data back to the cloud.
Smart Retail and Digital Signage Media Player
With ultra-quiet operation, it is perfectly suited for noise-sensitive environments such as shopping malls and showrooms. It serves as the central controller for high-definition digital signage while also managing network connectivity.
| Processor | Product Collection | Intel Celeron Processor N Series | |
| Sockets Supported | FCBGA1338 | ||
| Memory specifications | Memory Type | DDR4 SO-DIMM | |
| Maximum Capacity | 16GB | ||
| Maximum Frequency | 2933 MHz | ||
| Storage specifications | SATA | 1*SATA 3.0 (6Gb/s) | |
| M.2 | 1*M.2 Key-M 2280 (PCIe Gen3 x2 rate) | ||

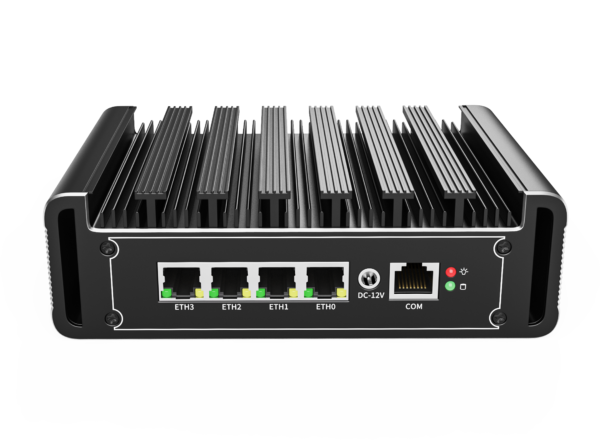

| Interface | Front Panel | Network | 4*RJ45 LAN |
| Console | 1*RJ45 COM | ||
| Power | 1*Jack DC_IN | ||

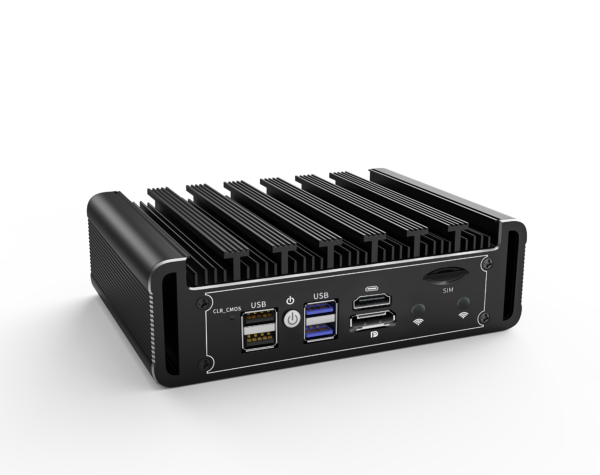

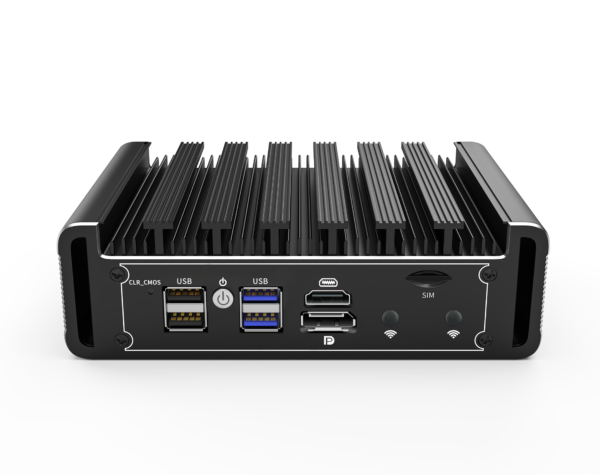

| Back Panel | USB | 2*USB-A 3.0/2*USB-A 2.0 | |
| Display | 1*DP/1*HD | ||
| SIM | 1*SIM Card slot | ||
| Antenna hole | 2*Reserved | ||
| Extension interface | mPCIe | 1*mPCIe | |
| Cooling Method | Passive Cooling, Fanless (Need air flow) | ||
| System Specifications | Chassis Size | 178*126*55 (mm) | |
| Equipment Weight | Equipment Weight 1.15 KG; Package Weight 1.85 KG (including accessories) | ||
| Power Mode | DC | 12V 4A or Higher | |
| Work Environment | Temperature | 0~50℃ | |
| Humidity | 5%~90% (Relative humidity, no condensation) | ||
