Current Alternatives
G48S-1264NP-4L is temporarily unavailable. The following complete systems cover different upgrade paths rather than serving as identical drop-in replacements. Compare chassis size, LAN type, storage, expansion, and cooling requirements before selecting a model.
H30W-1264NP-4L5G
A compact fanless four-port platform with enhanced 4G/5G expansion for remote and mobile edge deployments.
- Intel N100 or N150 platform
- 4 x Intel 2.5GbE RJ45
- SATA + M.2 storage
- mPCIe, M.2 Key-B and dual SIM
Availability: Selected configurations available.
View H30W-1264NP-4L5GG31S-1264NP-6L
A larger fanless appliance for customers who need six copper LAN ports and additional M.2 storage.
- Intel N150 or Core i3-N300
- 6 x Intel I226V 2.5GbE RJ45
- 1 x SATA + 2 x M.2 Key-M
- 178 x 126 x 55 mm fanless chassis
Availability: Selected configurations available.
View G31S-1264NP-6LH31F-1264-SFP
A specialized active-cooled option for deployments that specifically require 10Gb SFP+ fiber uplinks.
- Intel N150 or Core i3-N300ES
- 3 x 2.5GbE RJ45 + 2 x 10Gb SFP+
- M.2 storage and cellular expansion
- Active cooling for sustained workloads
Availability: Selected configurations available.
View H31F-1264-SFPQuick Specs
Specifications

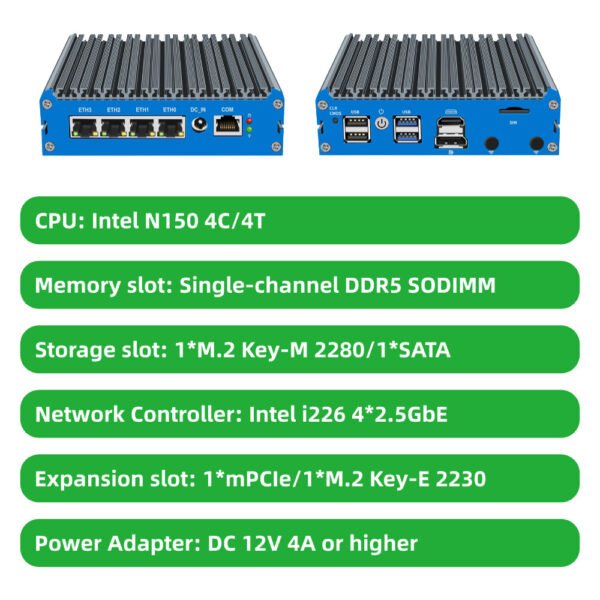

| Product Model | BKHD G48S-1264NP-4L |
|---|---|
| Product Type | Compact fanless industrial network appliance |
| Processor | Integrated Intel N150, FCBGA1264 |
| Memory | 1 x DDR5 SO-DIMM, up to 16GB, up to 4800 MT/s |
| SATA Storage | 1 x SATA 3.0, 6Gb/s |
| M.2 Storage | 1 x M.2 Key-M 2280 |
| Ethernet | 4 x RJ45 2.5GbE |
| Network Controllers | 4 x Intel I226V |
| mPCIe Expansion | 1 x mPCIe with PCIe and USB 2.0 signals |
| Wireless Expansion | 1 x M.2 Key-E 2230 with CNVi support |
| SIM and Antennas | 1 x SIM card slot and 2 x reserved antenna openings |
| Graphics | Intel UHD Graphics integrated in the processor |
| Display Outputs | 1 x DP, 1 x HD |
| USB | 2 x USB-A 3.0 and 2 x USB-A 2.0 |
| Console | 1 x RJ45 COM |
| Cooling | Passive cooling, fanless; adequate airflow required |
| Chassis Size | 134 x 125 x 40 mm |
| Weight | Equipment: 0.65 kg; package including accessories: 1.25 kg |
| Power Input | DC 12V, 4A or higher, 5.5/2.5 mm jack |
| Operating Temperature | 0°C to 50°C |
| Operating Humidity | 5% to 90% relative humidity, non-condensing |
Specifications may vary by production batch and final configuration. Wireless, cellular, storage, operating-system, and peripheral compatibility depend on the selected module, driver, antennas, and software configuration. Fanless systems require suitable installation airflow and ambient conditions.
Typical Applications
Firewall and Software Router
Four Intel I226V 2.5GbE ports support compact multi-WAN routers, firewalls, VPN gateways, network segmentation, and branch-office security appliances.
IoT Edge Gateway
mPCIe, M.2 Key-E, SIM support, RJ45 COM, and DC power provide flexible integration options for remote connectivity, edge data collection, and gateway deployments.
Industrial Control and Monitoring
The durable fanless enclosure, serial console, multiple LAN ports, and solid-state storage options suit equipment monitoring, protocol services, and light industrial installations.
Embedded Network Terminal
Low-power Intel N-series computing, dual display outputs, hybrid storage, and silent operation support embedded terminals, network management nodes, and unattended edge systems.
Downloads & Support
Important: before updating firmware, verify the processor version, motherboard model, PCB marking, hardware revision, and current BIOS version. Use only a BIOS file confirmed for the exact hardware. Installing incompatible firmware may prevent the system from booting.
