Quick Specs
Product Overview Video

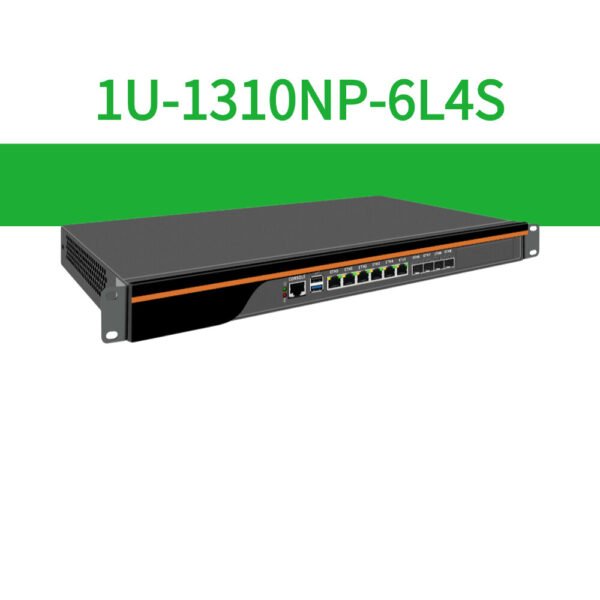

Watch a product overview of the 1U-1310NP-6L4S rackmount network security platform, featuring Intel Atom C Series processing, 6 × RJ45 LAN, 4 × 10G SFP+ optical ports, DDR4 memory, M.2 and SATA storage, PCIe expansion, RJ45 COM, active cooling, and 1U rackmount deployment for cybersecurity, edge IoT gateways, virtualization platforms, and network server applications.
Watch on YouTubeSpecifications

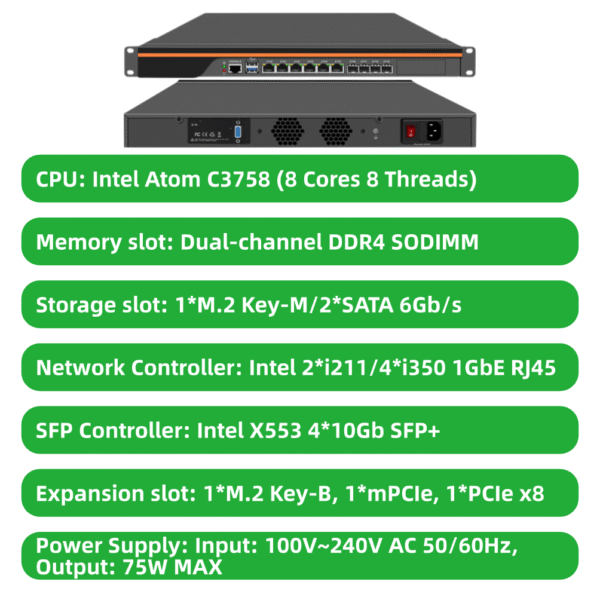

| Product Model | 1U-1310NP-6L4S |
|---|---|
| Processor Collection | Intel Atom Processor C Series |
| Socket | FCBGA1310 |
| Memory Type | DDR4 SODIMM |
| Maximum Memory Capacity | 64GB |
| Maximum Memory Frequency | 2400 MT/s |
| SATA | 2 × SATA 6Gb/s |
| M.2 Storage | 1 × M.2 Key-M 2280 SSD |
| Ethernet | 6 × RJ45 LAN, 4 × 10Gb SFP+ |
| Network Controller | 4 × Intel I350 optional ByPass, 2 × Intel I211, 4 × Intel X553 |
| Front Panel I/O | 1 × USB-A 3.0, 1 × USB-A 2.0, 6 × RJ45 LAN, 4 × SFP+, 1 × RJ45 COM, 1 × PCIe Expansion Baffle |
| Back Panel I/O | 1 × VGA, 4 × Reserved Antenna Holes, 1 × AC Socket |
| Console | 1 × RJ45 COM |
| Display Output | 1 × VGA |
| Display Chip | Based on onboard ASPEED AST2400 chip |
| PCIe Expansion | 1 × PCIe x8, PCIe Gen3 x4 rate |
| M.2 Key-B | 1 × M.2 Key-B 3052, USB 3.0 signal |
| mPCIe | 1 × mPCIe, PCIe / USB signal |
| Cooling Method | Active Cooling, 1 × CPU Fan + 2 × Chassis Fan |
| Chassis Size | 440 × 255 × 45 mm |
| Motherboard Size | 280 × 209 mm |
| Weight | Equipment Weight: 3.80 KG; Package Weight: 4.50 KG including accessories |
| Power Mode | Input: 100V–240V AC 50/60Hz; Output: 75W MAX |
| Operating Temperature | 0°C to 50°C |
| Operating Humidity | 5% to 90% relative humidity, non-condensing |
Typical Applications
Cybersecurity
Six RJ45 LAN ports, four 10G SFP+ optical ports, Intel Atom C Series processing, and optional hardware bypass support firewall appliances, UTM systems, VPN gateways, SD-WAN platforms, routing, and network isolation.
Edge IoT Gateway
Hybrid copper and 10G fiber networking, M.2 Key-B 3052, mPCIe, RJ45 COM, VGA, and active cooling make it suitable for edge IoT gateways, remote communication nodes, industrial data transfer, and high-bandwidth edge access.
Small Virtualization Platform
Up to 64GB DDR4 memory, M.2 SSD, dual SATA, PCIe Gen3 x4 expansion, and 10G SFP+ uplinks provide a strong hardware base for virtualized network functions, lab routers, and compact edge services.
Network Server
Standard 1U rackmount chassis, 6 × RJ45 LAN, 4 × SFP+, active cooling, PCIe expansion, M.2 and SATA storage support network servers, storage gateways, traffic management, and enterprise edge infrastructure.
