Quick Specs
Product Overview Video

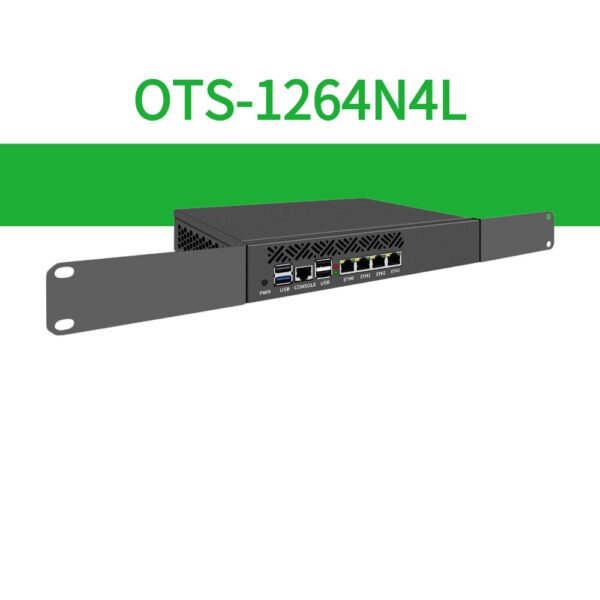

Watch a quick overview of the OTS-1264N4L compact network appliance, including its four 2.5GbE LAN ports, Intel N-Series platform, DDR5 memory, PCIe expansion, mPCIe support, and deployment-oriented design for firewall, gateway, edge computing, and embedded applications.
Watch on YouTubeSpecifications
| Product Model | OTS-1264N4L |
|---|---|
| Processor Collection | Intel Processor N-Series |
| Socket | FCBGA1264 |
| Memory Type | DDR5 SO-DIMM |
| Maximum Memory Capacity | 16GB |
| Maximum Memory Frequency | 4800 MT/s |
| Storage | 1 × M.2 Key-M 2280, PCIe Gen3 x1 / SATA |
| PCIe Expansion | 1 × PCIe x8 slot, x4 rate |
| mPCIe Expansion | 1 × mPCIe, USB 2.0 signal |
| Ethernet | 4 × RJ45 LAN, 2.5GbE |
| Network Controller | 4 × Intel I226V |
| Front Panel USB | 1 × USB-A 3.0, 3 × USB-A 2.0 |
| Console | 1 × RJ45 COM |
| Expanded Interface | Reserved |
| SIM | 1 × SIM Card Slot |
| Display | 1 × HD, 1 × VGA |
| Power Connector | 1 × Jack DC_IN |
| Cooling Method | Active Cooling, 1 × CPU Fan |
| Chassis Size | 240 × 185 × 43 mm |
| Weight | Equipment Weight: 1.95 KG; Package Weight: 2.55 KG including accessories |
| Power Mode | DC 12V_7A or Higher |
| Operating Temperature | 0°C to 50°C |
| Operating Humidity | 5% to 90% relative humidity, non-condensing |
Typical Applications
Network Security Firewalls
Ideal for firewall, router, VPN, and network security appliances requiring four high-speed 2.5GbE LAN ports.
IoT Gateways
Supports industrial IoT gateway deployments with RJ45 console, SIM support, mPCIe expansion, and compact embedded design.
Multimedia & Surveillance
Suitable for video monitoring, edge display, and multimedia network systems with VGA/HD display output and stable wired networking.
Development Testing
Provides PCIe, mPCIe, serial console, and storage interfaces for network appliance testing, embedded development, and lab validation.
