Quick Specs
Processor Platform11th Gen Intel Tiger Lake
Network4 x Intel I226V 2.5GbE
CoolingActive smart chassis fan
MemoryDDR4 SO-DIMM, up to 64GB
Storage1 x SATA + 1 x M.2 Key-M 2280
Chassis178 x 126 x 56 mm
Specifications
| Product Model | BKHD G31F-1449NP-4L |
|---|---|
| Processor Platform | 11th Gen Intel Tiger Lake, FCBGA1449 |
| Memory | DDR4 SO-DIMM, up to 64GB, up to 3200 MT/s |
| Storage | 1 x SATA 6Gb/s; 1 x M.2 Key-M 2280 |
| Ethernet | 4 x RJ45 2.5GbE with Intel I226V controllers |

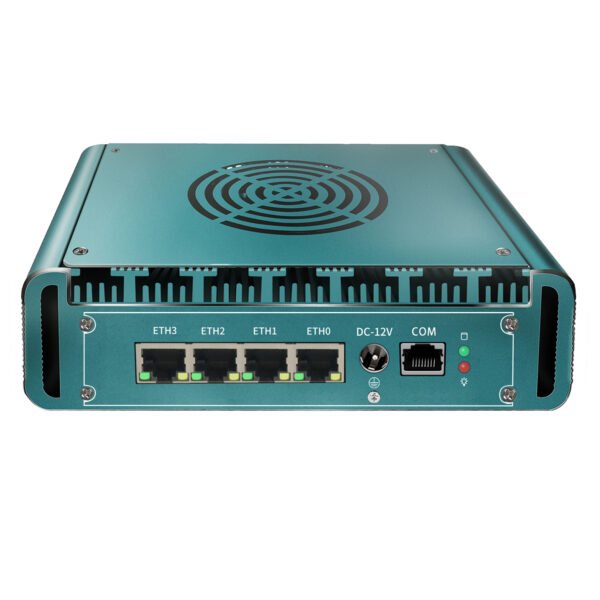

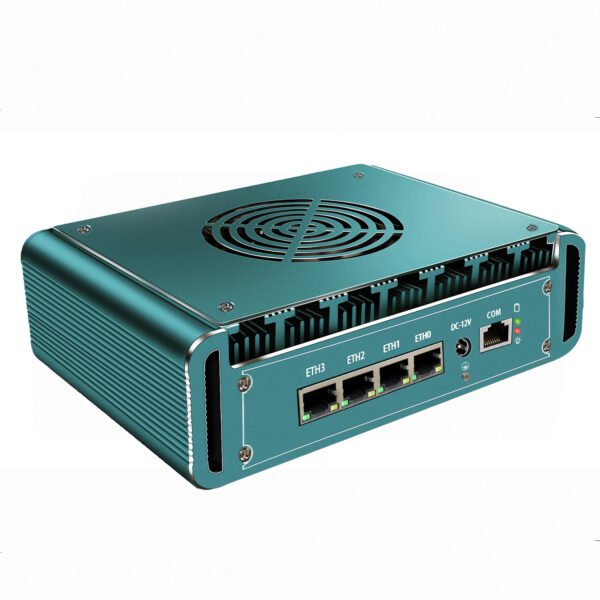

| Front I/O | 4 x RJ45 LAN; 1 x RJ45 RS232 console; 1 x DC input |

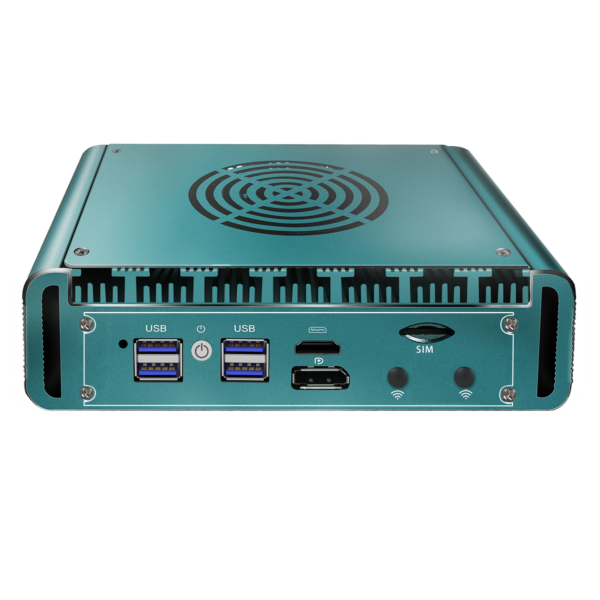

| Rear I/O | Power/restart button; 4 x USB-A 3.0; 1 x DP; 1 x HD display output; 2 x reserved antenna openings |
| Expansion | 1 x mPCIe |
| Cooling | Active cooling with 1 smart chassis fan |
| Chassis Size | 178 x 126 x 56 mm |
| Equipment Weight | 1.25 kg |
| Power Input | 12V DC; 4A for Celeron, 7A for Pentium, 10A for Core processors, or higher |
| Operating Temperature | 0-50°C |
| Operating Humidity | 5%-90% relative humidity, non-condensing |
Typical Applications
Firewall and Gateway
Four 2.5GbE interfaces allow separate physical connections for WAN, LAN, and segmented networks in a compact firewall or gateway setup.
Small Business Network Node
A desktop chassis, four LAN ports, and active cooling support organized network access for a small office or distributed site.
Industrial Network Edge
The RJ45 RS232 console, USB ports, and multiple LAN connections support local control and network-edge roles where the installation provides suitable ventilation.
Embedded Network Terminal
USB and display connections support on-site setup, local management, and embedded terminal deployments alongside the four-port network interface.
Downloads & Support
Data Sheet1449NP-12-4L platform specifications and the G31F-1449NP-4L system profile on page 6.
Product Manual1449NP-12-4L motherboard installation, connectors, and BIOS reference.
BIOS / FirmwareFind compatible firmware after checking the board model and hardware revision.
Driver DownloadFind available drivers in the BKHD driver download center.
