Quick Specs
Specifications

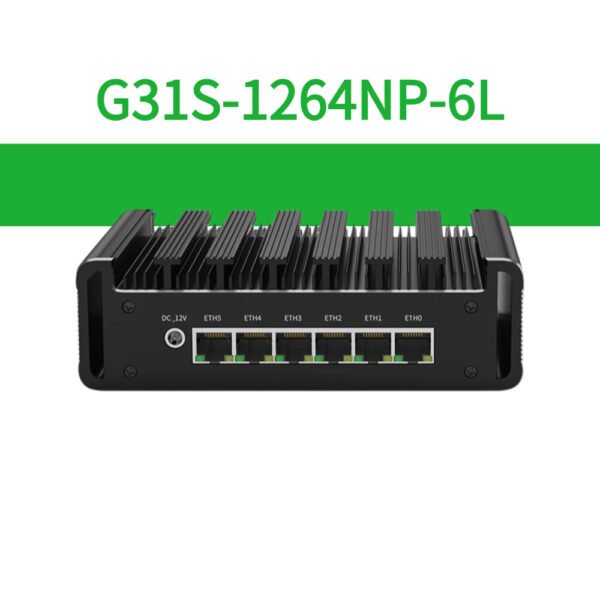

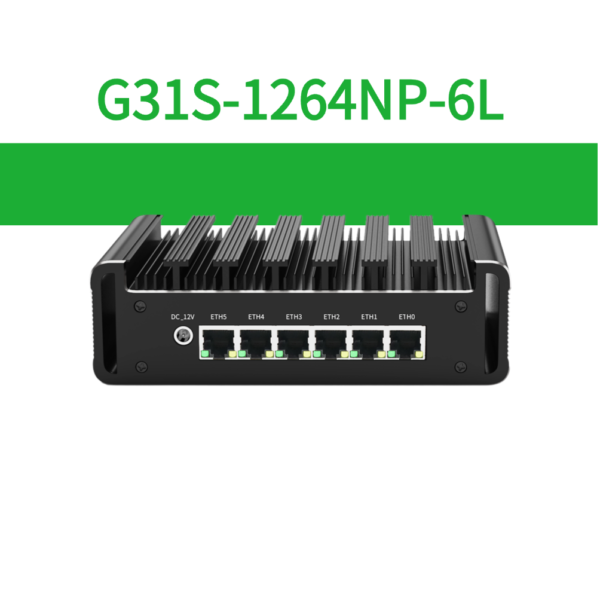

| Product Model | G31S-1264NP-6L |
|---|---|
| Processor Collection | Intel Processor N-series |
| Socket | FCBGA1264 |
| Memory Type | DDR5 SO-DIMM |
| Maximum Memory Capacity | 16GB |
| Maximum Memory Frequency | 4800 MT/s |
| SATA | 1 × SATA 3.0, 6Gb/s |
| M.2 Storage | 2 × M.2 Key-M 2280, PCIe x1 |
| Ethernet | 6 × 2.5GbE RJ45 LAN |
| Network Controller | 6 × Intel I226V |

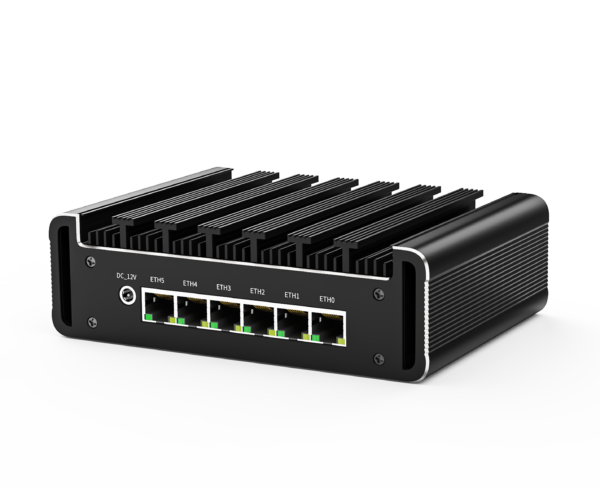

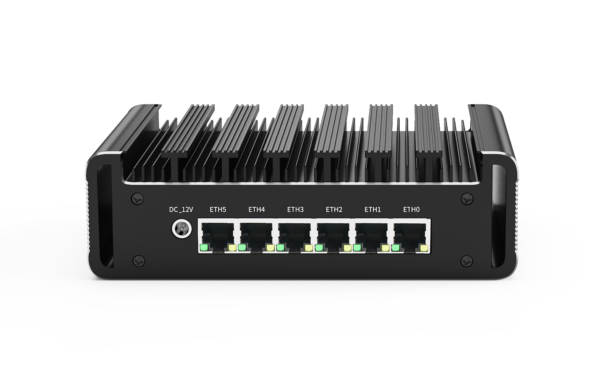

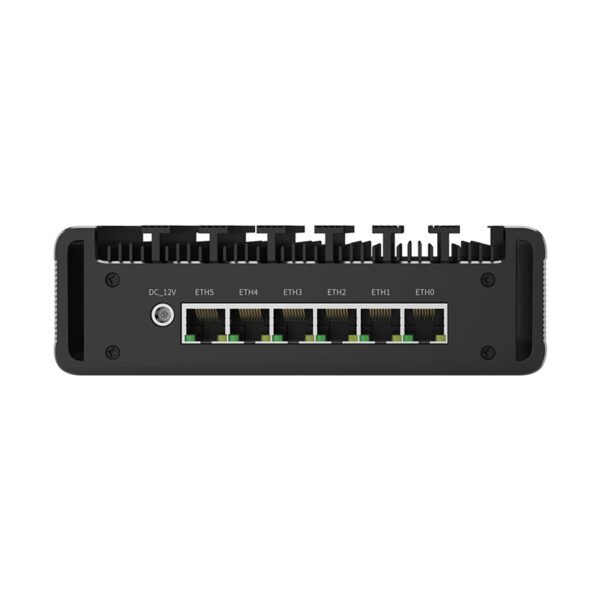

| Front Panel I/O | 6 × RJ45 LAN, 1 × Jack DC_IN |

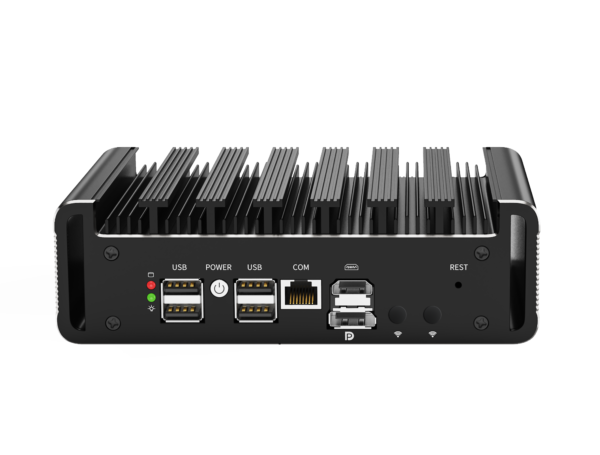

| Back Panel I/O | 4 × USB-A 2.0, 1 × Power Button, 1 × DP, 1 × HD, 1 × RJ45 COM, 2 × Reserved Antenna Holes |
| Display Output | 1 × DP, 1 × HD |
| Graphics | Intel UHD Graphics |
| Console | 1 × RJ45 COM, RS232 |
| Expansion Interface | 1 × mPCIe, USB 2.0 Signal |
| SIM | 1 × SIM Card Slot |
| USB Expansion | 1 × F_USB 2.0 Header |
| GPIO | 1 × JGPIO Header |

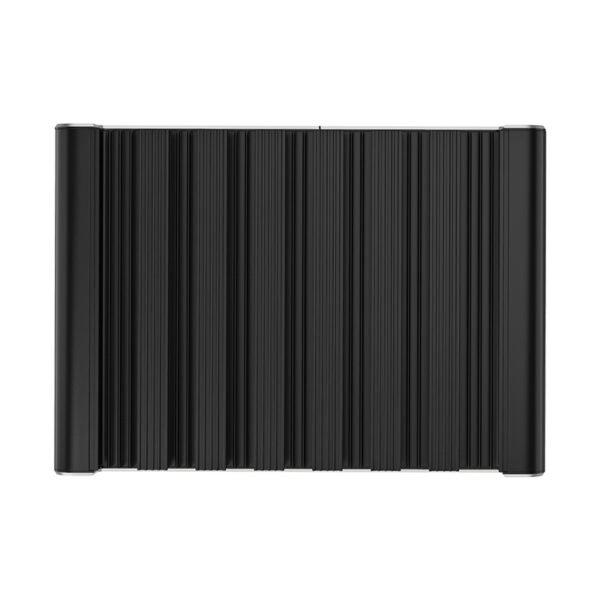

| Cooling Method | Passive Cooling, Fanless; airflow required |
| Chassis Size | 178 × 126 × 55 mm |
| Motherboard Size | 120 × 120 mm |
| Weight | Equipment Weight: 1.15 KG; Package Weight: 1.85 KG including accessories |
| Power Mode | DC 12V 4A or higher |
| Operating Temperature | 0°C to 50°C |
| Operating Humidity | 5% to 90% relative humidity, non-condensing |
Typical Applications
Network Application
Six Intel I226V 2.5GbE LAN ports, compact fanless chassis, and low-power Intel N-series computing make it suitable for routers, firewalls, VPN gateways, traffic forwarding, network segmentation, and multi-WAN deployments.
Industrial IoT Gateway
mPCIe, SIM support, RJ45 COM, JGPIO, F_USB, SATA, dual M.2 storage, and DC 12V input make it suitable for industrial IoT gateways, remote communication, data acquisition, and edge connectivity.
Virtualized Nodes
DDR5 memory, two M.2 Key-M storage slots, SATA 3.0, six 2.5GbE ports, and fanless metal enclosure make it suitable for lightweight virtualization, lab routers, edge services, and distributed network nodes.
Lightweight Server
Compact Nano-ITX hardware, dual M.2 storage, SATA expansion, 6 × 2.5GbE LAN, and low-noise passive cooling make it suitable for small server tasks, local network services, edge storage, and branch office applications.
