Quick Specs
Product Overview Video

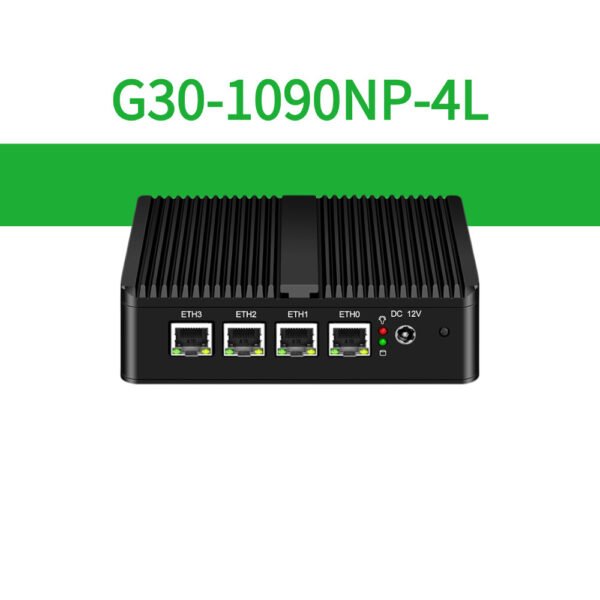

Watch a quick overview of the G30-1090NP-4L fanless embedded network appliance, including its compact metal chassis, four 2.5GbE LAN ports, Intel Gemini Lake platform, DDR4 memory, mSATA storage, mPCIe expansion, and deployment-ready design for firewall, IoT gateway, industrial control, and embedded applications.
Watch on YouTubeSpecifications
| Product Model | G30-1090NP-4L |
|---|---|
| Processor Platform | Intel Gemini Lake / Gemini Lake-R |
| Socket | FCBGA1090 |
| Memory Type | DDR4 SO-DIMM |
| Maximum Memory Capacity | 8GB |
| Maximum Memory Frequency | 2400 MHz |
| SATA | 1 × SATA 2.0, 3Gb/s |
| mSATA | 1 × mSATA |
| Ethernet | 4 × RJ45, 2.5GbE |
| Network Controller | 4 × Intel I226V |
| Front Panel | 4 × RJ45 LAN, 1 × Jack DC_IN |
| Back Panel | 1 × Start or Restart Button, 2 × USB-A 3.0, 1 × VGA, 1 × HD, 2 × Reserved Antenna Holes |
| Expansion Interface | 1 × mPCIe |
| Cellular Support | 1 × SIM Card Slot |
| Display | 1 × VGA, 1 × HD |
| Graphics | Intel HD Graphics |
| Cooling Method | Passive Cooling, Fanless; airflow required |
| Chassis Size | 136 × 126 × 40 mm |
| Weight | Equipment Weight: 0.65 KG; Package Weight: 1.25 KG including accessories |
| Power Mode | DC 12V 4A or Higher |
| Operating Temperature | 0°C to 50°C |
| Operating Humidity | 5% to 90% relative humidity, non-condensing |
Typical Applications
Cybersecurity
Suitable for firewall, VPN, router, and network security deployments requiring four 2.5GbE LAN ports in a compact fanless system.
IoT Edge Gateway
Designed for IoT edge gateway scenarios with stable wired networking, mPCIe wireless expansion, SIM support, and low-power operation.
Industrial Control Automation
Supports industrial control, data acquisition, device communication, and field-side edge processing in space-sensitive environments.
Embedded Terminal
Ultra-compact metal chassis and fanless design make it suitable for embedded terminals, lightweight virtualization, and edge network devices.
