Quick Specs
Product Overview Video

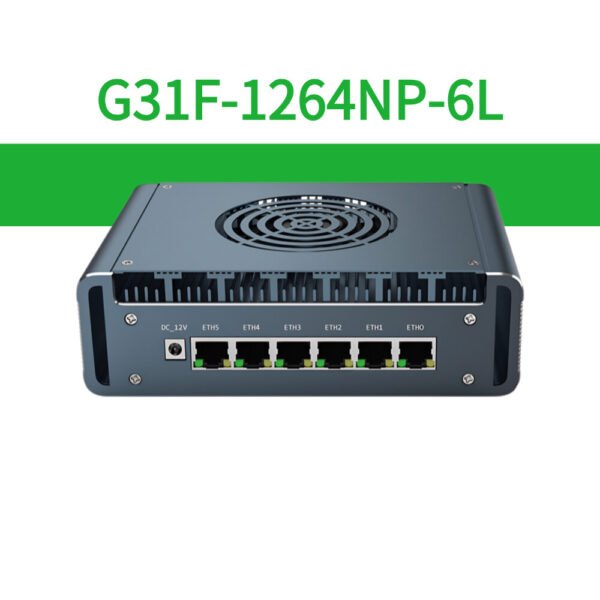

Watch a product overview of the G31F-1264NP-6L compact embedded network appliance, featuring Intel Processor N-series performance, 6 × 2.5GbE LAN, DDR5 memory, dual M.2 storage, SATA 3.0, RJ45 COM, DP+HD display output, mPCIe expansion, SIM support, and intelligent active cooling for network applications, industrial IoT gateways, virtualized nodes, and lightweight server deployments.
Watch on YouTubeSpecifications
| Product Model | G31F-1264NP-6L |
|---|---|
| Processor Collection | Intel Processor N-series |
| Socket | FCBGA1264 |
| Memory Type | DDR5 SO-DIMM |
| Maximum Memory Capacity | 16GB |
| Maximum Memory Frequency | 4800 MT/s |
| SATA | 1 × SATA 3.0, 6Gb/s |
| M.2 Storage | 2 × M.2 Key-M 2280, PCIe x1 |
| Ethernet | 6 × 2.5GbE RJ45 LAN |
| Network Controller | 6 × Intel I226V |

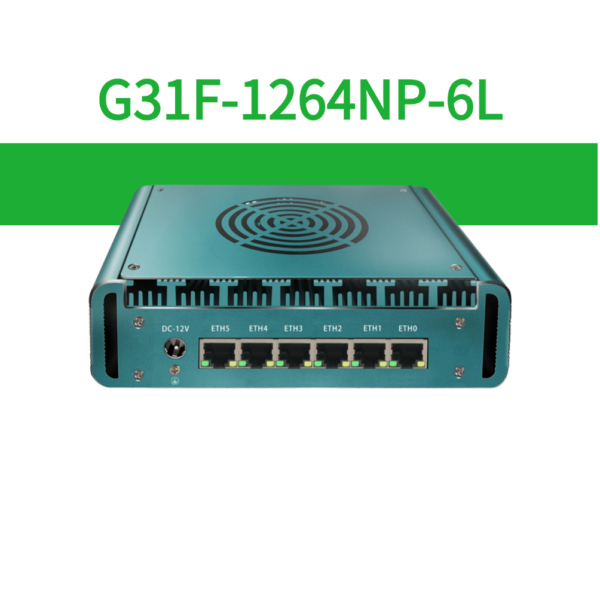

| Front Panel I/O | 6 × RJ45 LAN, 1 × Jack DC_IN |

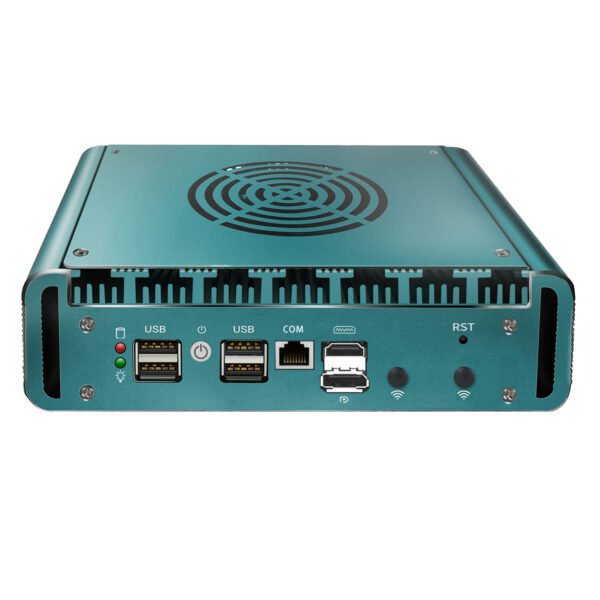

| Back Panel I/O | 4 × USB-A 2.0, 1 × Power Button, 1 × DP, 1 × HD, 1 × RJ45 COM, 2 × Reserved Antenna Holes |
| Display Output | 1 × DP, 1 × HD |
| Graphics | Intel UHD Graphics |
| Console | 1 × RJ45 COM, RS232 |
| Expansion Interface | 1 × mPCIe, USB 2.0 Signal |
| SIM | 1 × SIM Card Slot |
| USB Expansion | 1 × F_USB 2.0 Header |
| GPIO | 1 × JGPIO Header |
| Cooling Method | Active Cooling, 1 × Intelligent TPM Fan |
| Chassis Size | 178 × 126 × 56 mm |
| Motherboard Size | 120 × 120 mm |
| Weight | Equipment Weight: 1.25 KG; Package Weight: 1.95 KG including accessories |
| Power Mode | DC 12V 4A or higher |
| Operating Temperature | 0°C to 50°C |
| Operating Humidity | 5% to 90% relative humidity, non-condensing |
Typical Applications
Network Application
Six Intel I226V 2.5GbE LAN ports, compact chassis, and low-power Intel N-series computing make it suitable for routers, firewalls, VPN gateways, traffic forwarding, network segmentation, and multi-WAN deployments.
Industrial IoT Gateway
mPCIe, SIM support, RJ45 COM, JGPIO, F_USB, SATA, dual M.2 storage, and DC 12V input make it suitable for industrial IoT gateways, remote communication, data acquisition, and edge connectivity.
Virtualized Nodes
DDR5 memory, two M.2 Key-M storage slots, SATA 3.0, six 2.5GbE ports, and active cooling make it suitable for lightweight virtualization, lab routers, edge services, and distributed network nodes.
Lightweight Server
Intelligent active cooling, dual M.2 NVMe storage, SATA expansion, 6 × 2.5GbE LAN, and compact Nano-ITX hardware make it suitable for small server tasks, local network services, edge storage, and branch office applications.
