Current Alternatives
1264NP-12-4L-MB is temporarily unavailable. Customers who need a current motherboard should consider the 1264NP-12-6L first. Complete systems are listed separately for customers who prefer a ready-to-deploy appliance. These products are not identical drop-in replacements.
1264NP-12-6L
A current Nano-ITX motherboard for customers who still need a bare-board platform with additional networking and storage.
- Product type: motherboard
- 6 x Intel I226V 2.5GbE RJ45
- 1 x SATA + 2 x M.2 Key-M
- 120 x 120 mm Nano-ITX
Availability: Current product; verify the required processor option.
View 1264NP-12-6L MotherboardG31S-1264NP-6L
A fanless complete appliance for customers who prefer a finished six-port system instead of integrating a motherboard.
- Product type: complete system
- 6 x Intel I226V 2.5GbE RJ45
- 1 x SATA + 2 x M.2 Key-M
- Fanless metal chassis
Availability: Selected configurations available.
View G31S-1264NP-6LH30W-1264NP-4L5G
A four-port complete system with enhanced 4G/5G expansion for remote, mobile, and cellular edge deployments.
- Product type: complete system
- 4 x Intel 2.5GbE RJ45
- SATA + M.2 storage
- mPCIe, M.2 Key-B and dual SIM
Availability: Selected configurations available.
View H30W-1264NP-4L5GQuick Specs
Specifications

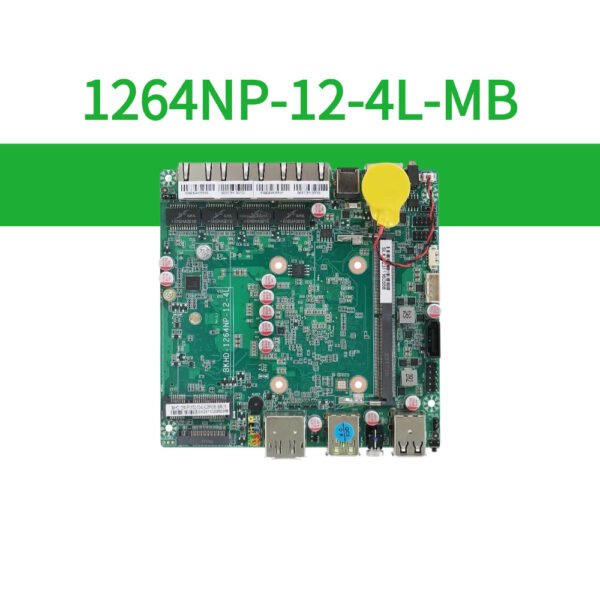

| Product Model | BKHD 1264NP-12-4L |
|---|---|
| Product Type | Nano-ITX industrial network motherboard |
| Processor Platform | Intel Processor N-series, integrated FCBGA1264 processor |
| Memory | 1 x DDR5 SO-DIMM, up to 16GB, up to 4800 MT/s |
| SATA Storage | 1 x SATA 3.0 data connector, 6Gb/s; 1 x onboard SATA power socket |
| M.2 Storage | 1 x M.2 Key-M 2280 |
| Ethernet | 4 x RJ45 2.5GbE |
| Network Controllers | 4 x Intel I226V |
| mPCIe Expansion | 1 x mPCIe with PCIe and USB 2.0 signals |
| Wireless Expansion | 1 x M.2 Key-E 2230 with CNVi support |
| SIM | 1 x onboard SIM card slot |
| Graphics | Intel UHD Graphics integrated in the processor |
| Display Outputs | 1 x DP, 1 x HD |
| External USB | 2 x USB-A 3.0 and 2 x USB-A 2.0 |
| External Serial | 1 x RJ45 COM, RS232 |
| Onboard Serial | 1 x COM header supporting selectable RS232 / RS485 |
| GPIO | 1 x 8-bit GPIO header |
| USB Header | 1 x onboard USB 2.0 header |
| Cooling Interface | 1 x 4-pin CPU fan header with PWM and tachometer support; system integrator must provide a suitable thermal solution |
| System Features | Hardware watchdog, configurable automatic power-on, Wake-on-LAN, PXE, Clear CMOS, and front-panel connections |
| Power Input | DC 12V through a 5.5/2.5 mm jack |
| Form Factor | Nano-ITX, 120 x 120 mm |
| Operating Temperature | -20°C to 55°C at motherboard level |
| Operating Humidity | 5% to 90% relative humidity, non-condensing |
Processor options, BIOS features, connector population, and supported functions may vary by hardware revision and production batch. Wireless, cellular, storage, display, operating-system, thermal, and peripheral compatibility depend on the final module, driver, chassis, and integration.
Typical Applications
The 1264NP-12-4L-MB is designed for compact network-security, routing, industrial IoT, and embedded edge systems that require four Intel 2.5GbE ports and flexible onboard expansion.
Firewall and Network Security
Four Intel I226V 2.5GbE interfaces support custom firewall appliances, secure gateways, traffic separation, VPN services, and network segmentation.
Software Router and Gateway
The Intel N-series platform, four independent LAN ports, DDR5 memory, and compact Nano-ITX form factor suit customized routers and multi-network gateways.
Industrial IoT Edge Gateway
mPCIe, M.2 Key-E, SIM, GPIO, RS232 / RS485, SATA, and DC 12V provide flexible integration for wireless communication, sensors, protocol conversion, and edge data collection.
Embedded Network System
The 120 x 120 mm board, automatic power-on, watchdog, serial interfaces, storage expansion, and wide motherboard-level temperature range support customized embedded equipment.
Downloads & Support
Important: before updating firmware, verify the processor version, motherboard model, PCB marking, hardware revision, and current BIOS version. Use only a BIOS file confirmed for the exact hardware. Installing incompatible firmware may prevent the motherboard from booting.
