Quick Specs
Specifications
| Product Model | 2U-C246-8L |
|---|---|
| Chipset | Intel C246 Chipset |
| Processor Socket | FCLGA1151 |
| Supported Processor Platform | Intel LGA1151 Socket Processors |
| Memory Type | DDR4 SO-DIMM |
| Maximum Memory Capacity | 64GB |
| Maximum Memory Frequency | 2666 MT/s |
| SATA | 2 × SATA 6Gb/s |
| M.2 Storage | 2 × M.2 Key-M 2280 SSD |
| Ethernet | 8 × 2.5GbE RJ45 LAN |
| Network Controller | 8 × Intel I226V |
| PCIe Expansion | 1 × PCIe x16, x8 rate; 1 × PCIe x8, x4 rate |
| M.2 Key-E | 1 × M.2 Key-E 2230, PCIe / USB Signal |
| M.2 Key-B | 1 × M.2 Key-B 3052, USB Signal |
| mPCIe | 1 × mPCIe, PCIe / USB Signal |

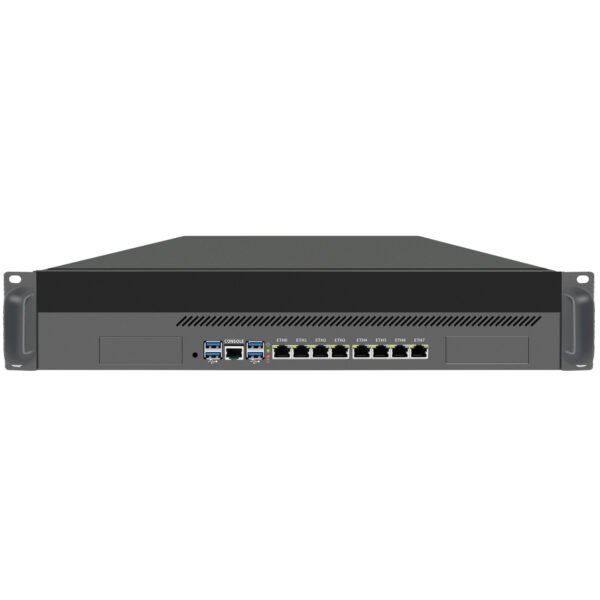

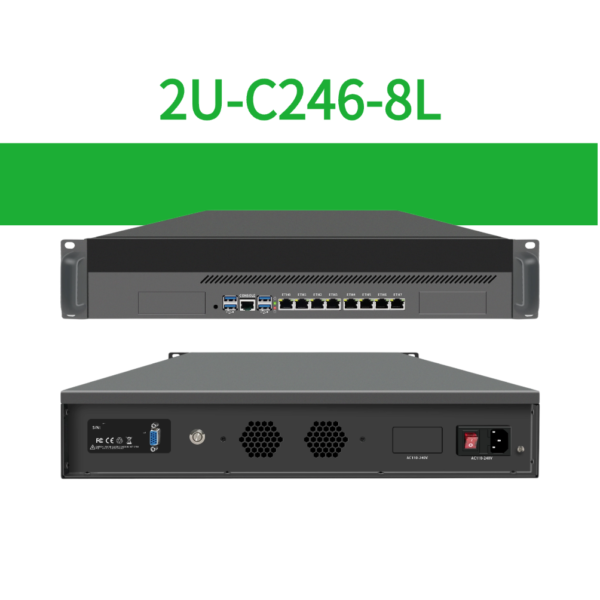

| Front Panel I/O | 8 × RJ45 LAN, 4 × USB-A 3.0, 1 × RJ45 COM, 2 × PCIe Expansion Baffles |

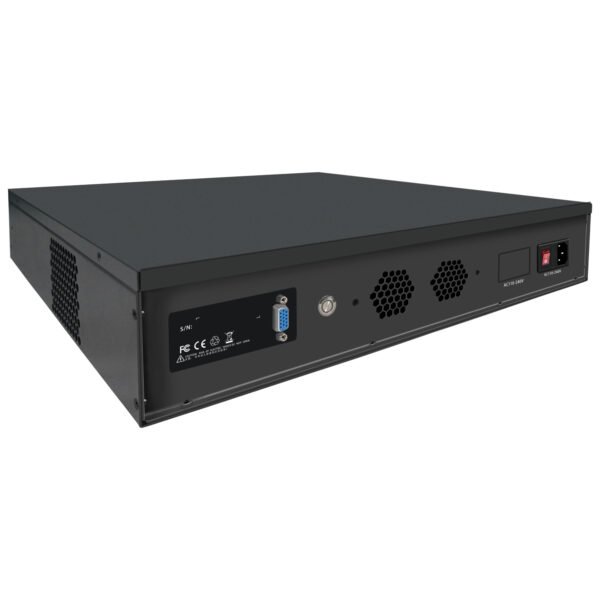

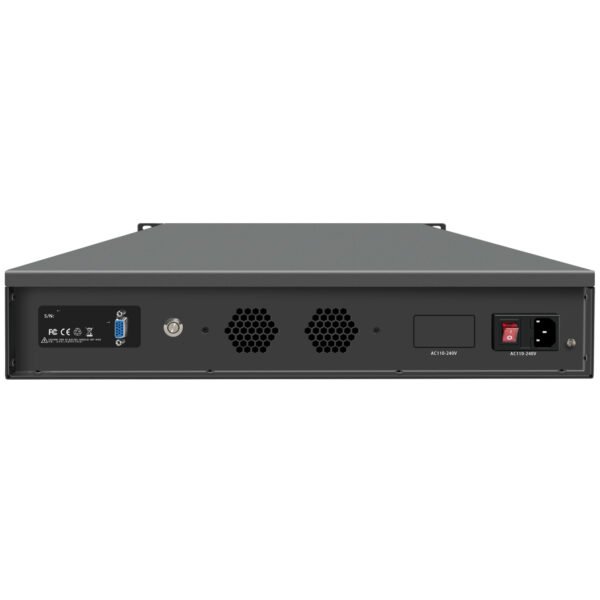

| Back Panel I/O | 1 × VGA / 1 × HD Reserved Display, 1 × Power Button, 2 × Reserved Antenna Groups, 1 × AC Power Socket |
| Console | 1 × RJ45 COM RS232 |
| Display Output | 1 × VGA / 1 × HD Reserved |
| Graphics | Depends on the Processor Integrated Graphics |
| Onboard Storage I/O | 2 × SATA Data Connectors, 2 × SATA Power Sockets |
| Onboard Headers | 1 × F_PANEL, 2 × JCOM, 2 × F_USB 2.0, 1 × TPM, 1 × LPT, 1 × LPC, 1 × JVGA, 1 × JHD |
| USB Expansion | 1 × USB-A 2.0 on motherboard; 2 × F_USB 2.0 headers |
| Fan Headers | 1 × CPU_FAN, 3 × SYS_FAN on motherboard |
| Cooling Method | Active Cooling, 1 × CPU Fan + 2 × Chassis Fans |
| Chassis Size | 440 × 420 × 90 mm |
| Motherboard Size | 287 × 190 mm |
| Weight | Equipment Weight: 6.40 KG; Package Weight: 8.50 KG including accessories |
| Power Mode | Input: 200V–240V AC 50/60Hz; Output: 200W MAX |
| Operating Temperature | 0°C to 50°C |
| Operating Humidity | 5% to 90% relative humidity, non-condensing |
Typical Applications
Network Security Appliance
Eight Intel I226V 2.5GbE RJ45 LAN ports, PCIe expansion, RJ45 console, 2U rackmount chassis, and active cooling make it suitable for firewall appliances, VPN gateways, SD-WAN systems, UTM platforms, routing, VLAN, LACP, traffic forwarding, and enterprise network segmentation.
Enterprise Gateway Platform
Intel C246 chipset, FCLGA1151 processor support, up to 64GB DDR4 memory, dual M.2 SSD, SATA storage, 8 × 2.5GbE ports, and 2U rackmount construction provide a stable platform for enterprise gateways, branch network devices, multi-network access, and server room deployments.
Industrial Automation Control
COM, TPM, LPT, LPC, USB expansion, M.2 Key-E, M.2 Key-B, mPCIe, multiple fan headers, 2U chassis space, and active cooling make it suitable for industrial gateways, machine communication, automation control, production monitoring, and industrial network security applications.
Edge Computing Platform
High-speed 2.5GbE networking, dual M.2 SSD storage, SATA backup storage, PCIe expansion, 2U thermal capacity, and enterprise-class AC power make it suitable for edge computing, local data processing, virtualized network services, enterprise-class storage, data center edge nodes, and OEM/ODM rackmount platforms.
