Current Alternatives
These alternatives serve different requirements and are not direct drop-in replacements for the 1264L-6-BAY NAS. Confirm chassis, processor, memory, storage, network, power, and operating-system requirements before ordering.
C612NP-8-BAY NAS
An eight-bay Xeon storage server for customers who need a complete system with greater drive capacity, memory, networking, and PCIe expansion.
- Intel Xeon E5 v4 platform
- 8 hot-swappable SATA bays
- Up to 64GB DDR4 memory
- 6 RJ45 ports and PCIe x16 expansion
B760-NAS-17-MB
A Mini-ITX motherboard platform for building a higher-performance NAS with a compatible chassis, desktop processor, memory, power supply, and storage.
- Intel 12th/13th/14th Gen LGA1700
- Up to 96GB dual-channel DDR5
- 8 SATA and 2 M.2 slots
- 4 x 2.5GbE and PCIe Gen4 x4
Z690-MATX
A Micro-ATX motherboard platform for custom NAS and server builds requiring more memory, M.2 storage, and PCIe expansion than the original system.
- Intel 12th/13th Gen LGA1700
- Up to 128GB DDR4 memory
- 8 SATA and 4 M.2 slots
- 4 x 2.5GbE and multiple PCIe slots
Quick Specs
Specifications

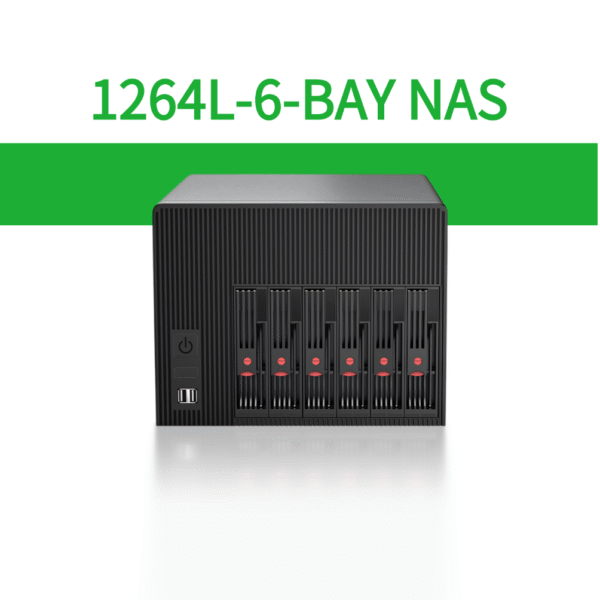

| Product Model | BKHD 1264L-6-BAY NAS |
|---|---|
| Processor | Integrated Intel N150 processor |
| Processor Package | FCBGA1264, soldered processor |
| Memory | 1 x DDR5 SO-DIMM, up to 16GB, up to 4800 MT/s |
| Drive Bays | 6 x hot-swappable SATA drive bays |
| SATA Storage | Up to 6 x SATA 6Gb/s through an ASM1166 controller |
| M.2 Storage | 2 x M.2 Key-M 2280, each listed as PCIe Gen3 x1 |
| Ethernet | 1 x 10GbE RJ45 and 2 x 2.5GbE RJ45 |
| Network Controllers | 1 x Marvell AQC113 for 10GbE; 2 x Intel I226-V for 2.5GbE |
| PCIe Expansion | 1 x PCIe x8 physical slot operating at x4 rate |
| mPCIe Expansion | 1 x mPCIe slot using a USB 2.0 signal |
| Graphics | Intel UHD Graphics integrated in the processor |
| Display Outputs | 1 x HD, 1 x DisplayPort, and 1 x USB-C display-capable port as listed in the data sheet |
| Front Panel | 1 x power/restart button, 2 x USB-A 2.0, 6 x hot-swappable drive bays |
| Rear USB | 1 x USB-C, 1 x USB-A 3.0, and 2 x USB-A 2.0 |
| Rear I/O | 3 x RJ45 LAN, 1 x HD, 1 x DisplayPort, 1 x USB-C, 1 x USB-A 3.0, 2 x USB-A 2.0, and AC power input |
| Cooling | Active cooling: 1 x processor fan and 2 x chassis fans |
| Power Input | 100V-240V AC, 50-60Hz |
| System Features | Wake-on-LAN, PXE boot, watchdog, and configurable automatic power-on after power restoration |
| Chassis Size | 250 x 260 x 210 mm |
| Equipment Weight | 5.1kg system weight; 6.3kg package weight including accessories |
| Operating Temperature | 0°C to 50°C |
| Humidity | 5% to 90% relative humidity, non-condensing |
Memory, SSDs, hard drives, and operating-system software depend on the selected bundle. RAID, link aggregation, storage performance, and device compatibility depend on the installed drives, network equipment, operating system, and final configuration. Verify the fitted power-supply label and hardware revision for the production batch.
Typical Applications
Home and Small-Business NAS
Six hot-swappable bays, dual M.2 storage, 10GbE, and dual 2.5GbE support shared folders, personal cloud storage, media libraries, and team file access.
Backup and Archive Server
Use multiple drives for scheduled workstation backups, document archives, and off-site synchronization, with M.2 storage available for the system or software-defined cache.
Creative-Studio Storage
The 10GbE interface can serve high-throughput workstations while the two 2.5GbE ports provide additional paths for client, management, or backup traffic.
Edge and Surveillance Storage
The compact chassis, PCIe and mPCIe expansion, automatic power-on, multi-port networking, and six drive bays support lightweight edge services and appropriately sized surveillance-storage deployments.
Downloads & Support
Important: before updating the BIOS, verify that the file is specifically for the 1264L-NAS motherboard and confirm the processor, PCB marking, hardware revision, and current BIOS version. Installing incompatible firmware may prevent the system from booting.
