Quick Specs
Specifications

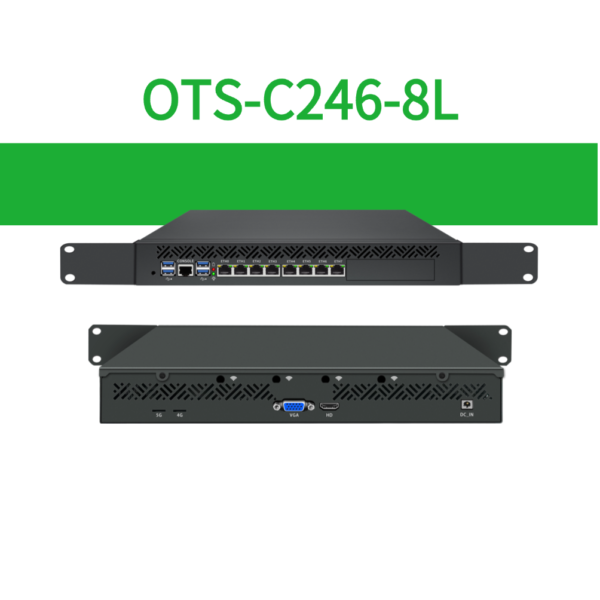

| Product Model | OTS-C246-8L |
|---|---|
| Chipset | Intel C246 Chipset |
| Processor Socket | FCLGA1151 |
| Supported Processor Platform | Intel LGA1151 Socket Processors |
| Memory Type | DDR4 SO-DIMM |
| Maximum Memory Capacity | 64GB |
| Maximum Memory Frequency | 2666 MT/s |
| SATA | 2 × SATA 6Gb/s |
| M.2 Storage | 2 × M.2 Key-M 2280 SSD |
| Ethernet | 8 × 2.5GbE RJ45 LAN |
| Network Controller | 8 × Intel I226V |
| PCIe Expansion | 1 × PCIe x8, x4 rate |
| M.2 Key-E | 1 × M.2 Key-E 2230, PCIe / USB Signal |
| M.2 Key-B | 1 × M.2 Key-B 3052, USB Signal |
| mPCIe | 1 × mPCIe, PCIe / USB Signal |

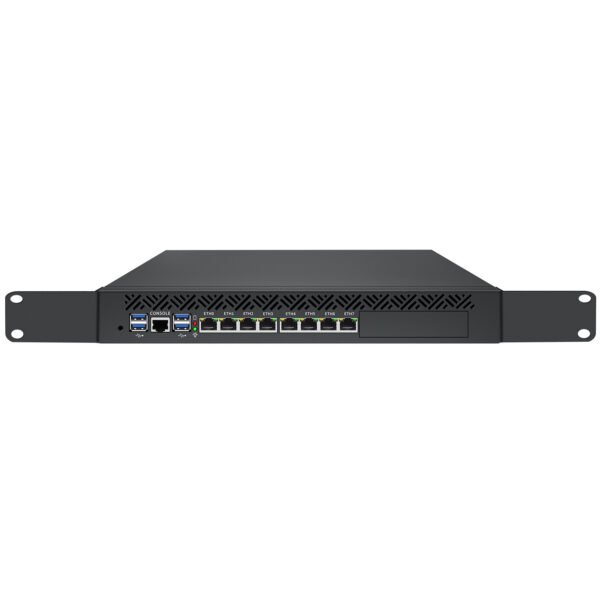

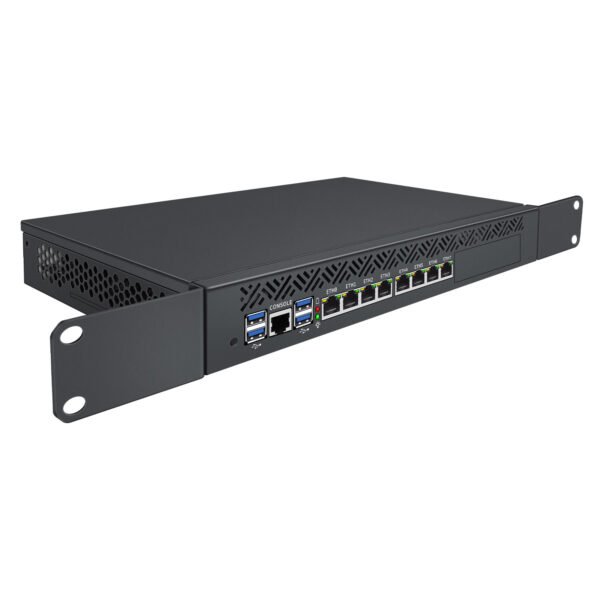

| Front Panel I/O | 8 × RJ45 LAN, 4 × USB-A 3.0, 1 × RJ45 COM, 1 × PCIe Expansion Baffle |

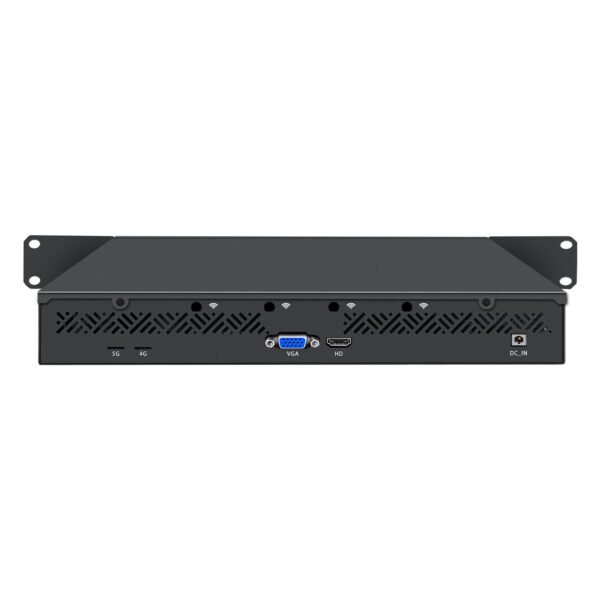

| Back Panel I/O | 1 × VGA, 1 × HD, 1 × Power Button, 2 × Reserved Antenna Groups, 1 × Jack DC 5.5/2.5mm |
| Console | 1 × RJ45 COM RS232 |
| Display Output | 1 × VGA, 1 × HD |
| Graphics | Depends on the Processor Integrated Graphics |
| Onboard Storage I/O | 2 × SATA Data Connectors, 2 × SATA Power Sockets |
| Onboard Headers | 1 × F_PANEL, 2 × JCOM, 2 × F_USB 2.0, 1 × TPM, 1 × LPT, 1 × LPC, 1 × JVGA, 1 × JHD |
| USB Expansion | 1 × USB-A 2.0 on motherboard; 2 × F_USB 2.0 headers |
| Fan Headers | 1 × CPU_FAN, 3 × SYS_FAN on motherboard |
| Cooling Method | Active Cooling, 1 × CPU Fan |
| Chassis Size | 330 × 200 × 45 mm |
| Motherboard Size | 287 × 190 mm |
| Weight | Equipment Weight: 1.90 KG; Package Weight: 2.45 KG including accessories |
| Power Mode | 1 × Jack DC 24V 8A or higher |
| Operating Temperature | 0°C to 50°C |
| Operating Humidity | 5% to 90% relative humidity, non-condensing |
Typical Applications
Network Security Appliance
Eight Intel I226V 2.5GbE RJ45 LAN ports, RJ45 console, PCIe expansion, compact chassis, and active cooling make it suitable for firewall appliances, VPN gateways, SD-WAN systems, UTM platforms, traffic forwarding, network segmentation, VLAN, and LACP deployments.
Multi-WAN Router Gateway
The 8-port 2.5GbE design supports multi-WAN access, LAN/WAN separation, failover, load balancing, routing, link aggregation, and branch network gateway deployments where stable multi-network connectivity is required.
Industrial Automation Control
COM, TPM, LPT, LPC, USB expansion, M.2 Key-E, M.2 Key-B, mPCIe, DC 24V input, and active cooling make it suitable for industrial gateways, machine communication, automation control, monitoring systems, and industrial network security applications.
Edge Computing Platform
Intel C246 platform, up to 64GB DDR4 memory, dual M.2 SSD, SATA storage, PCIe 3.0 x8 expansion, 8 × 2.5GbE LAN, and compact desktop form factor make it suitable for edge computing, local data processing, virtualized network services, and OEM/ODM embedded network systems.
