Specifications
| Product Model | H30-1168-2L2C |
|---|---|
| Processor Collection | 4th Gen Intel Core Processor |
| Socket | FCBGA1168 |
| Memory Type | DDR3L SO-DIMM 1.35V |
| Maximum Memory Capacity | 8GB |
| Maximum Memory Frequency | 1333 / 1600 MHz |
| SATA | 1 × SATA 3.0, 6Gb/s |
| mSATA | 1 × mSATA |
| Ethernet | 2 × 1GbE RJ45 LAN |
| Network Controller | 2 × Realtek 8111 |
| mPCIe Expansion | 1 × mPCIe |

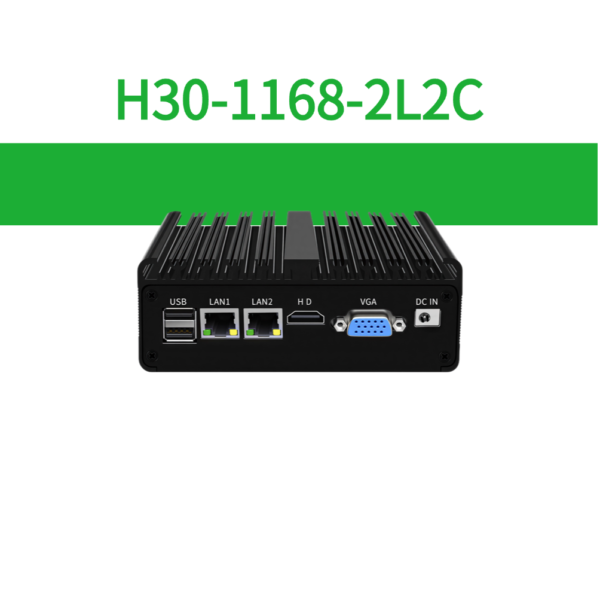

| Front Panel I/O | 1 × Jack DC_IN, 1 × VGA, 1 × HD, 2 × RJ45 LAN, 2 × USB-A 2.0, 2 × reserved antenna holes |

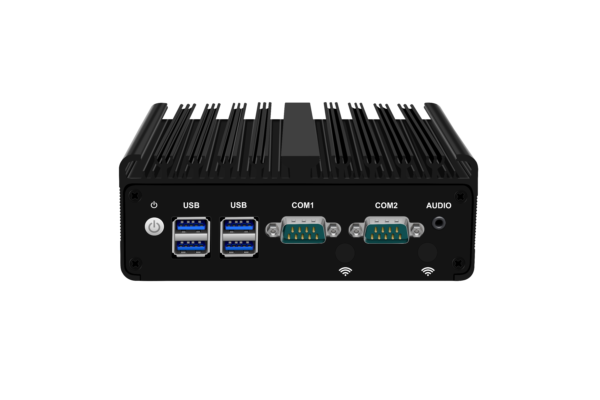

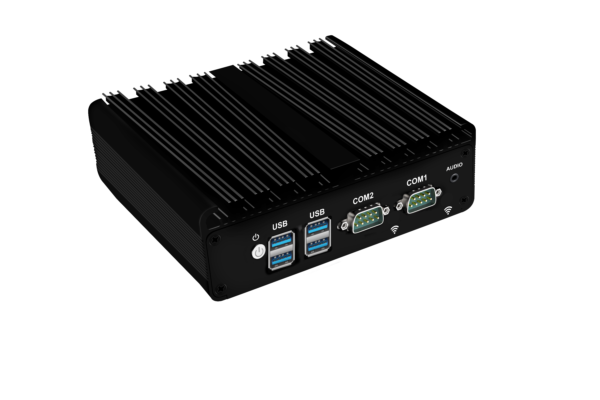

| Back Panel I/O | 1 × Start or Restart Button, 4 × USB-A 3.0, 2 × DB9 COM, 1 × 3.5mm Audio |
| Serial Port | 2 × DB9 COM RS232 / RS485 |
| Display Output | 1 × VGA, 1 × HD |
| Graphics | Intel HD Graphics |
| USB | 2 × USB-A 2.0, 4 × USB-A 3.0 |
| Audio | 1 × 3.5mm Audio |
| SIM | 1 × SIM Card Slot on motherboard |
| Onboard Storage I/O | 1 × SATA Data Connector, 1 × SATA Power Socket |
| Onboard Headers | 1 × F_PANEL, 1 × F_USB 3.0 |
| Cooling Method | Passive Cooling, Fanless; airflow required |
| Chassis Size | 136 × 126 × 40 mm |
| Motherboard Size | 120 × 120 mm |
| Weight | Equipment Weight: 0.65 KG; Package Weight: 1.25 KG including accessories |
| Power Mode | DC 12V 4A or higher |
| Operating Temperature | 0°C to 50°C |
| Operating Humidity | 5% to 90% relative humidity, non-condensing |
Typical Applications
Management Terminal
The compact fanless chassis, VGA + HD display outputs, dual Gigabit Ethernet, USB connectivity, and stable Intel platform make it suitable for management terminals, control panels, commercial terminals, and space-constrained industrial computer installations.
IoT Gateway
Dual Gigabit Ethernet, mPCIe expansion, SIM support, DC 12V input, and fanless operation provide a practical platform for IoT gateways, remote data transmission, device networking, edge communication, and distributed gateway deployments.
Industrial Automation
Two DB9 COM ports with RS232 / RS485 support, SATA and mSATA storage, rich USB interfaces, and long-term stable operation make it suitable for PLC communication, barcode scanners, inverters, data acquisition, machine control, and embedded automation systems.
Digital Signage
Intel HD Graphics, VGA + HD display outputs, compact fanless enclosure, USB peripheral support, and stable 24/7-oriented design make it suitable for digital signage, information display terminals, kiosk systems, and commercial display control applications.
