Quick Specs
Product Overview Video
Watch a product overview of the H10-1264-2L ultra-compact fanless edge networking device, featuring Intel Processor N-series performance, dual 2.5GbE LAN, DDR5 memory, M.2 storage, optional SFP fiber expansion, DP+HD display output, and silent passive cooling for edge computing, industrial automation, embedded terminal, and network communication applications.
Watch on YouTubeSpecifications
| Product Model | H10-1264-2L |
|---|---|
| Processor Collection | Intel Processor N-series |
| Socket | FCBGA1264 |
| Memory Type | DDR5 SO-DIMM |
| Maximum Memory Capacity | 16GB |
| Maximum Memory Frequency | 4800 MT/s |
| M.2 Storage | 1 × M.2 Key-B+M 2280, PCIe x1 / SATA 3.0 |
| Ethernet | 2 × 2.5GbE RJ45 LAN |
| Network Controller | 2 × Intel I226V |

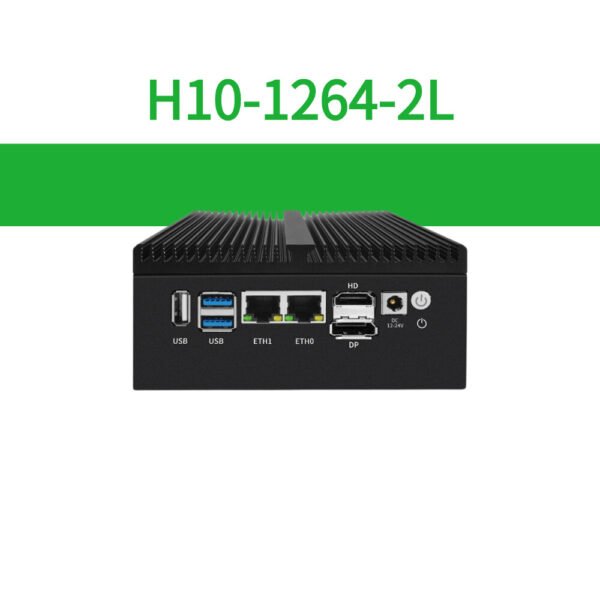

| Front Panel I/O | 1 × Power On or Restart Button, 1 × Jack DC 5.5/2.5mm Power Input, 1 × HD, 1 × DP, 2 × RJ45 LAN, 2 × USB-A 3.2, 1 × USB-A 2.0 |
| Back Panel Expansion | None / 2 × SFP / 4 × SFP Optional |
| Display Output | 1 × DP, 1 × HD; eDP available by custom order at motherboard level |
| Graphics | Intel UHD Graphics |
| Wireless Expansion | 1 × M.2 Key-E 2230, CNVi |
| Expansion Interface | 1 × PCI-E x6-IO, non-standard definition |
| Onboard I/O | 2 × F_USB 2.0, 1 × J_COM, 1 × J_GPIO |
| Fan Header | 1 × CPU_FAN, 1 × SFP_FAN reserved |
| Cooling Method | Passive Cooling, Fanless; airflow required |
| Chassis Size | 128 × 156 × 60 mm |
| Motherboard Size | 110 × 100 mm |
| Weight | Equipment Weight: 1.05 KG; Package Weight: 1.60 KG including accessories |
| Power Mode | DC 19V 2.1A or higher |
| Operating Temperature | 0°C to 50°C |
| Operating Humidity | 5% to 95% relative humidity, non-condensing |
Typical Applications
Edge Computing
Intel N-series low-power computing, DDR5 memory, M.2 storage, dual 2.5GbE LAN, and compact fanless construction make it suitable for edge computing nodes, local data processing, and distributed edge services.
Industrial Automation
J_COM, J_GPIO, F_USB, wide-voltage motherboard design, and reliable fanless operation support PLC communication, sensor integration, data acquisition, equipment monitoring, and industrial control systems.
Embedded Terminal
The small 128 × 156 × 60 mm chassis, DP+HD display outputs, USB connectivity, M.2 storage, and silent thermal design make it ideal for embedded terminals, kiosks, control panels, and compact commercial devices.
Network Communication
Dual Intel I226V 2.5GbE ports and optional SFP fiber expansion support IoT gateways, software routers, firewall devices, network security appliances, fiber access nodes, and high-speed communication systems.
