G30S-1493NP-4L

Price range: $175.00 through $515.00

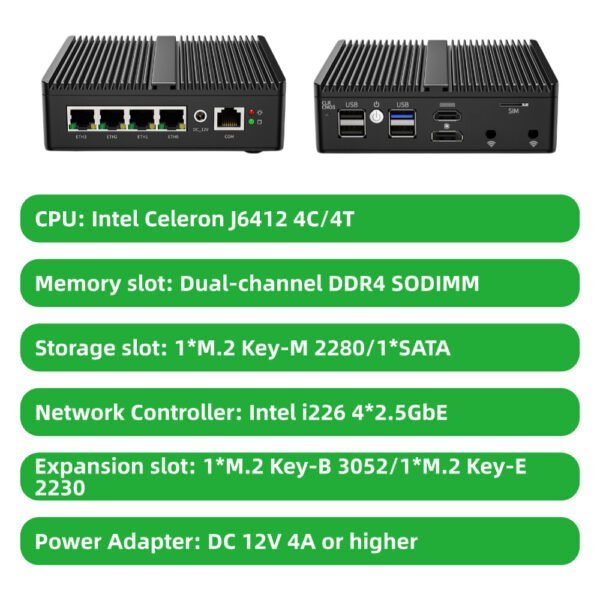

The G30S-1493NP-4L is a small embedded system built on the Intel Celeron J series platform. It features a fanless passive cooling design, offering exceptional energy efficiency and long-term stable operation. Equipped with 4 x 2.5GbE network ports, dual DDR4 memory slots, M.2 high-speed storage, and dual M.2 expansion slots, it is an ideal solution for building space-sensitive network devices, industrial control, and edge computing.

SKU: N/A Categories: , , Tags: , , , , , , Brand:

Quick Specs

Processor Intel Celeron Processor J Series
Network 4 × 2.5GbE RJ45 LAN
Memory Up to 32GB DDR4 SO-DIMM 3200 MT/s
Storage 1 × SATA 3.0 + 1 × M.2 Key-M 2280
Expansion M.2 Key-B 3052 + M.2 Key-E 2230
Cooling Fanless Passive Cooling

Specifications

Product ModelG30S-1493NP-4L
Processor CollectionIntel Celeron Processor J Series
SocketFCBGA1493
Memory Type2 × DDR4 SO-DIMM
Maximum Memory Capacity32GB
Maximum Memory Frequency3200 MT/s
SATA1 × SATA 3.0, 6Gb/s
M.2 Storage1 × M.2 Key-M 2280
Ethernet4 × RJ45, 2.5GbE
Network Controller4 × Intel I226V
Front Panel4 × RJ45 LAN, 1 × Jack DC_IN, 1 × RJ45 RS232 Console
Back Panel1 × Start or Restart Button, 1 × USB-A 3.0, 3 × USB-A 2.0, 1 × DP, 1 × HD, 2 × Reserved Antenna Holes
Expansion Interface1 × M.2 Key-B 3052, 1 × M.2 Key-E 2230 on the back of motherboard
Cellular Support1 × SIM Card Slot
Display1 × DP, 1 × HD
Cooling MethodPassive Cooling, Fanless; airflow required
Chassis Size136 × 126 × 40 mm
WeightEquipment Weight: 0.65 KG; Package Weight: 1.25 KG including accessories
Power ModeDC 12V 4A or Higher
Operating Temperature0°C to 50°C
Operating Humidity5% to 90% relative humidity, non-condensing

Typical Applications

Cybersecurity

Built for firewall, VPN, router, and network security deployments requiring four 2.5GbE LAN ports and stable low-power operation.

IoT Edge Gateway

Supports edge gateway applications with 4G/5G expansion, Wi-Fi expansion, SIM support, and reliable wired connectivity.

Industrial Control Automation

Suitable for automation control, industrial data collection, PLC communication, and embedded field applications with RS232/RS485 and GPIO support.

Embedded Terminal

Compact fanless design makes it ideal for embedded terminals, edge computing nodes, lightweight virtualization, and space-sensitive systems.

Downloads & Resources

Data Sheet Product Manual BIOS / Firmware Driver Download

Share with your friends.

Facebook
WhatsApp
LinkedIn
Pinterest
X
Weight 1.35 kg
Dimensions 25 × 20 × 15 cm
Integrated processor

Intel Celeron J6412
Bundles

NO RAM NO SSD, 4GB DDR4 128GB NVMe, 8GB DDR4 128GB NVMe, 8GB DDR4 256GB NVMe, 16GB DDR4 256GB NVMe, 16GB DDR4 512GB NVMe
