Quick Specs
Processor Platform11th Gen Intel Tiger Lake
Network4 x Intel I226V 2.5GbE
CoolingFanless passive cooling
MemoryDDR4 SO-DIMM, up to 64GB
Storage1 x SATA + 1 x M.2 Key-M 2280
Chassis178 x 126 x 56 mm
Specifications

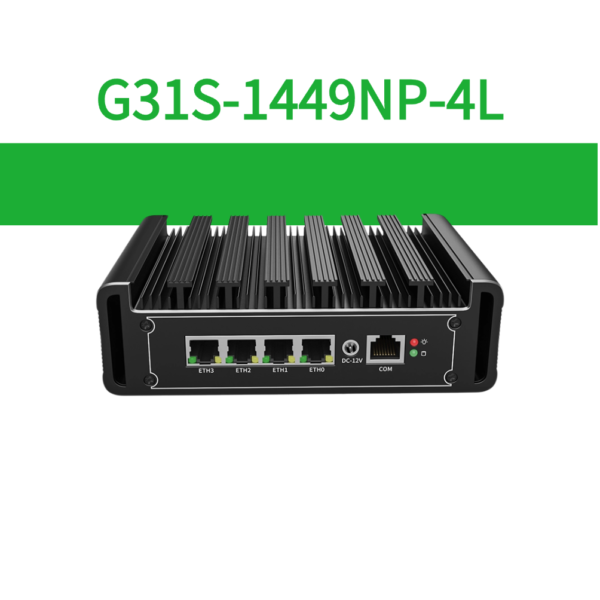

| Product Model | BKHD G31S-1449NP-4L |
|---|---|
| Processor Platform | 11th Gen Intel Tiger Lake, FCBGA1449 |
| Memory | DDR4 SO-DIMM, up to 64GB, up to 3200 MT/s |
| Storage | 1 x SATA 6Gb/s; 1 x M.2 Key-M 2280 |
| Ethernet | 4 x RJ45 2.5GbE with Intel I226V controllers |

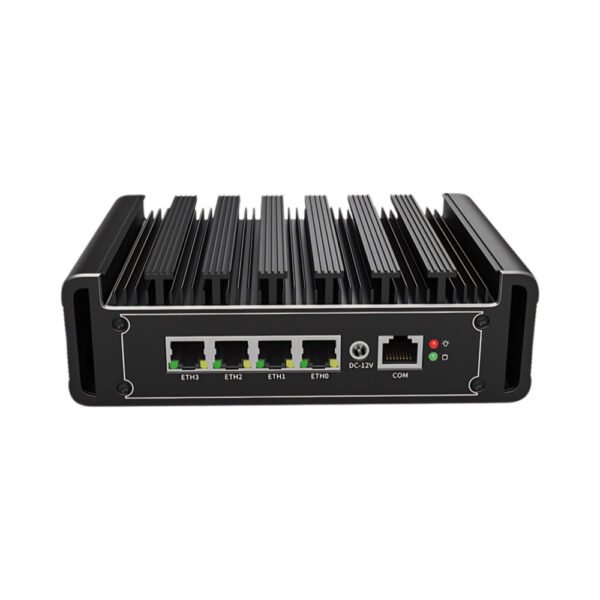

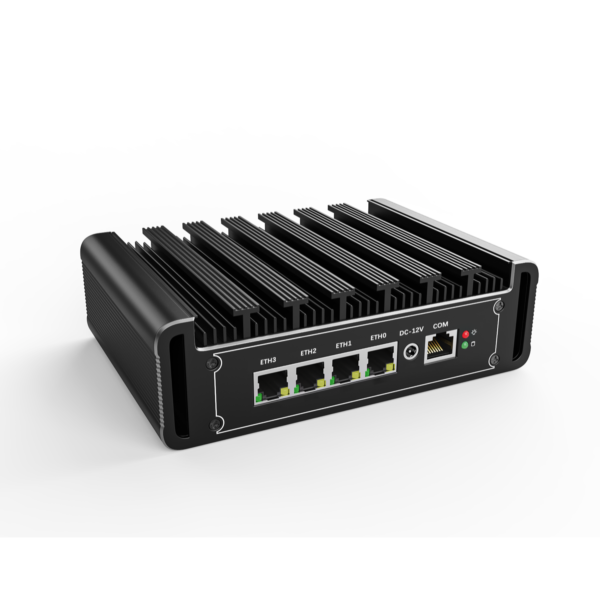

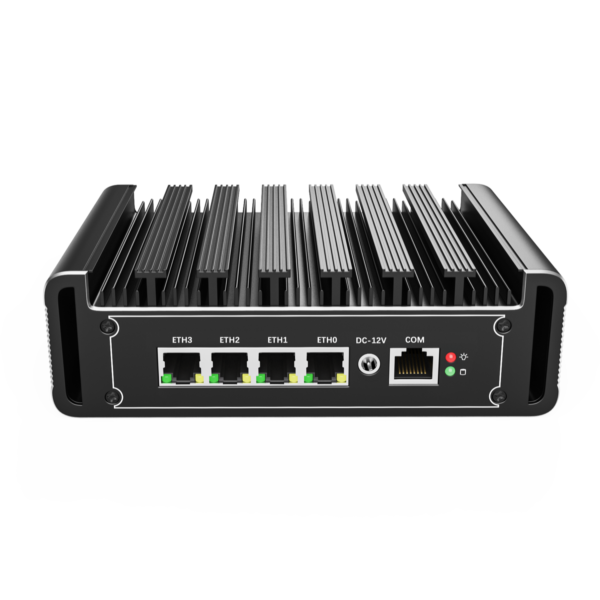

| Front I/O | 4 x RJ45 LAN; 1 x RJ45 RS232 console; 1 x DC input |

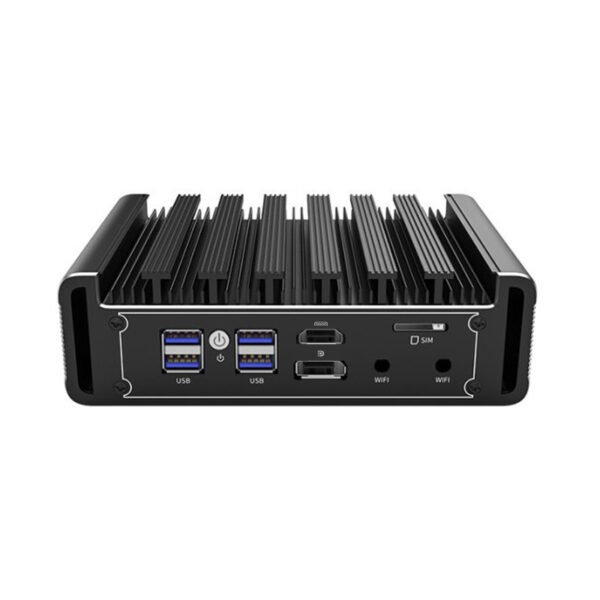

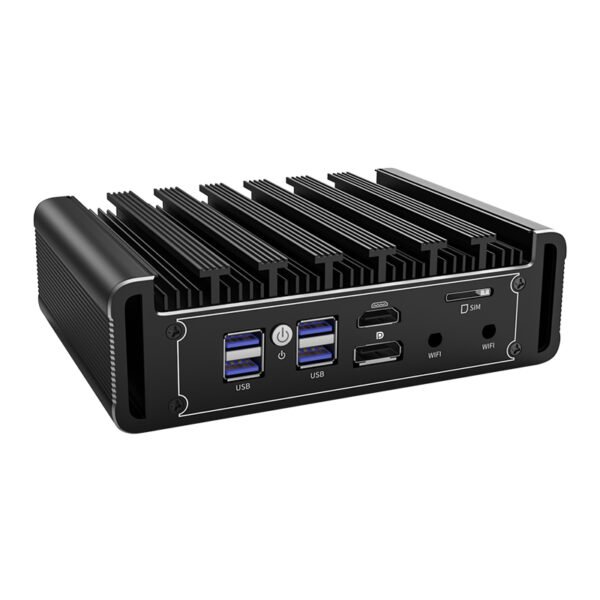

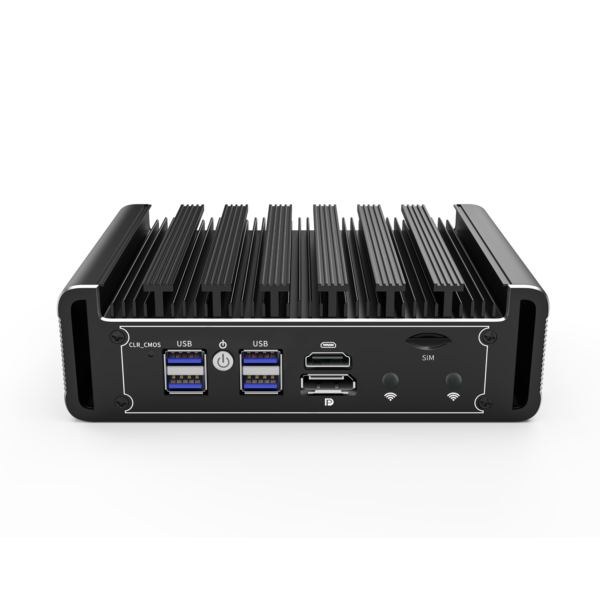

| Rear I/O | Power/restart button; 4 x USB-A 3.0; 1 x DP; 1 x HD display output; 2 x reserved antenna openings |
| Expansion | 1 x mPCIe |
| Cooling | Passive cooling, fanless; airflow required |

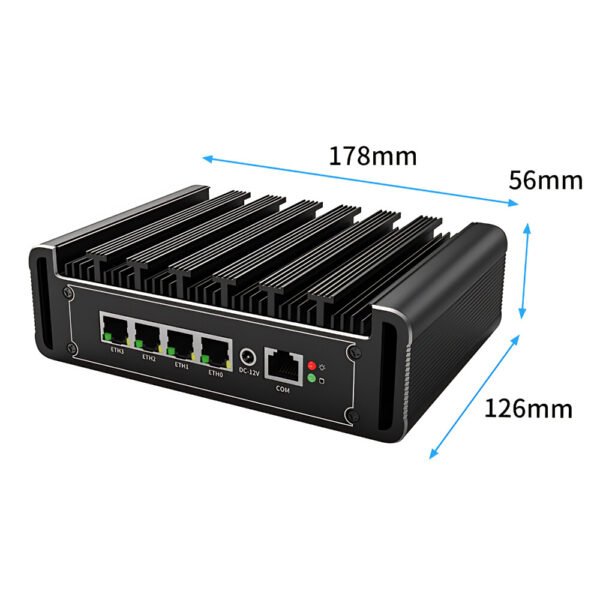

| Chassis Size | 178 x 126 x 56 mm |
| Equipment Weight | 1.15 kg |
| Power Input | 12V DC, 4A or higher |
| Operating Temperature | 0-50°C |
| Operating Humidity | 5%-90% relative humidity, non-condensing |
Typical Applications
Firewall and Gateway
Four Intel I226V 2.5GbE ports provide separate physical connections for WAN, LAN, and segmented networks in a desktop firewall or gateway deployment.
Small Office Network
A fanless metal chassis, four LAN interfaces, and flexible memory and storage options support office routing, local network services, and branch-site connectivity.
Industrial Network Edge
The RJ45 RS232 console, multi-port Ethernet, and 12V DC input support industrial network access, device communication, and local edge deployments.
Embedded Terminal
Four USB 3.0 ports, DP and HD display outputs, and SATA/M.2 storage provide connections for local management, embedded terminals, and on-site network tools.
Downloads & Support
Data Sheet1449NP-12-4L platform specifications and the G31S-1449NP-4L system profile on page 5.
Product Manual1449NP-12-4L motherboard installation, connectors, and BIOS reference.
BIOS / FirmwareFind firmware by motherboard model and hardware revision in the BKHD download center.
Driver DownloadFind available drivers in the BKHD driver download center.
