Specifications

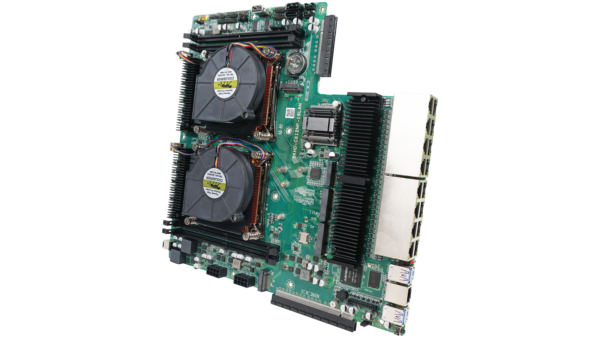

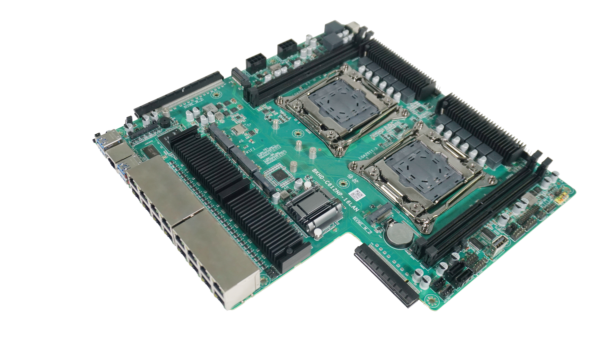

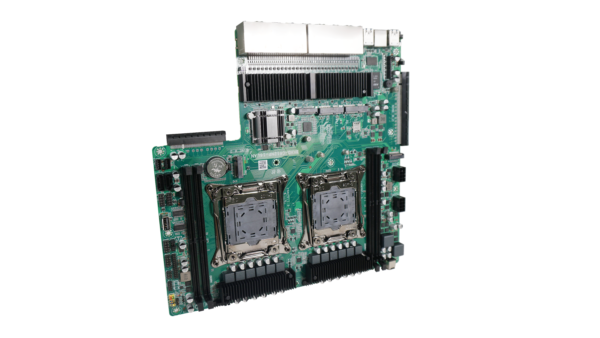

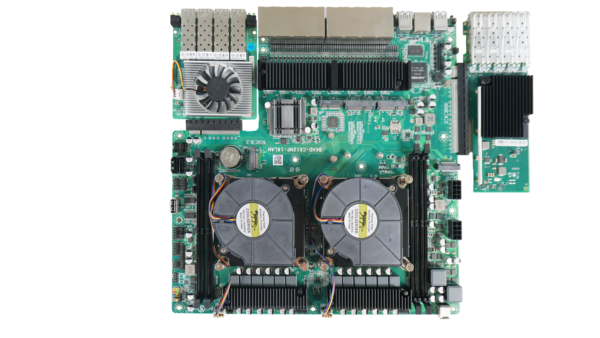

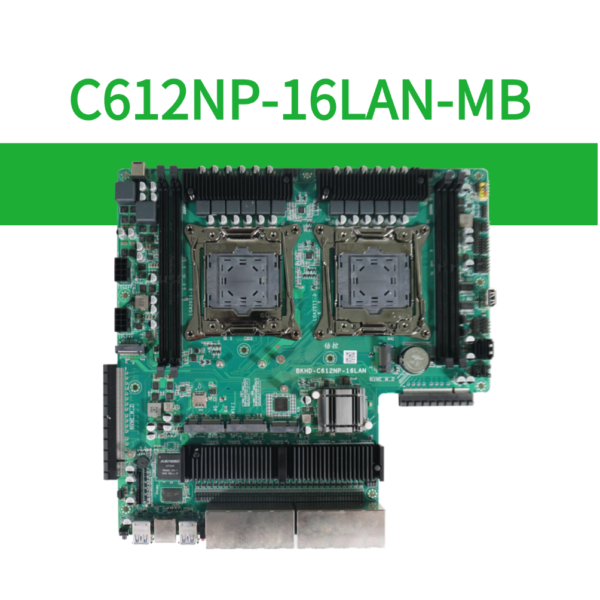

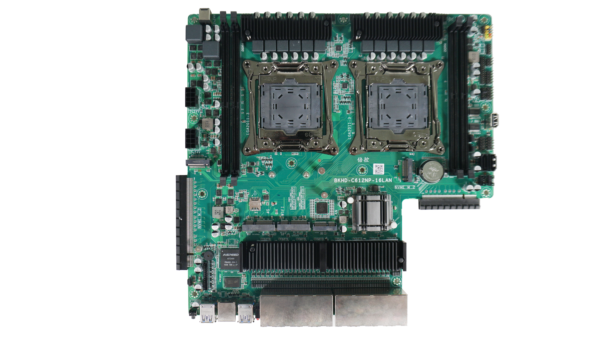

| Product Model | C612NP-16LAN Motherboard |
|---|---|
| Processor Collection | Intel Xeon Processor E5 v4 Family |
| CPU Socket | Dual FCLGA2011-3 Socket |
| CPU Requirement | The two CPU models must be the same for stable operation |
| Memory Type | 4 × DDR4 SO-DIMM, dual-channel design |
| Maximum Memory Capacity | 4 × 32GB, up to 128GB |
| Maximum Memory Frequency | 2400 MT/s |
| SATA | 2 × SATA 6Gb/s |
| M.2 Storage | 2 × M.2 Key-M NVMe SSD |
| Ethernet | 16 × 2.5GbE RJ45 LAN |
| Network Controller | 16 × Intel I226V |
| I/O Chip | ITE IT8784E-I |
| PCIe Expansion | 1 × PCIe x16 Gen3, 1 × PCIe x8 Gen3 |
| mPCIe Expansion | 1 × mPCIe with USB signal, 1 × mPCIe with PCIe signal shared with M.2 Key-E |
| M.2 Key-E | 1 × M.2 Key-E, PCIe signal shared with mPCIe |
| Display Output | 1 × VGA header |
| Graphics | Based on onboard ASPEED chip |
| Backplane USB | 4 × USB-A 3.0 |
| Backplane COM | 1 × RJ45 COM-RS232 |
| Backplane LAN | 16 × RJ45 LAN |
| Power Input | 1 × Jack DC 5.5/2.5mm |
| Onboard SATA | 2 × SATA data connectors, 2 × SATA power sockets |
| Onboard USB | 1 × USB-A 2.0 |
| Fan Headers | 1 × CPU_FAN, 4 × SYS_FAN |
| SIM | 1 × SIM card slot |
| Onboard Headers | 1 × F_PANEL, 2 × F_USB2.0, 1 × J_VGA, 2 × J_COM, 1 × Debug Card Header, 1 × LPT, 1 × TPM, 1 × Case Open Pins |
| Power Supply Mode | DC 12V–24V or 2 × 8-pin ATX power connectors with series design |
| Motherboard Size | 287 × 285 mm |
| Operating Temperature | -10°C to 60°C |
| Operating Humidity | 5% to 90% relative humidity, non-condensing |
Typical Applications
Enterprise Firewall Appliance
Dual Intel Xeon E5 v4 processing, 16 × Intel I226V 2.5GbE LAN, RJ45 COM, PCIe expansion, and server-grade I/O make it suitable for enterprise firewall appliances, high-throughput routing, traffic inspection, and multi-zone network protection.
Multi-WAN Router
The 16-port 2.5GbE architecture supports multi-WAN access, LAN/WAN separation, VLAN segmentation, network isolation, multi-tenant routing, load balancing, link aggregation, and complex enterprise network management.
Industrial Network Gateway
Wide-temperature operation, DC 12V–24V input, SIM support, COM, RS232 / RS485 selection, LPT, TPM, case open pins, USB expansion, and multiple fan headers make it suitable for industrial communication servers, factory network nodes, and remote network gateway systems.
Virtualization Platform
Dual CPU sockets, up to 128GB DDR4 memory, dual M.2 NVMe SSD, SATA storage, PCIe x16 / x8 expansion, and 16 × 2.5GbE LAN provide a strong base for virtualization platforms, virtual routers, multi-service network systems, and custom OEM/ODM security appliances.
