Quick Specs
Specifications

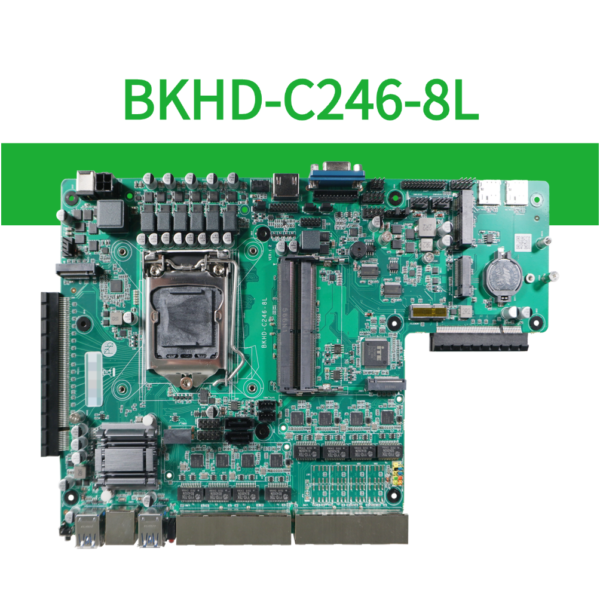

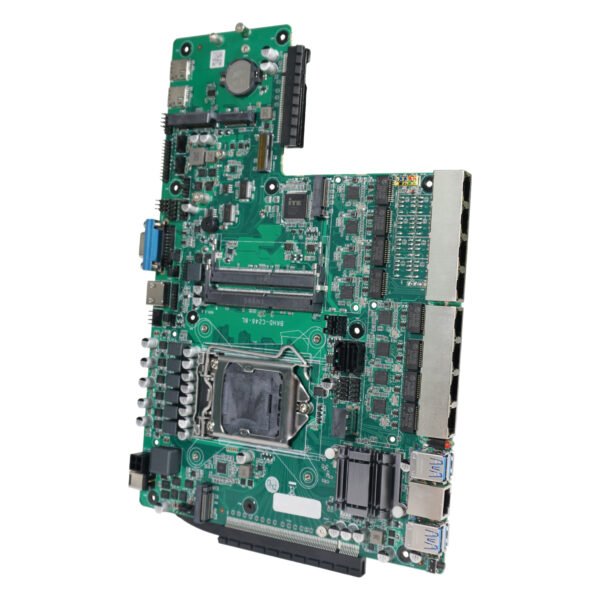

| Product Model | C246-8L Motherboard |
|---|---|
| Chipset | Intel C246 / C240 Series Chipset |
| Processor Socket | FCLGA1151 |
| Supported Processor Platform | Intel LGA1151 Socket Processors |
| Memory Type | DDR4 SO-DIMM |
| Maximum Memory Capacity | 64GB |
| Maximum Memory Frequency | 2666 MT/s |
| SATA | 2 × SATA 6Gb/s |
| M.2 Storage | 2 × M.2 Key-M 2280 SSD |
| Ethernet | 8 × 2.5GbE RJ45 LAN |
| Network Controller | 8 × Intel I226V |
| I/O Chip | ITE IT8786E-I |

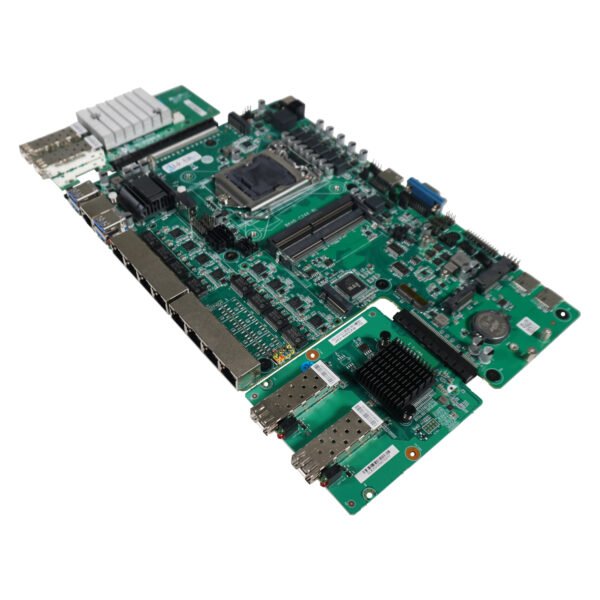

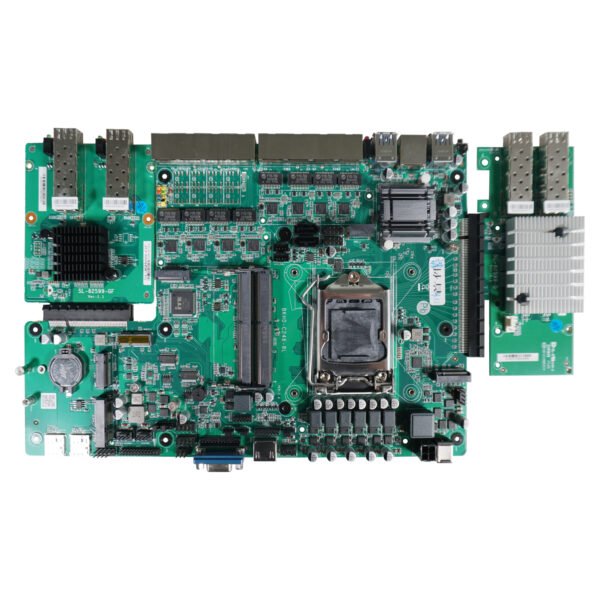

| PCIe Expansion | 1 × PCIe x16, x8 rate; 1 × PCIe x8, x4 rate |
| M.2 Key-E | 1 × M.2 Key-E 2230, PCIe / USB Signal |
| M.2 Key-B | 1 × M.2 Key-B 3052, USB Signal |
| mPCIe | 1 × mPCIe, PCIe / USB Signal |

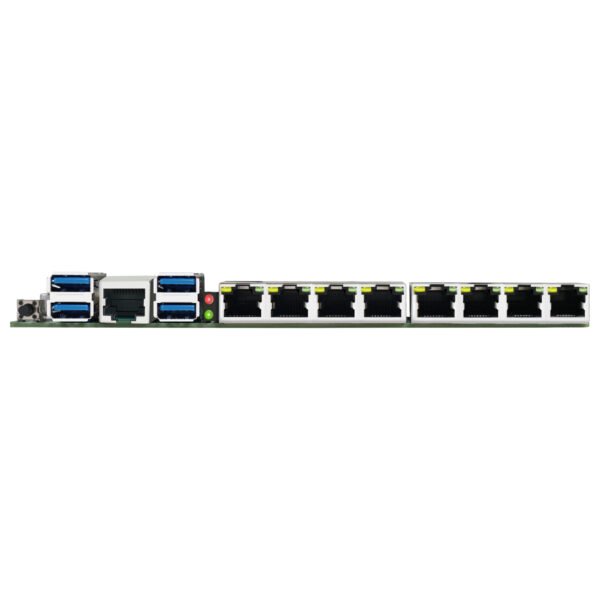

| Backplane I/O | 8 × RJ45 LAN, 4 × USB-A 3.0, 1 × VGA, 1 × HD, 1 × RJ45 COM RS232, 1 × Clear CMOS Button, 1 × ATX 24-pin Connector or 1 × Jack DC 5.5/2.5mm |
| Display Output | 1 × VGA, 1 × HD |
| Graphics | Depends on the Processor Integrated Graphics |
| Console | 1 × RJ45 COM RS232 |
| Onboard Storage I/O | 2 × SATA Data Connectors, 2 × SATA Power Sockets |
| Onboard Headers | 1 × F_PANEL, 2 × JCOM, 2 × F_USB 2.0, 1 × TPM, 1 × LPT, 1 × LPC, 1 × JVGA, 1 × JHD |
| USB Expansion | 1 × USB-A 2.0 on motherboard; 2 × F_USB 2.0 headers |
| Fan Headers | 1 × CPU_FAN, 3 × SYS_FAN |
| Power Supply Mode | DC 12V–24V |
| Motherboard Size | 287 × 190 mm |
| Operating Temperature | -20°C to 60°C |
| Operating Humidity | 5% to 90% relative humidity, non-condensing |
Typical Applications
Network Security Appliance
Eight Intel I226V 2.5GbE LAN ports, RJ45 console, PCIe expansion, TPM, and industrial board design make it suitable for firewall appliances, VPN gateways, SD-WAN systems, UTM platforms, VLAN, LACP, traffic forwarding, and enterprise network segmentation.
Enterprise Gateway Platform
Intel C246 chipset, FCLGA1151 processor support, up to 64GB DDR4 memory, dual M.2 SSD, SATA storage, and 8 × 2.5GbE ports provide a stable platform for enterprise gateways, branch network devices, multi-WAN gateways, and custom network systems.
Industrial Automation Control
Wide-temperature operation, DC 12V–24V input, COM, TPM, LPT, LPC, USB expansion, SATA, fan headers, and PCIe expansion make it suitable for industrial gateways, automation control, machine communication, production monitoring, and embedded control systems.
Edge Computing Platform
High-speed 2.5GbE networking, dual M.2 SSD storage, SATA backup storage, PCIe expansion, M.2 Key-E, M.2 Key-B, mPCIe, and industrial reliability make it suitable for edge computing, local data processing, virtualized network services, and OEM/ODM embedded network platforms.
