Quick Specs
Specifications

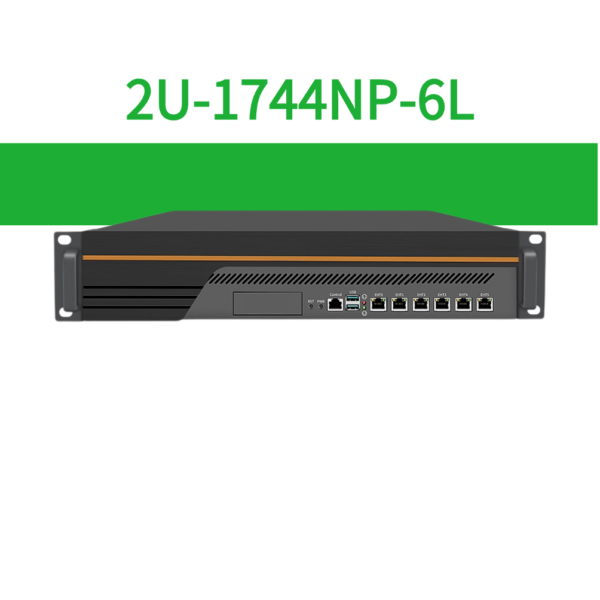

| Product Model | 2U-1744NP-6L |
|---|---|
| Processor Collection | Intel 12th / 13th Gen Processors |
| Socket | FCBGA1744 |
| Memory Type | 2 × DDR5 SO-DIMM |
| Maximum Memory Capacity | 2 × 48GB, up to 96GB |
| Maximum Memory Frequency | 4800 MT/s |
| SATA | 1 × SATA 3.0 |
| M.2 Storage | 2 × M.2 Key-M 2280 |
| Ethernet | 6 × 2.5GbE RJ45 LAN |
| Network Controller | 6 × Intel I226V |
| PCIe Expansion | 1 × PCIe x8, Gen4 |
| M.2 Key-E | 1 × M.2 Key-E 2230, PCIe + USB + CNVi Signal |
| M.2 Key-B | 1 × M.2 Key-B 3052, USB Signal |
| Front Panel I/O | 2 × USB-A 3.2, 6 × RJ45 LAN, 1 × RJ45 COM, 1 × PCIe Expand Port |
| Back Panel I/O | 1 × VGA / 1 × HD Reserved Display, 2 × Reserved Antenna Groups, 2 × AC Power Sockets |
| Console | 1 × RJ45 COM |
| Display Output | 1 × VGA / 1 × HD Reserved |
| Graphics | Intel UHD Graphics |
| Onboard I/O | 1 × SATA Data Connector, 1 × SATA Power Socket, 1 × JTPM 2.0, 1 × JGPIO 8-Way, 1 × J_COM2 RS232, 3 × F_USB expandable to 6 × USB 2.0 ports, 1 × JVGA / 1 × JHD |
| SIM | 1 × SIM Card Slot |
| Fan Headers | 1 × SYS_FAN, 1 × CPU_FAN |
| Cooling Method | Active Cooling, 1 × CPU Fan + 2 × Chassis Fans |
| Chassis Size | 435 × 405 × 90 mm |
| Motherboard Size | 180 × 200 mm |
| Weight | Equipment Weight: 6.40 KG; Package Weight: 8.50 KG including accessories |
| Power Mode | Input: 80V–264V AC, 47–63Hz; Output: 200W MAX |
| Operating Temperature | 0°C to 50°C |
| Operating Humidity | 5% to 90% relative humidity, non-condensing |
Typical Applications
Network Infrastructure
Six Intel I226V 2.5GbE RJ45 LAN ports, DDR5 memory, PCIe x8 Gen4 expansion, and 2U rackmount design make it suitable for enterprise routing, multi-WAN access, network segmentation, gateway deployment, and high-throughput network infrastructure.
Firewall Appliance
Multi-port 2.5GbE connectivity, RJ45 COM, dual M.2 storage, active cooling, and wide-range AC input support firewall appliances, routers, VPN gateways, VLAN, LACP, traffic forwarding, and enterprise network security applications.
Lightweight Virtualization
Up to 96GB DDR5 memory, dual M.2 Key-M storage, SATA 3.0, PCIe x8 Gen4, and six 2.5GbE ports provide a strong platform for lightweight virtualization, virtual routers, edge services, and compact network server workloads.
Industrial Automation
RJ45 COM, GPIO, TPM, SIM support, USB expansion, VGA / HD reserved display, active cooling, and 2U chassis space make it suitable for industrial automation control, machine communication, monitoring systems, factory gateways, and OEM / ODM embedded network systems.
