1U-946NP-6L

Price range: $219.99 through $415.00

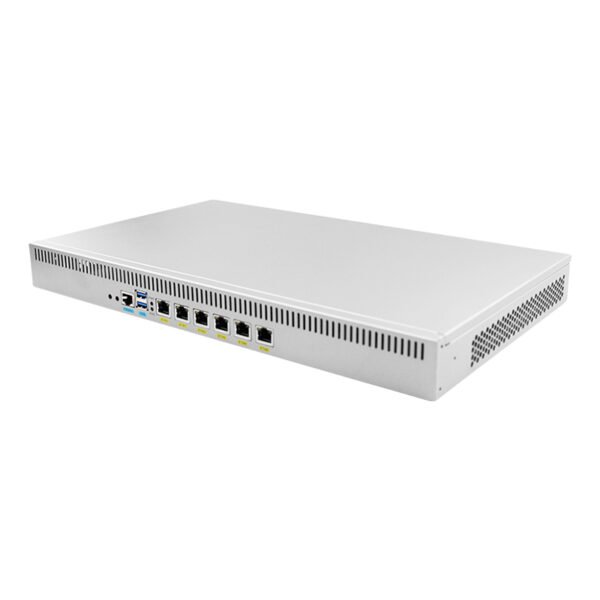

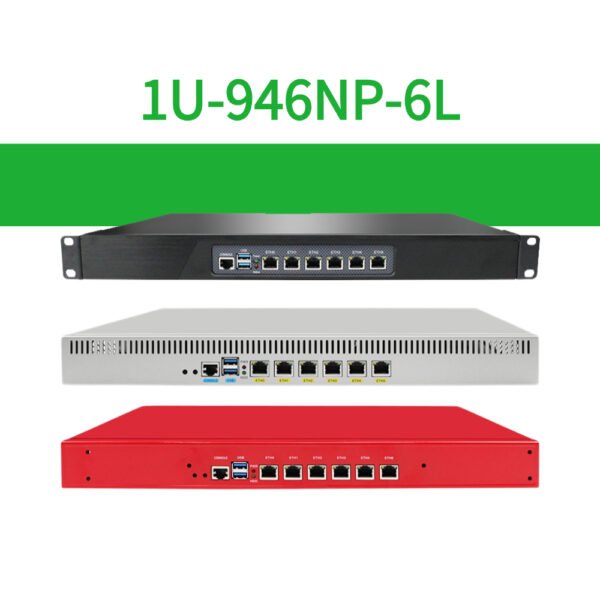

The 1U-946NP-6L is a standard 1U rack-mount network device equipped with an Intel 4th-generation Core processor design and integrating 6x GbE High-speed network ports. It provides a standardized, high-density, high-performance hardware platform solution for enterprise network infrastructure, network security equipment, and edge computing applications.

Main Features:
  • Powerful Network Connectivity: Six independent Intel Gigabit Ethernet ports and the stable and highly compatible Intel 82574L network controller.
  • Industrial-Grade Reliability and Adaptability: A wide operating temperature and humidity range allows for unrestricted use in any location.
  • Flexible Expandability: A rich array of panel interfaces and a variety of expansion pins and slots are provided.
  • Stable Processing Platform: Based on the widely compatible Intel 4th-generation Core processor platform.
SKU: N/A Categories: , Tags: , , , , Brand:
Network Firewall

The 6 high-performance Intel Gigabit Ethernet ports are an ideal foundation for building a multi-WAN or multi-LAN security gateway or router.

Industrial Communication Gateway

Connects different industrial networks (Ethernet, serial devices through extension) to achieve data acquisition, conversion and transmission.

Edge Computing Node

Perform preliminary data processing and forwarding at industrial sites close to data sources, with a wide temperature design to adapt to harsh environments.

Self-service terminals

Leverage its multiple interfaces, expansion capabilities, and reliability to serve as ATM hosts, self-service ticket machines, and industrial HMIs.

ProcessorProduct Collection4th Generation Intel Core Processors
Sockets SupportedFCPGA946
InterfaceFront PanelNetwork6*RJ45 LAN
USB2*USB-A 3.0
Console1*RJ45 COM

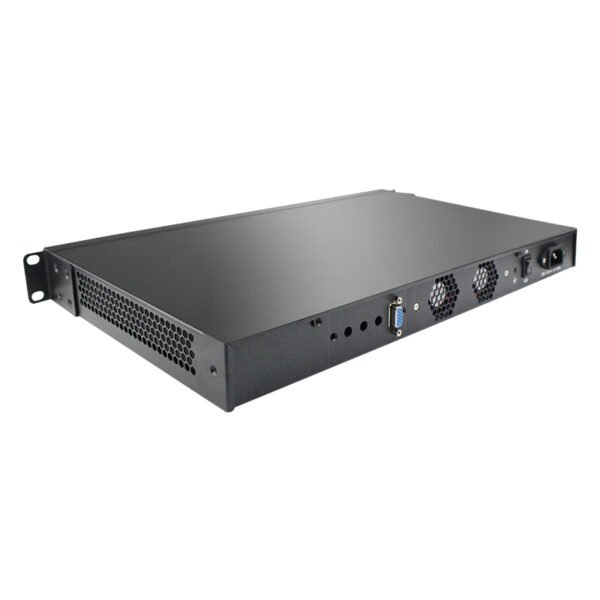

Back PanelDisplay1*VGA/1*HD (Reserve)
Antenna2 Groups (Reserve)
Power supply1*AC power socket
OnboardmPCIe1*Half-height mPCIe (PCIe x1/USB2.0)
1*Full-height mPCIe (PCIe x1/USB2.0)
Cooling MethodActive CoolingFan1*CPU Fan/2*Chassis Fan
System SpecificationsChassis Size440*255*45 (mm)
Equipment Weight

Equipment Weight

3.80 KG; Package Weight

4.50 KG (including accessories)

Power Mode

Input: 85V~264V AC 47~63 Hz

Output: DC 12V 4.2A

Work EnvironmentTemperature0~50℃
Humidity5%~90% (Relative humidity, no condensation)

Data Sheet

Product Manual

Product Firmware

Share with your friends.

Facebook
WhatsApp
LinkedIn
Pinterest
X
Weight 6 kg
Dimensions 55 × 38 × 15 cm
Integrated Processor

Core i3-4100M, Core i5-4200M, Core i7-4800MQ
Bundles

4GB RAM 32GB SSD, 4GB RAM 64GB SSD, 8GB RAM 128GB SSD, 8GB RAM 256GB SSD, 8GB RAM 512GB SSD, 16GB RAM 512GB SSD, 16GB RAM 1TB SSD
Chassis color

Black, Silver, Red
