Quick Specs
Specifications
| Product Model | 1U-1744NP-6L |
|---|---|
| Processor Collection | Intel 12th / 13th Gen Processors |
| Socket | FCBGA1744 |
| Memory Type | 2 × DDR5 SO-DIMM |
| Maximum Memory Capacity | 2 × 48GB, up to 96GB |
| Maximum Memory Frequency | 4800 MT/s |
| SATA | 1 × SATA 3.0 |
| M.2 Storage | 2 × M.2 Key-M 2280 |
| Ethernet | 6 × 2.5GbE RJ45 LAN |
| Network Controller | 6 × Intel I226V |
| PCIe Expansion | 1 × PCIe x8, Gen4 |
| M.2 Key-E | 1 × M.2 Key-E 2230, PCIe + USB + CNVi Signal |
| M.2 Key-B | 1 × M.2 Key-B 3052, USB Signal |

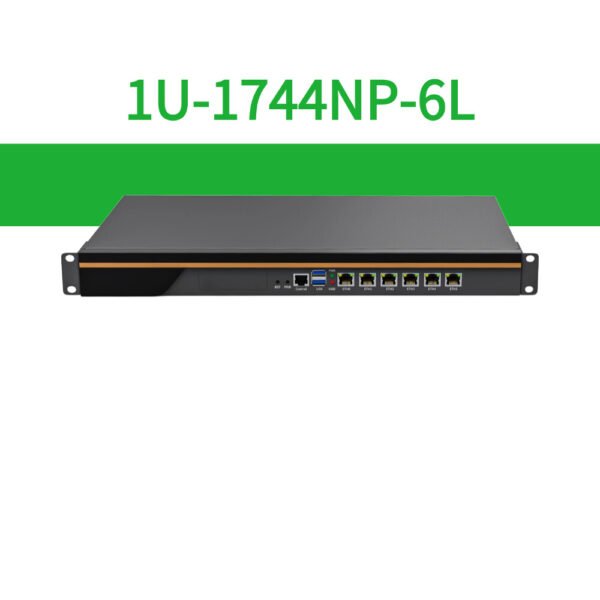

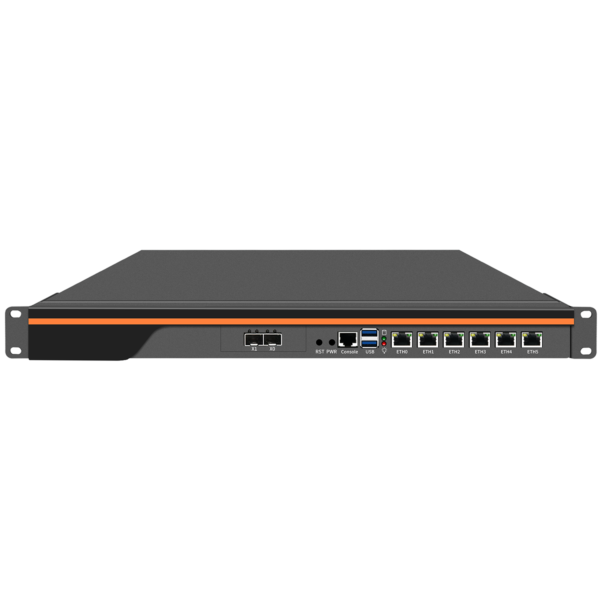

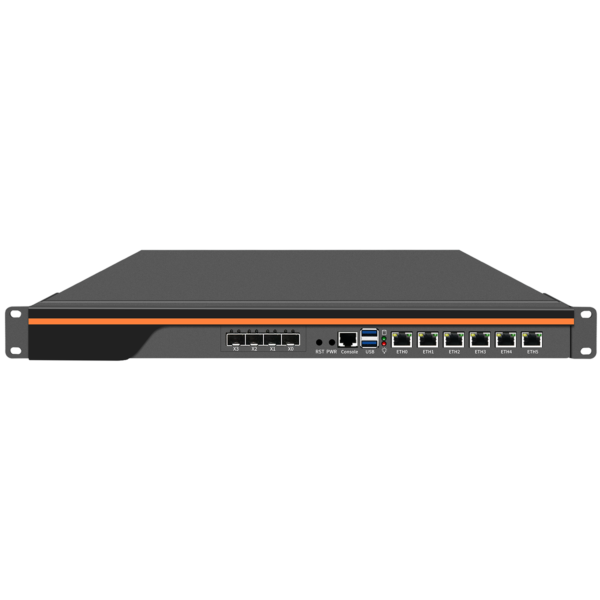

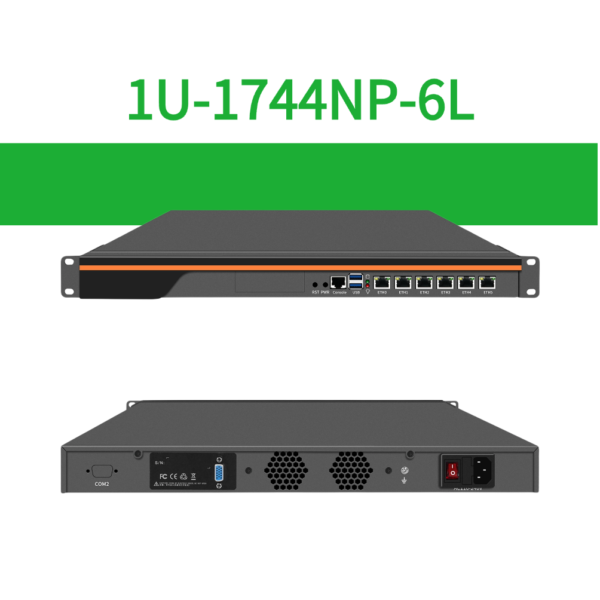

| Front Panel I/O | 2 × USB-A 3.2, 6 × RJ45 LAN, 1 × RJ45 COM, 1 × PCIe Expand Port |
| Back Panel I/O | 1 × VGA / 1 × HD Reserved Display, 4 × Reserved Antenna Holes, 1 × AC Socket |
| Console | 1 × RJ45 COM |
| Display Output | 1 × VGA / 1 × HD Reserved |
| Graphics | Intel UHD Graphics |
| Onboard I/O | 1 × SATA Data Connector, 1 × SATA Power Socket, 1 × JTPM 2.0, 1 × JGPIO 8-Way, 1 × J_COM2 RS232, 3 × F_USB expandable to 6 × USB 2.0 ports, 1 × JVGA / 1 × JHD |
| SIM | 1 × SIM Card Slot |
| Fan Headers | 1 × SYS_FAN, 1 × CPU_FAN |
| Cooling Method | Active Cooling, 1 × CPU Fan + 2 × Chassis Fans |
| Chassis Size | 440 × 255 × 45 mm |
| Motherboard Size | 180 × 200 mm |
| Weight | Equipment Weight: 3.80 KG; Package Weight: 4.50 KG including accessories |
| Power Mode | Input: 80V–264V AC, 47–63Hz; Output: 200W MAX |
| Operating Temperature | 0°C to 50°C |
| Operating Humidity | 5% to 90% relative humidity, non-condensing |
Typical Applications
Industrial Edge Gateway
Intel 12th / 13th Gen processor performance, DDR5 memory, six 2.5GbE ports, M.2 and SATA storage, SIM support, and 1U rackmount deployment make it suitable for industrial edge gateway, remote communication, edge data collection, and distributed network node applications.
Firewall Appliance
Six Intel I226V 2.5GbE RJ45 LAN ports support firewall appliances, routers, multi-WAN access, VLAN, LACP, traffic forwarding, network segmentation, gateway security, and enterprise network protection.
Lightweight Virtualization
Up to 96GB DDR5 memory, dual M.2 Key-M storage, SATA 3.0, PCIe x8 Gen4 expansion, and six 2.5GbE ports provide a strong hardware platform for lightweight virtualization, virtual routers, edge services, and compact network server workloads.
Industrial Automation
RJ45 COM, GPIO, TPM, USB expansion, VGA / HD reserved display, active cooling, and wide-range AC power make it suitable for industrial automation control, equipment monitoring, machine communication, factory gateways, and OEM / ODM embedded network systems.
