Quick Specs
Specifications

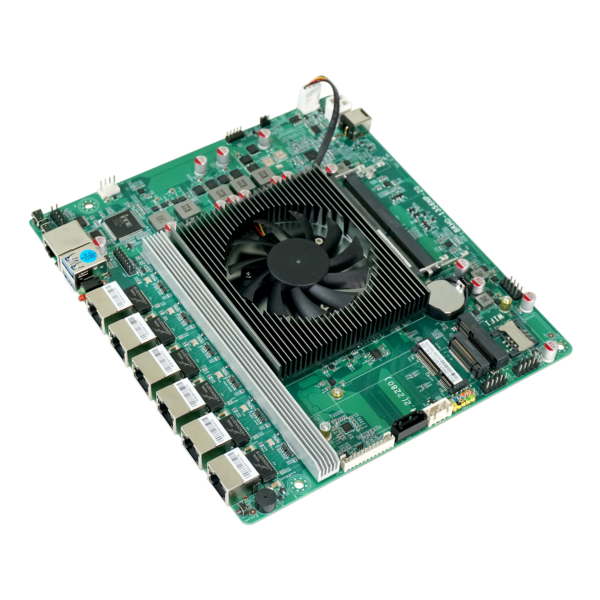

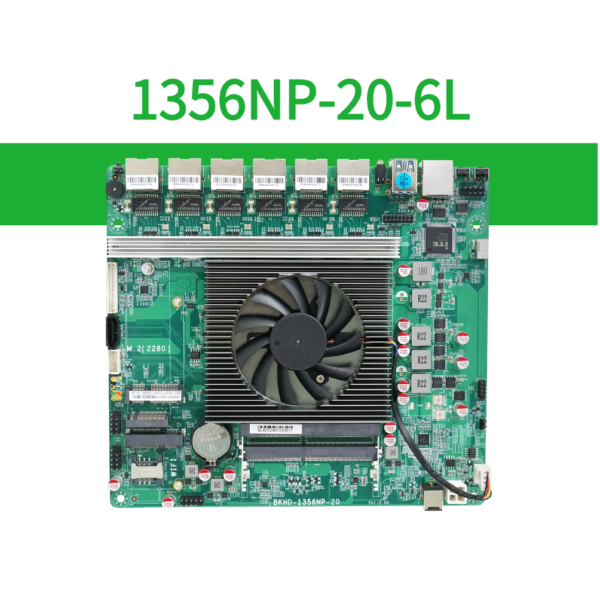

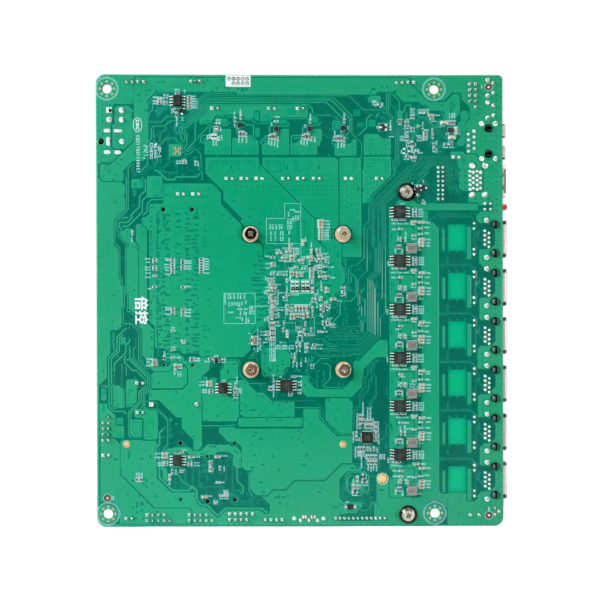

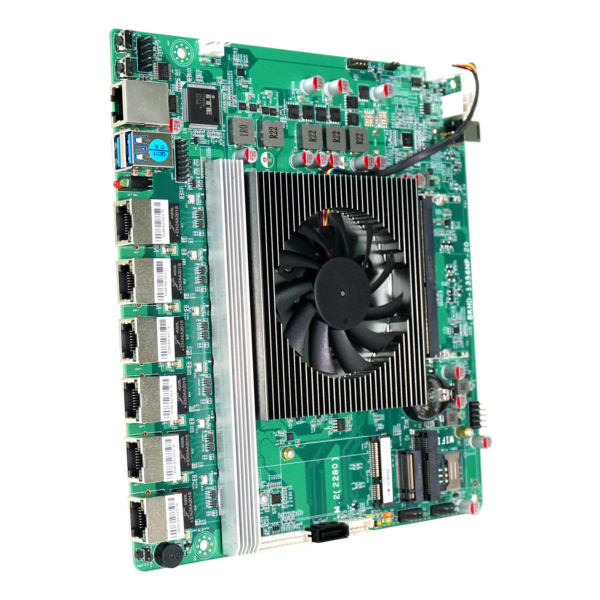

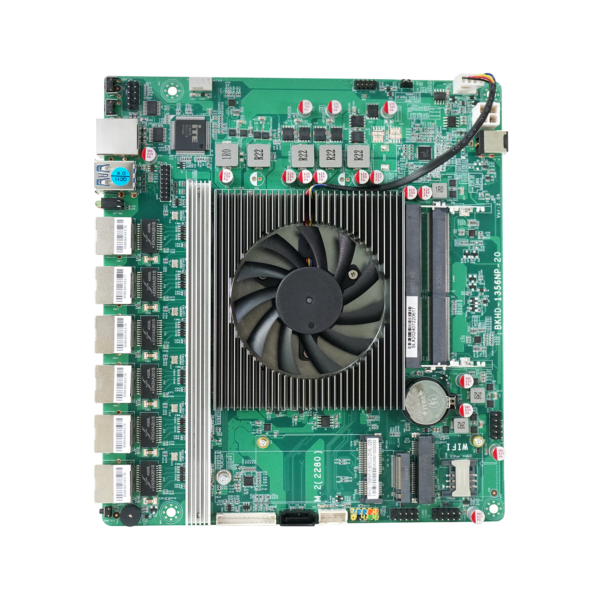

| Product Model | 1356NP-20-6L Motherboard |
|---|---|
| Processor Collection | 8th Generation Intel Core Processors |
| Socket | FCBGA1356 |
| Memory Type | DDR4 SO-DIMM |
| Maximum Memory Capacity | 32GB |
| Maximum Memory Frequency | 2400 MT/s |
| SATA | 1 × SATA 6Gb/s |
| M.2 Storage | 1 × M.2 Key-M 2280, PCIe signal |
| Ethernet | 6 × 2.5GbE RJ45 LAN |
| Network Controller | 6 × Intel I226V |
| mPCIe Expansion | 1 × mPCIe with PCIe signal; 1 × mPCIe with USB 2.0 signal, supports single-sided WiFi module |
| Display Header | 1 × J_VGA, 1 × J_HD |
| Graphics | Intel UHD Graphics |

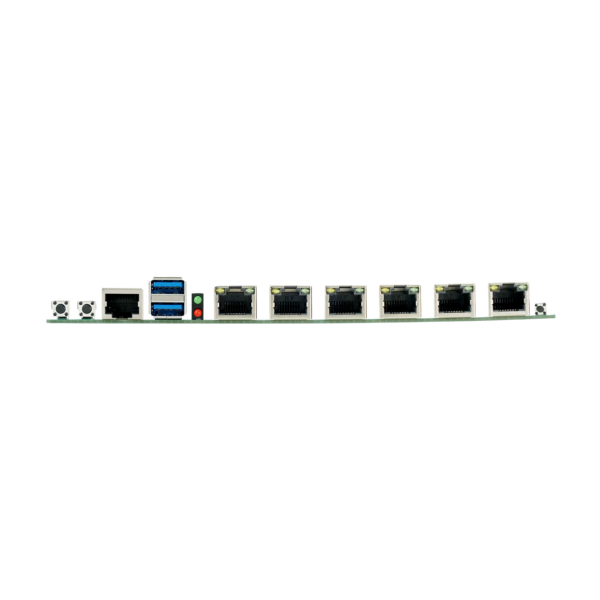

| Backplane USB | 2 × USB-A 3.0 |
| Console | 1 × RJ45 COM-RS232 |
| Backplane Ethernet | 6 × RJ45 LAN |
| Buttons | 1 × Power Button, 1 × Reset Button, 1 × Clear CMOS Button |
| Power Input | 1 × Jack DC 5.5/2.5mm |
| Onboard SATA | 1 × SATA Data Connector, 1 × SATA Power Socket |
| Onboard Headers | 1 × F_PANEL, 1 × J_COM, 3 × F_USB 2.0 expandable to 6 × USB 2.0 ports, 1 × J_GPIO |
| SIM | 1 × SIM Card Slot |
| Fan Headers | 1 × CPU_FAN, 1 × SYS_FAN |
| Power Supply Mode | 1 × ATX 12V 4-pin Connector or 1 × Jack DC 12V |
| Motherboard Size | 180 × 200 mm |
| Operating Temperature | -20°C to 55°C |
| Operating Humidity | 5% to 90% relative humidity, non-condensing |
Typical Applications
Cybersecurity
Six Intel I226V 2.5GbE LAN ports, RJ45 COM, Intel Core processing, and stable embedded design make it suitable for firewall appliances, secure gateways, routing systems, network segmentation, traffic forwarding, and multi-port security platforms.
Network Management
The 6-port 2.5GbE architecture supports multi-network access, LAN/WAN separation, link aggregation, load balancing, routing, switch management, branch network control, and enterprise network monitoring applications.
Industrial Automation Control
COM, GPIO, SIM, USB expansion, SATA storage, wide-temperature operation, and dual power input options make it suitable for industrial gateways, PLC communication, machine networking, production line monitoring, and equipment control systems.
Edge Computing
8th Gen Intel Core performance, DDR4 memory, M.2 PCIe storage, 6 × 2.5GbE networking, dual display headers, and compact 180 × 200 mm board size provide a practical platform for edge computing nodes, local data processing, distributed services, and embedded network systems.
