Current Alternatives
These models are upgrade or build alternatives rather than direct drop-in replacements for the low-power 1264L-NAS-MB. Compare processor platform, networking, memory, expansion, chassis, and power requirements before selection.
Z690-MATX
A high-performance Micro-ATX platform for custom NAS and server builds requiring greater processing, memory, storage density, and PCIe expansion.
- Intel 12th/13th Gen LGA1700 platform
- Up to 128GB DDR4 memory
- 8 x SATA and 4 x M.2
- 4 x 2.5GbE and multiple PCIe slots
C246-NAS-ITX-MB
A DDR4 Mini-ITX platform for customers who prioritize ECC UDIMM support and an established Intel Core or Xeon E-series server configuration.
- Intel 8th/9th Gen Core and Xeon E platform
- ECC UDIMM support with a compatible CPU
- 8 x SATA and 2 x M.2
- 4 x 2.5GbE
1338-NAS-17-MB
A compact Mini-ITX NAS motherboard with an integrated Intel Celeron N5105 processor, six SATA ports, and four 2.5GbE interfaces.
- Integrated Intel Celeron N5105
- Up to 16GB DDR4 SO-DIMM
- 6 x SATA and 1 x M.2
- 4 x 2.5GbE and PCIe expansion
Quick Specs
Specifications

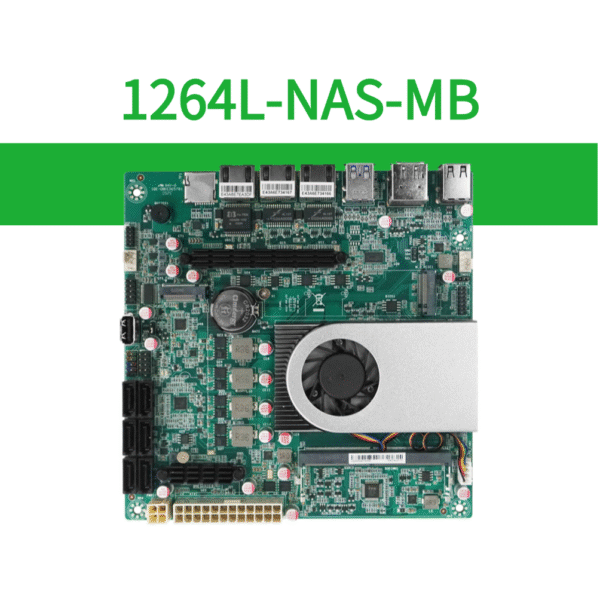

| Product Model | BKHD 1264L-NAS-MB |
|---|---|
| Processor | Integrated Intel N150 processor |
| Processor Package | FCBGA1264, soldered processor |
| Memory | 1 x DDR5 SO-DIMM, up to 16GB, up to 4800 MT/s |
| SATA Storage | 6 x SATA 6Gb/s through an ASM1166 controller using a PCIe x2 link |
| M.2 Storage | 2 x M.2 Key-M 2280, each listed as PCIe Gen3 x1 |
| Additional Storage | 1 x TF card slot |
| Ethernet | 1 x 10GbE RJ45 and 2 x 2.5GbE RJ45 |
| Network Controllers | 1 x Marvell AQC113 for 10GbE; 2 x Intel I226-V for 2.5GbE |
| PCIe Expansion | 1 x PCIe x8 physical slot operating at x4 rate |
| mPCIe Expansion | 1 x mPCIe slot using a USB 2.0 signal |
| Graphics | Intel UHD Graphics integrated in the processor |
| Display Outputs | 1 x DisplayPort, 1 x HD, and 1 x USB-C display-capable port as listed in the data sheet |
| Rear USB | 2 x USB-A 2.0, 1 x USB-A 3.0, and 1 x USB-C |
| Rear Network | 3 x RJ45 total: 1 x 10GbE and 2 x 2.5GbE |
| Onboard SATA | 6 x 7-pin SATA data connectors |
| Onboard Headers | 1 x F_PANEL, 1 x JGPIO, 1 x J_COM (RS232), 1 x TPM, and 1 x F_USB1 supporting two USB 2.0 ports |
| Fan Headers | 1 x CPU_FAN and 2 x SYS_FAN |
| I/O Controller | ITE IT8613E |
| Power Input | ATX 24-pin + ATX 4-pin |
| System Features | Wake-on-LAN, PXE boot, automatic power-on jumper, Clear CMOS jumper, GPIO, RS232, and optional TPM expansion |
| Form Factor | Mini-ITX, 170 x 170 mm |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -20°C to 75°C |
| Humidity | 0% to 95% relative humidity, non-condensing |
Specifications may vary by hardware revision and production batch. Link aggregation, RAID, storage performance, operating-system support, USB-C display, and device compatibility depend on the final hardware and software configuration. Verify the model, PCB revision, processor, and current BIOS before updating firmware.
Typical Applications
NAS and File Servers
Six SATA interfaces, dual M.2 storage, and hybrid 10GbE plus 2.5GbE networking support compact file servers, backups, media libraries, and private-cloud storage.
Creative-Studio Storage
The 10GbE interface can serve high-throughput workstations while the two 2.5GbE ports provide additional paths for client, management, or backup traffic.
Edge and IoT Gateways
GPIO, RS232, mPCIe, TPM expansion, automatic power-on, and wide operating limits support customized edge-computing and industrial gateway deployments.
Monitoring and Local Services
Multi-drive storage, three display outputs, and multi-port networking support appropriately sized monitoring, lightweight service, and local data-processing systems.
Downloads & Support
Important: before updating the BIOS, verify that the file is specifically for the 1264L-NAS motherboard and confirm the processor, PCB marking, hardware revision, and current BIOS version. Installing incompatible firmware may prevent the system from booting.
