1264-NAS-17-MB

Price range: $125.00 through $239.99

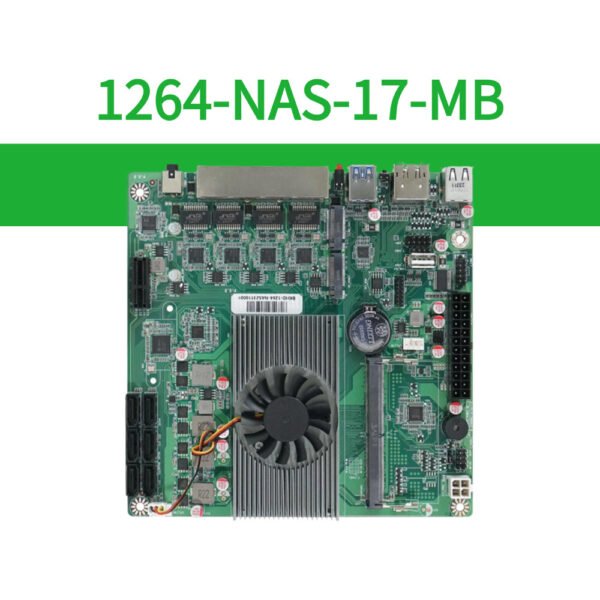

1264-NAS-17-MB is a Mini-ITX industrial motherboard designed for compact network storage (NAS) and edge servers. Equipped with Intel N100/N150 ultra-low power processor, it provides a hybrid storage architecture of 6×SATA+2x M.2 NVMe, creating a silent, high-density, low TCO storage solution for home/small business users.

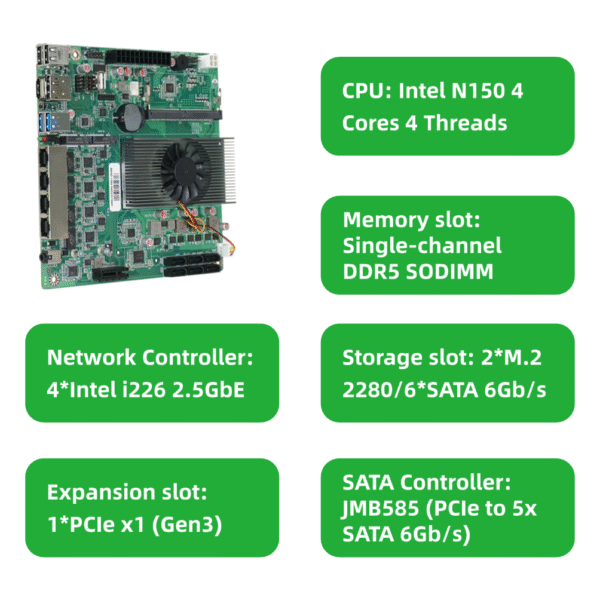

Specifications:

Model 1264-NAS-17-MB
Processor Intel N100/Intel N150
Chipset BKHD-1264-NAS-MB (FCBGA1264)
BIOS AMI EFI BIOS (UEFI boot only)
Memory Slot 1x DDR5 SO-DIMM, Up to 16GB 4800MT/s
Storage Slot 2x M.2 Key-M 2280 SSD/6x SATA 6Gb/s
Ethernet Ports 4x RJ45 2.5GbE (Adaptive)
Ethernet Controller 4x Intel I226-V
Expansion Slot 1x PCIe x1 (Gen3 )
Panel I/O 2x USB-A 3.2; 2x USB-A 2.0; 1x DP port; 1x HDMI port; 4x RJ45; 1x 3.5mm Jack Audio
Onboard I/O 1x USB-A 2.0; 24pin ATX+4pin ATX; 6x 7pin SATA 6Gb/s
Onboard Pins 1x F_USB1(10pin); 1x F_PANEL; 1x J_COM(10pin); 2x CPU/SYS_FAN(4pin); 1x TPM(14pin)
Display Chip Integrated Intel UHD Graphics
Other functions Start auto after power restored; Wake-up on LAN; PXE; Watchdog
Board Size 170*170 (mm) m-ITX
Power Supply ATX 24pin+4pin

SKU: N/A Category: Tags: , , , , Brand:

Core highlights

Quad-port intelligent network: 4x 2.5Gb adaptive Ethernet ports, which can support link aggregation, VLAN isolation backup network and storage traffic, and PXE/WoL to achieve unattended operation and maintenance.

Massive storage interface: Dual M.2 supports high-speed data reading and writing, and can be configured as cache or system disk to accelerate virtual machine/database response. 6× SATA easily builds a massive data storage pool.

Industrial-grade reliable design: Hardware-level protection, supports watchdog timer (0-255 seconds adjustable threshold) to automatically reset the system, and auto-start after power failure (Auto Power-On), ensuring 7×24 hours of uninterrupted operation.

Expansion and security upgrade: PCIe 3.0×1 expansion slot can expand network card, USB expansion card, video capture card, etc. to enhance device functions. Onboard pins include USB, COM serial port, and system fan interface to adapt to industrial control sensors and HMI devices.

Weight 0.65 kg
Dimensions 26 × 26 × 8 cm
Integrated Processor

Intel N100, Intel N150
Bundles

Motherboard only, 8GB RAM 128GB SSD, 8GB RAM 256GB SSD, 16GB RAM 256GB SSD, 16GB RAM 512GB SSD
