Quick Specs
Processor Platform11th Gen Intel Tiger Lake platform
Network6 x Intel I226V 2.5GbE
CoolingActive cooling with one CPU fan
MemoryDDR4 SO-DIMM, up to 64GB
StorageSATA + mSATA + M.2 Key-M 2280
Chassis210 x 200 x 45 mm
Specifications
| Product Model | BKHD OTS-1449NP-6L |
|---|---|
| Product Type | Desktop network appliance |
| Processor Platform | 11th Gen Intel Tiger Lake platform, FCBGA1449 |
| Memory | 2 x DDR4 SO-DIMM slots, up to 64GB, up to 3200 MT/s |
| Storage | 1 x SATA 6Gb/s; 1 x mSATA; 1 x M.2 Key-M 2280 (PCIe signal) |
| Ethernet | 6 x RJ45 2.5GbE with Intel I226V controllers |

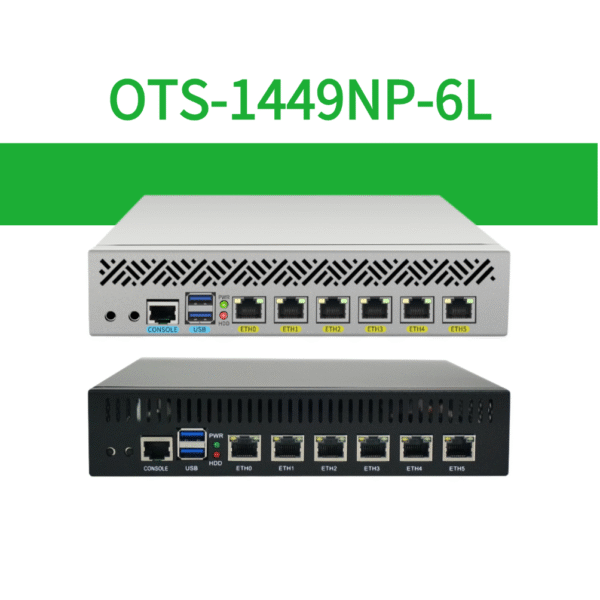

| Front I/O | 6 x RJ45 LAN; 2 x USB-A 3.0; 1 x RJ45 RS232 console |
| Rear I/O | 1 x DC input, 5.5/2.5 mm jack; 1 x VGA output; optional HD output; 2 x reserved antenna openings |
| Display Outputs | VGA standard; HD optional |
| Expansion | 1 x mPCIe |
| Cooling | Active cooling with one CPU fan |
| Chassis Size | 210 x 200 x 45 mm |
| Equipment Weight | 1.25 kg |
| Power | 12V DC, 4A or higher |
| Operating Temperature | 0-50°C |
| Operating Humidity | 5%-90% relative humidity, non-condensing |
Typical Applications
Firewall and Gateway
Six Intel I226V 2.5GbE ports provide separate physical connections for WAN, LAN, and multiple network segments.
Branch Network Nodes
A compact desktop chassis and 12V DC input support branch routing and local network deployments where space is limited.
Industrial Network Edge
The RJ45 RS232 console and multiple Ethernet ports provide connections for industrial network access and device communication.
Local Management and Services
Standard VGA and two USB 3.0 ports support local setup and maintenance; SATA, mSATA, and M.2 interfaces offer storage choices. HD is available as an optional addition.
Downloads & Support
Data Sheet1449NP-20-6L platform specifications and the OTS-1449NP-6L system profile on page 3.
Product Manual1449NP-20-6L motherboard installation, connectors, and BIOS reference.
BIOS / Firmware1449NP-20 V113 BIOS package. Match the board model and hardware revision before updating.
Driver DownloadFind available drivers in the BKHD driver download center.
