Quick Specs
Specifications

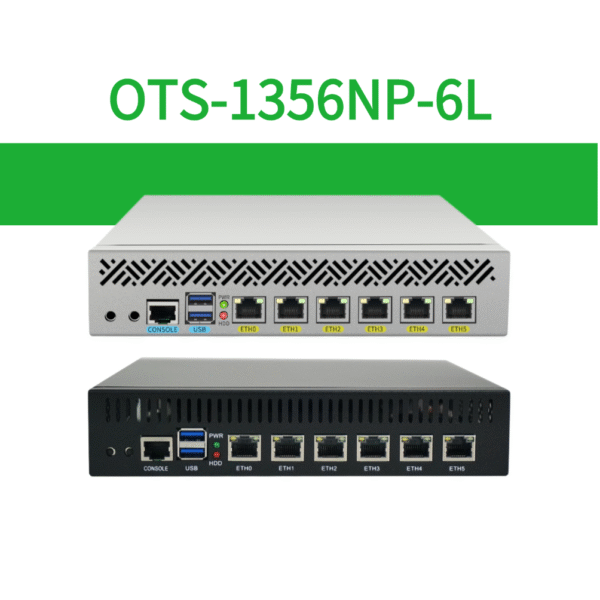

| Product Model | OTS-1356NP-6L |
|---|---|
| Processor Collection | 8th Generation Intel Core Processors |
| Socket | FCBGA1356 |
| Memory Type | DDR4 SO-DIMM |
| Maximum Memory Capacity | 32GB |
| Maximum Memory Frequency | 2400 MT/s |
| SATA | 1 × SATA 6Gb/s |
| M.2 Storage | 1 × M.2 Key-M 2280, PCIe signal |
| Ethernet | 6 × 2.5GbE RJ45 LAN |
| Network Controller | 6 × Intel I226V |
| mPCIe Expansion | 1 × mPCIe with PCIe signal; 1 × mPCIe with USB 2.0 signal, supports single-sided WiFi module |
| Front Panel I/O | 6 × RJ45 LAN, 2 × USB-A 3.0, 1 × RJ45 COM |
| Back Panel I/O | 1 × VGA / 1 × HD Reserved Display, 2 × Reserved Antenna Groups, 1 × Jack DC 5.5/2.5mm |
| Console | 1 × RJ45 COM-RS232 |
| Display Output | 1 × VGA / 1 × HD Reserved |
| Graphics | Intel UHD Graphics |
| Onboard SATA | 1 × SATA Data Connector, 1 × SATA Power Socket |
| Onboard Headers | 1 × F_PANEL, 1 × J_COM, 3 × F_USB 2.0 expandable to 6 × USB 2.0 ports, 1 × J_GPIO |
| SIM | 1 × SIM Card Slot |
| Fan Headers | 1 × CPU_FAN, 1 × SYS_FAN on motherboard |
| Cooling Method | Active Cooling, 1 × CPU Fan |
| Chassis Size | 210 × 200 × 45 mm |
| Motherboard Size | 180 × 200 mm |
| Weight | Equipment Weight: 1.25 KG; Package Weight: 1.65 KG including accessories |
| Power Mode | DC 12V 4A or higher |
| Operating Temperature | 0°C to 50°C |
| Operating Humidity | 5% to 90% relative humidity, non-condensing |
Typical Applications
Cybersecurity
Six Intel I226V 2.5GbE RJ45 LAN ports, compact metal chassis, RJ45 COM, and Intel Core processing make it suitable for firewall appliances, secure gateways, routing systems, traffic forwarding, LAN/WAN separation, and small business network protection.
Network Management
The 6-port 2.5GbE design supports multi-network access, network monitoring, VLAN routing, link aggregation, load balancing, branch office gateway deployment, and centralized management of small to medium-sized network environments.
Industrial Automation Control
COM, GPIO, SIM support, USB expansion, SATA storage, DC 12V input, and active cooling provide practical hardware support for industrial gateways, machine communication, production line monitoring, control terminals, and automation network systems.
Edge Computing
8th Gen Intel Core performance, DDR4 memory, M.2 PCIe storage, 6 × 2.5GbE networking, compact desktop chassis, and reserved wireless expansion make it suitable for edge computing nodes, local data processing, IoT gateways, and embedded network service platforms.
