Quick Specs
Specifications

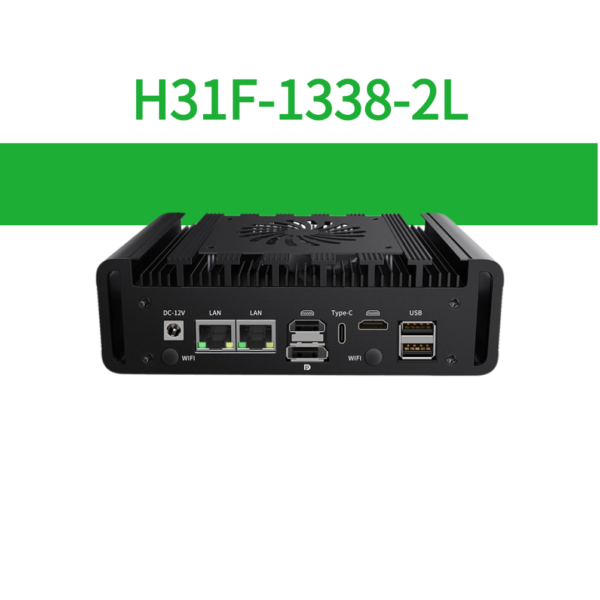

| Product Model | H31F-1338-2L |
|---|---|
| Processor Collection | Intel Celeron Processor N Series |
| Socket | FCBGA1338 |
| Memory Type | DDR4 SO-DIMM |
| Maximum Memory Capacity | 16GB |
| Maximum Memory Frequency | 2933 MHz |
| SATA | 1 × SATA 6Gb/s |
| M.2 Storage | 1 × M.2 Key-M 2280 SSD |
| Ethernet | 2 × 1GbE RJ45 LAN |
| Network Controller | 2 × Realtek RTL8111H |
| Front Panel I/O | 1 × Jack DC_IN, 2 × RJ45 LAN, 1 × DP, 2 × HD, 1 × USB-C, 2 × USB-A 2.0 |
| Back Panel I/O | 1 × Start or Restart Button, 4 × USB-A 3.0, 2 × DB9 COM, 1 × Jack Audio, 2 × Reserved Antenna Holes |
| Display Output | 1 × DP, 2 × HD |
| Graphics | Intel UHD Graphics |
| Serial Port | 2 × DB9 COM; COM1 supports RS232 / RS485 adjustment, COM2 supports RS232 |
| USB | 4 × USB-A 3.0, 2 × USB-A 2.0, 1 × USB-C |
| Audio | 1 × Jack Audio |
| Expansion Interface | 1 × mPCIe |
| SIM | 1 × SIM Card Slot |
| GPIO | 1 × J_GPIO Header |
| Cooling Method | Active Cooling, 1 × Smart Chassis Fan |
| Chassis Size | 178 × 126 × 56 mm |
| Motherboard Size | 121.6 × 121.6 mm |
| Weight | Equipment Weight: 1.25 KG; Package Weight: 1.95 KG including accessories |
| Power Mode | DC 12V 4A or higher |
| Operating Temperature | 0°C to 50°C |
| Operating Humidity | 5% to 90% relative humidity, non-condensing |
Typical Applications
Embedded Terminal
Compact metal chassis, DC 12V input, rich USB, audio, dual display, and serial connectivity make it suitable for embedded terminals, self-service kiosks, control consoles, and commercial edge systems.
IoT Gateway
Dual Gigabit LAN, mPCIe expansion, SIM support, dual COM, and active cooling support IoT gateway, remote connectivity, data collection, and edge communication deployments.
Industrial Automation
Dual DB9 COM, RS232 / RS485 support, GPIO, dual LAN, SATA, M.2 storage, and smart fan cooling make it suitable for PLC communication, machine monitoring, automation control, and factory data acquisition.
Digital Signage
DP plus dual HD display outputs, Intel UHD Graphics, USB-C, multiple USB ports, and reliable active cooling make it ideal for digital signage, HMI panels, information displays, and visual terminals.
