Quick Specs
Specifications

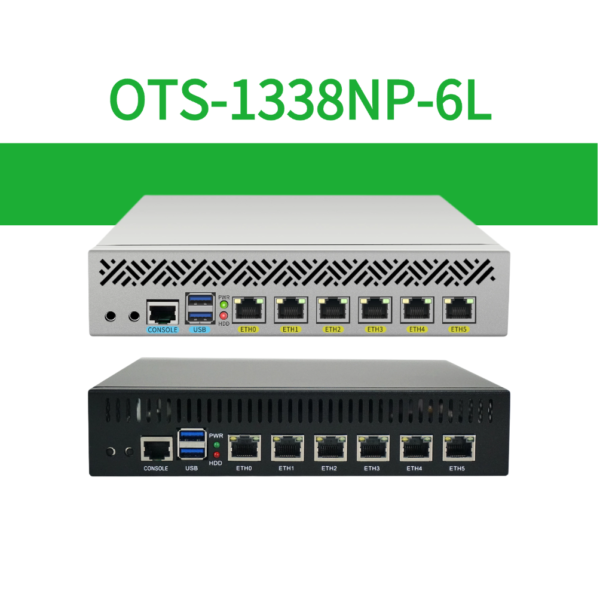

| Product Model | OTS-1338NP-6L |
|---|---|
| Processor Collection | Intel Celeron Processor N Series |
| Socket | FCBGA1338 |
| Memory Type | DDR4 SO-DIMM |
| Maximum Memory Capacity | 16GB |
| Maximum Memory Frequency | 2933 MHz |
| SATA | 1 × SATA 6Gb/s |
| mSATA | 1 × mSATA |
| Ethernet | 6 × RJ45 LAN |
| Network Controller | 6 × Intel I226V 2.5GbE |
| Front Panel I/O | 6 × RJ45 LAN, 2 × USB-A 3.0, 1 × RJ45 COM |
| Back Panel I/O | 1 × VGA / 1 × HD reserved display, 2 × reserved antenna groups, 1 × Jack DC 5.5/2.5mm power input |
| Display Output | 1 × VGA, 1 × HD reserved |
| Graphics | Intel UHD Graphics |
| Console | 1 × RJ45 COM |
| Expansion Interface | 2 × mPCIe, USB 2.0 signal |
| Cooling Method | Active Cooling, 1 × CPU Fan |
| Chassis Size | 210 × 200 × 45 mm |
| Motherboard Size | 180 × 200 mm |
| Weight | Equipment Weight: 1.25 KG; Package Weight: 1.65 KG including accessories |
| Power Mode | DC 12V 4A or higher |
| Operating Temperature | 0°C to 50°C |
| Operating Humidity | 5% to 90% relative humidity, non-condensing |
Typical Applications
Cybersecurity
Six 2.5GbE LAN ports support firewall appliances, VPN gateways, routing, WAN/LAN segmentation, network isolation, UTM systems, and multi-port security deployments.
Network Convergence
Designed for multi-WAN, multi-LAN, load balancing, network aggregation, traffic forwarding, and communication systems that require multiple independent Ethernet ports.
Edge Computing
Intel Celeron N Series, DDR4 memory, SATA, mSATA, and dual mPCIe expansion make it suitable for edge computing nodes, local processing, and distributed network services.
Industrial Automation
Suitable for industrial IoT gateways, factory network control, monitoring systems, remote communication nodes, and automation platforms requiring stable multi-port networking.
