Quick Specs
Processor Platform
6th / 7th / 8th Gen Intel Processors
Network
4 × Intel i210 Gigabit Ethernet
Memory
Up to 32GB DDR4 SO-DIMM 2133 MHz
Industrial I/O
6 × COM + 16-Channel GPIO
Storage
1 × SATA 3.0 + 1 × M.2 Key B+M SSD
Cooling
Fanless Passive Cooling
Specifications
| Product Model | H16x-1356-4L6C |
|---|---|
| Processor Collection | 6th / 7th / 8th Generation Intel Processors |
| Socket | FCBGA1356 |
| Memory Type | DDR4 SO-DIMM 260Pin 1.2V |
| Maximum Memory Capacity | 2 × 16GB |
| Maximum Memory Frequency | 2133 MHz |
| SATA | 1 × SATA 3.0, 6Gb/s |
| M.2 Storage | 1 × M.2 Key B+M, SATA / PCIe SSD |
| Ethernet | 4 × RJ45, 1GbE |
| Network Controller | 4 × Intel i210 |

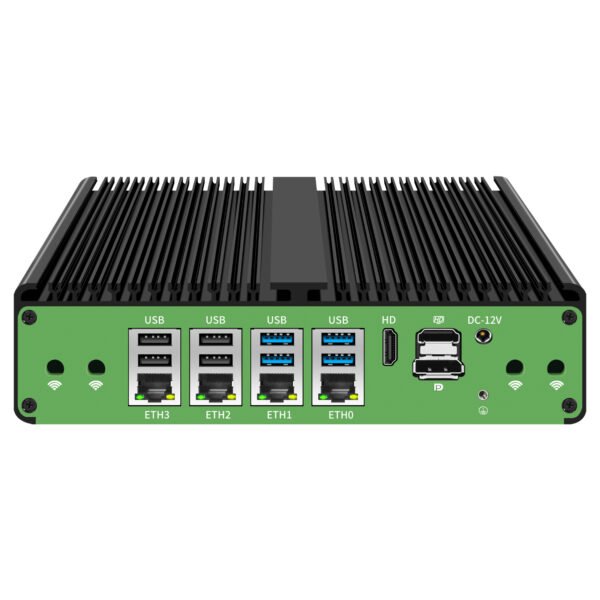

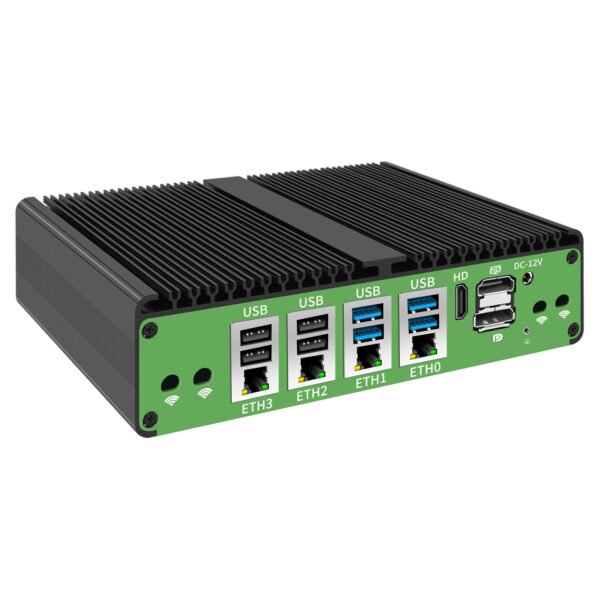

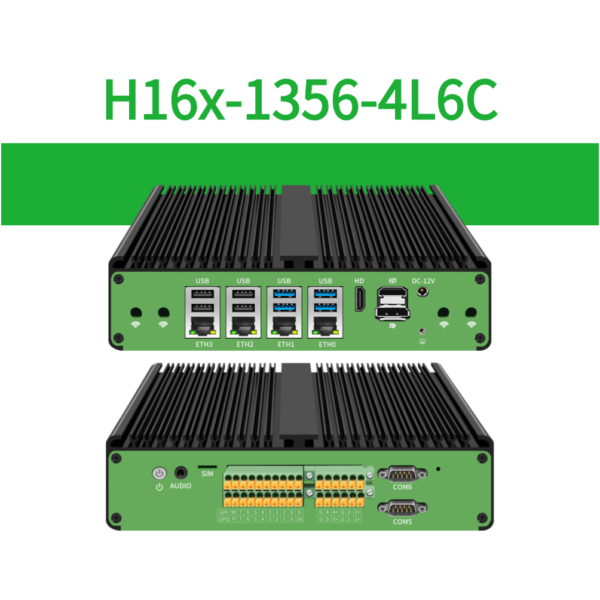

| Front Panel I/O | 4 × RJ45 LAN, 4 × USB-A 3.0, 4 × USB-A 2.0, 1 × DP, 2 × HD, 1 × Jack DC_IN, 4 × Reserved Antenna Holes |

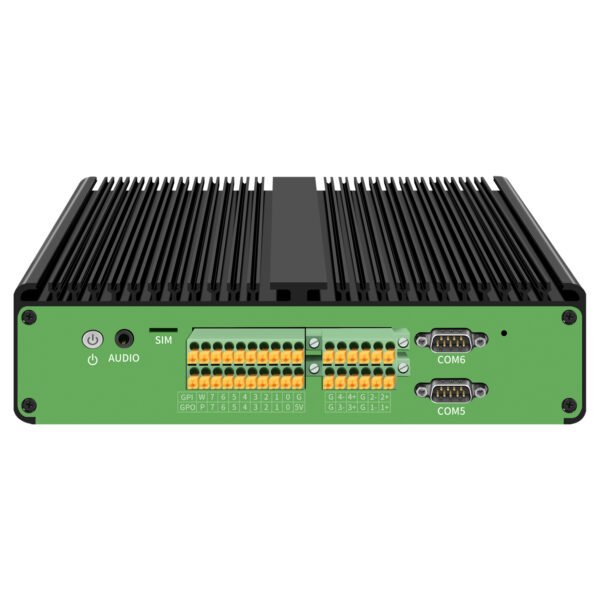

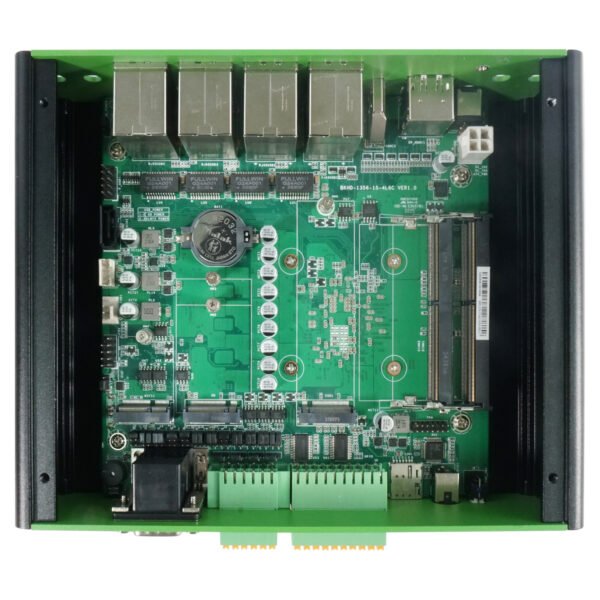

| Back Panel I/O | 1 × Start or Restart Button, 1 × Audio Jack, 1 × SIM Card Slot, 1 × Phoenix Terminal for COM, 2 × DB9, 1 × Phoenix Terminal for 16-Channel GPIO |
| Serial Communication | Up to 6 × COM ports; COM1–COM4 through Phoenix Terminal, COM5–COM6 through DB9; RS232 / RS485 / RS422 support depending on port configuration |
| GPIO | 1 × Phoenix Terminal, 16-Channel GPIO |
| Display Output | 1 × DP, 2 × HD |
| Graphics | Intel HD Graphics |
| Expansion Interface | 1 × M.2 Key-E 2230, 1 × M.2 Key-B 3052 |
| Wireless / Cellular Expansion | Supports wireless or cellular expansion through M.2 Key-E, M.2 Key-B, SIM slot, and reserved antenna holes |
| Onboard I/O | 1 × SATA Data Connector, 1 × SATA Power Socket, 1 × Fan Power Socket, 1 × ATX 4-Pin Connector, 1 × F_PANEL, 1 × F_USB, 1 × J_TPM |
| TPM | TPM 2.0 Header |
| Cooling Method | Passive Cooling, Fanless; airflow required |

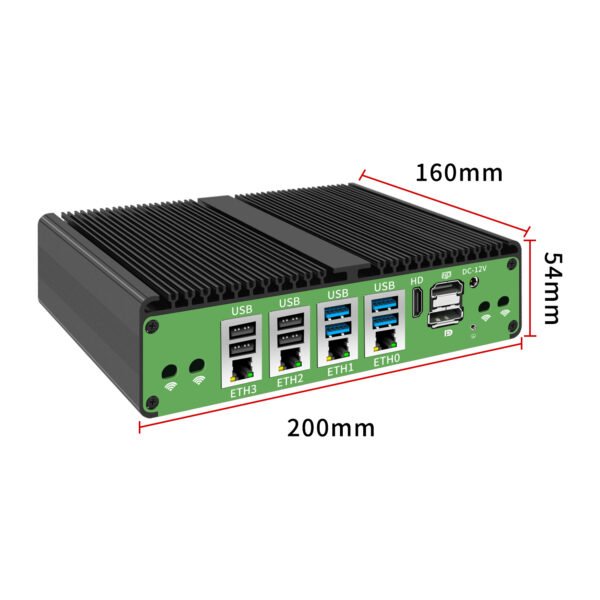

| Chassis Size | 200 × 160 × 54 mm |
| Motherboard Size | 155 × 155 mm |
| Weight | Equipment Weight: 1.35 KG; Package Weight: 2.10 KG including accessories |
| Power Mode | DC 12V 7A or Higher |
| Power Supply Support | DC Jack DC 12V or ATX 4-Pin |
| Operating Temperature | 0°C to 50°C |
| Operating Humidity | 5% to 90% relative humidity, non-condensing |
Typical Applications
Industrial Automation
Built for control cabinets, automation controllers, PLC communication, relay control, device triggering, and industrial data collection.
IIoT Gateway
Supports industrial IoT gateway deployments with four Intel Gigabit LAN ports, cellular expansion, wireless expansion, and rich serial interfaces.
Machine Vision
Suitable for machine vision, image inspection, barcode scanning, visual positioning, and camera-side control systems with multi-LAN and USB I/O.
Edge Computing
Compact fanless design with industrial I/O makes it ideal for edge computing, equipment management, intelligent terminals, and embedded systems.
