H15-2049NP-6L

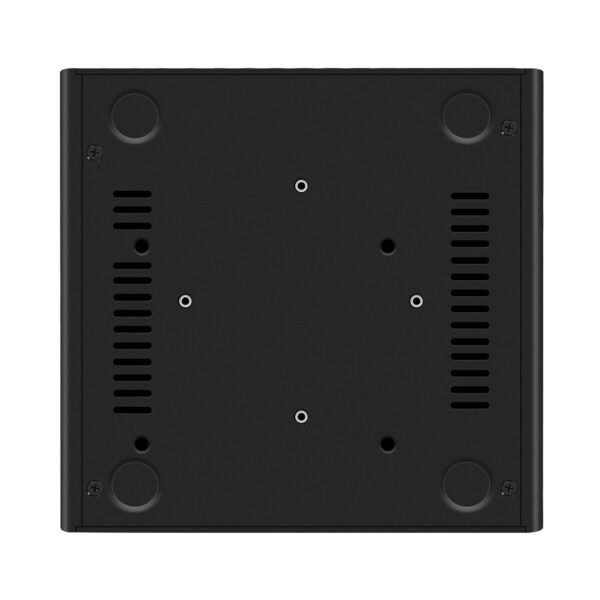

The H15-2049NP-6L model pushes the boundaries of performance for edge devices. It features a compact metal chassis, scalable multi-gigabit networking and an extensive range of expansion interfaces. Its fanless design addresses the traditional trade-offs between performance and size, computing power and quietness, and bandwidth and environmental impact in industrial scenarios. The optional four 10G optical ports pave the way for next-generation network equipment, establishing the H15-2049NP-6L as the ultimate hardware platform for local intelligence in smart manufacturing, smart cities, mobile devices and more.

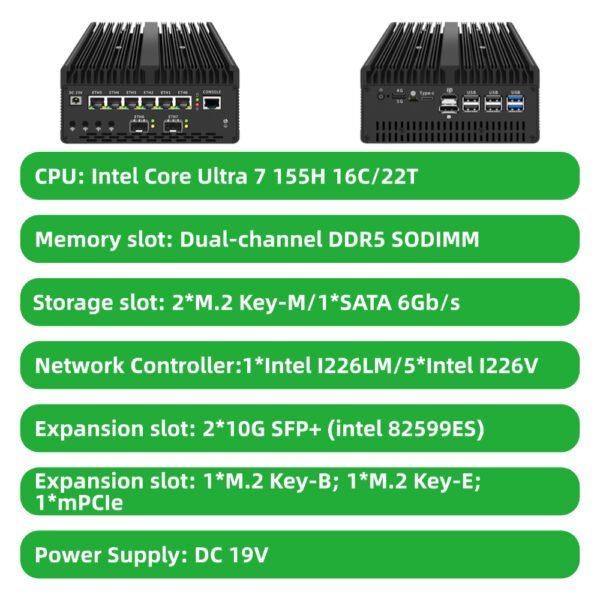

Main Features:

• Powerful Processing: Powered by Intel Ultra 5 125H, Ultra 7 125H, or Ultra 9 185H processors, delivering high compute performance and energy efficiency with Intel’s hybrid architecture.

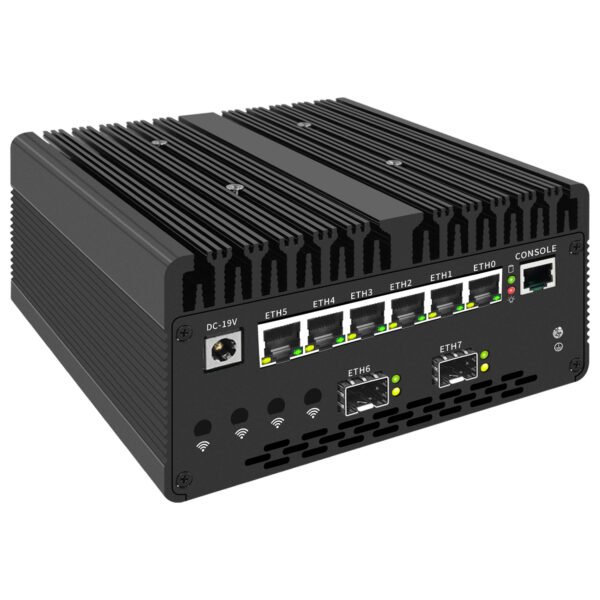

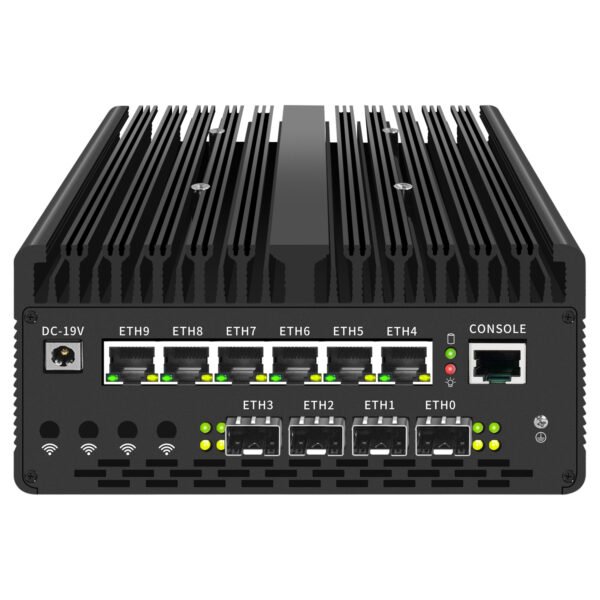

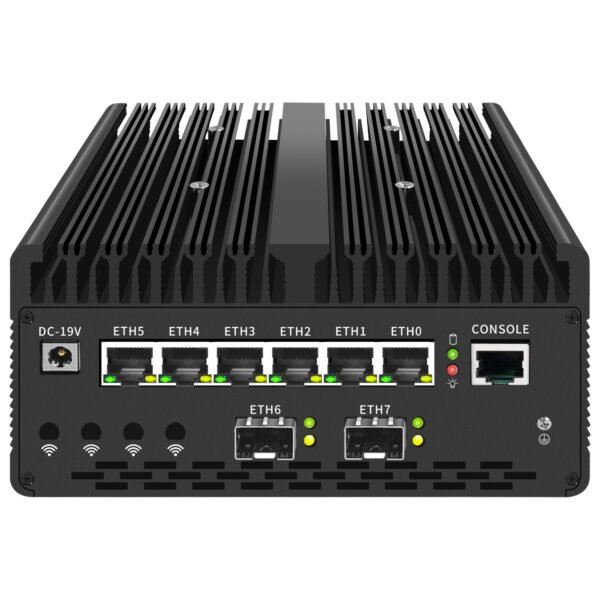

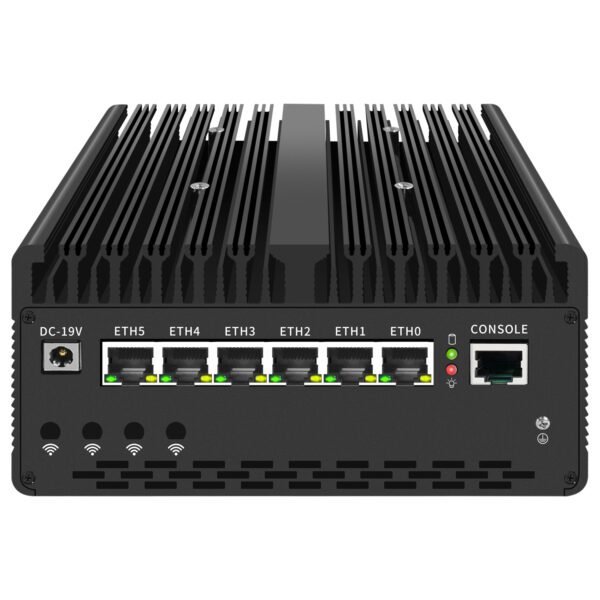

• High-Speed Networking: Features 6x 2.5GbE RJ45 ports (1x Intel I226-LM with vPro, 5x Intel I226-V) for robust connectivity, with optional 2x or 4x 10Gb SFP+ ports (using 82599ES/X710-DA4 controllers) via PCIe x8 expansion for ultra-high-speed networking.
• Advanced Memory: Supports up to 96GB DDR5 SO-DIMM at 5600MT/s in dual-channel configuration, providing high bandwidth and low latency for data-intensive tasks.
• Flexible Storage: Includes 2x M.2 Key-M 2280 SSD slots (PCIe 4.0 x4) for high-speed storage and one SATA 6Gb/s port for additional capacity, meeting diverse storage requirements.
• Integrated Graphics and AI: Equipped with Intel Arc graphics for high-quality visuals and an Intel AI Boost NPU for accelerated AI workloads, enhancing multimedia and machine learning performance.
• Fanless Design: Utilizes passive cooling for silent operation, ideal for noise-sensitive environments like offices, hospitals, or retail spaces, while maintaining thermal efficiency.
• Reliability and Management: Supports auto-start after power restoration, Wake-on-LAN (S4/S5), PXE boot, watchdog timer, and advanced power management (ACPI) for uninterrupted operation and remote management.
