Quick Specs
Processor Platform11th Gen Intel Tiger Lake platform
Network6 x Intel I226V 2.5GbE
CoolingSmart-fan active cooling
MemoryDDR4 SO-DIMM, up to 64GB
Storage1 x SATA + 1 x mSATA + 1 x M.2 Key-M 2280
Chassis178 x 126 x 56 mm
Specifications
| Product Model | BKHD G31F-1449NP-6L |
|---|---|
| Processor Platform | 11th Gen Intel Tiger Lake platform, FCBGA1449 |
| Memory | DDR4 SO-DIMM, up to 64GB, up to 3200 MT/s |
| Storage | 1 x SATA 6Gb/s; 1 x mSATA; 1 x M.2 Key-M 2280 |
| Ethernet | 6 x RJ45 2.5GbE with Intel I226V controllers |

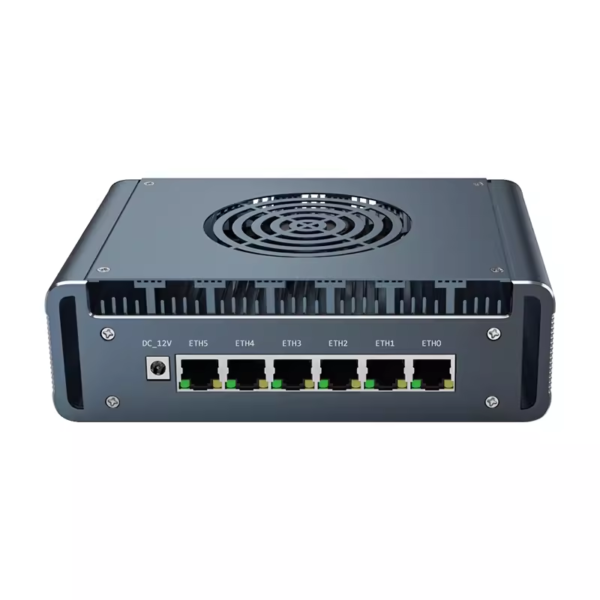

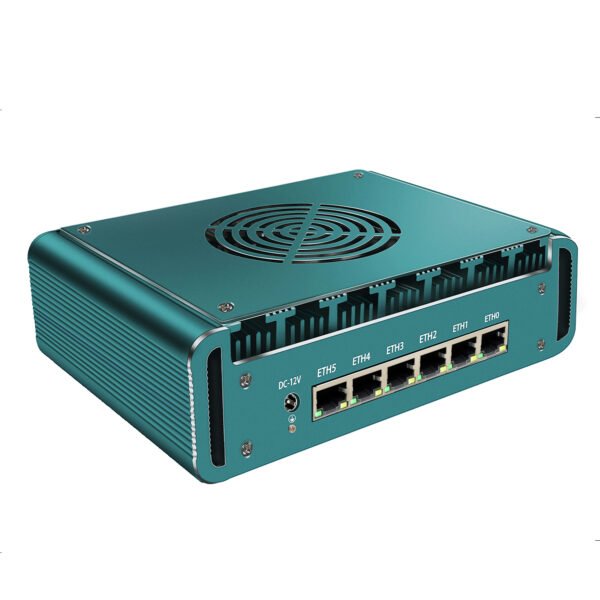

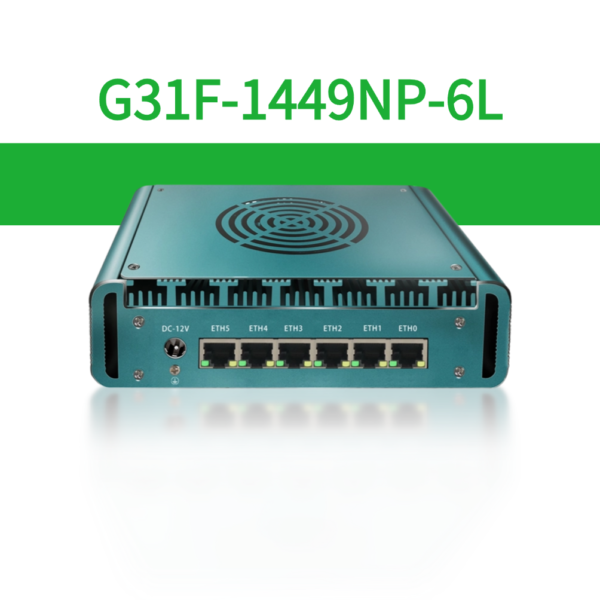

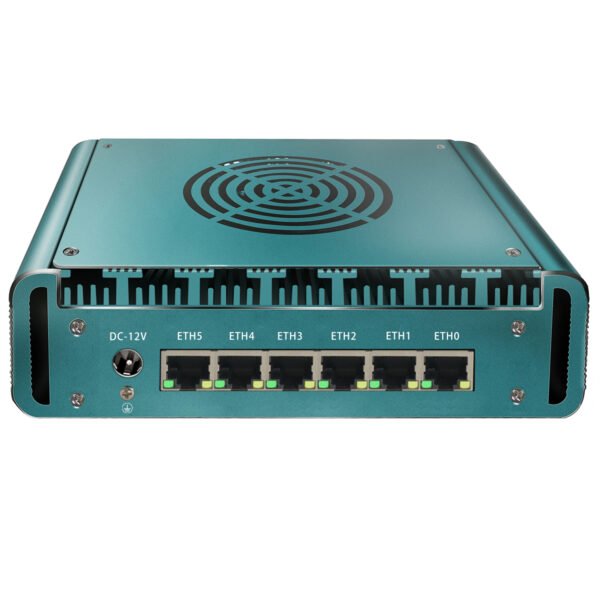

| Front I/O | 6 x RJ45 LAN; 1 x DC input |

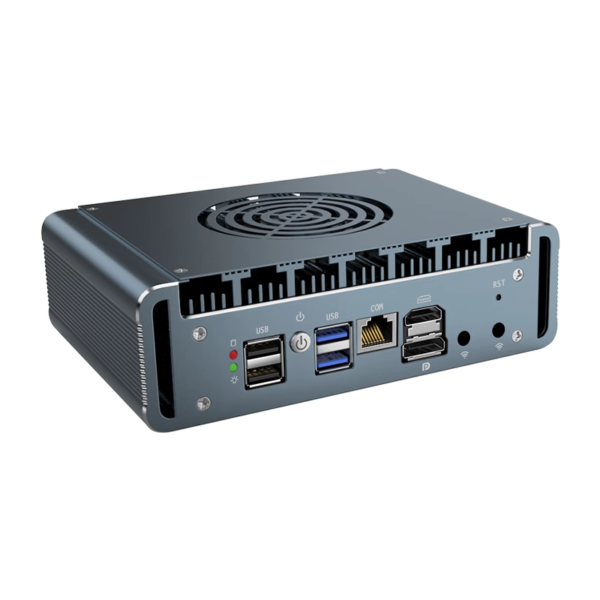

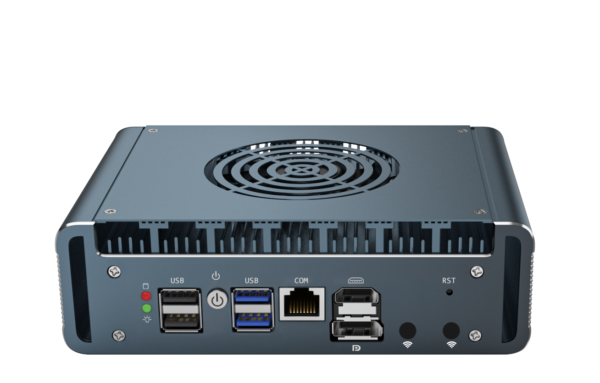

| Rear I/O | Power/restart button; 2 x USB-A 3.0; 2 x USB-A 2.0; 1 x RJ45 RS232 console; 1 x DP; 1 x HDMI display output; 2 x reserved antenna openings |
| Expansion | 1 x mPCIe |
| Cooling | Active cooling with one smart chassis fan |
| Chassis Size | 178 x 126 x 56 mm |
| Equipment Weight | 1.15 kg |
| Power Input | 12V DC; 7A or higher for Pentium, 10A or higher for Core |
| Operating Temperature | 0-50°C |
| Operating Humidity | 5%-90% relative humidity, non-condensing |
Typical Applications
Firewall and Gateway
Six Intel I226V 2.5GbE ports provide separate physical connections for WAN, LAN, and multiple network segments in a desktop firewall or gateway deployment.
Multi-Service Network Node
Smart-fan active cooling helps dissipate heat during sustained workloads, supporting a compact platform for routing, local network services, and edge applications.
Industrial Network Edge
The RJ45 RS232 console, multi-port Ethernet, and 12V DC input support industrial network access, device communication, and local edge deployments.
Embedded Terminal
Two USB 3.0 ports, two USB 2.0 ports, DP and HDMI display outputs, and SATA/mSATA/M.2 storage provide connections for local management and embedded terminals.
Downloads & Support
Data Sheet1449NP-12-6L platform specifications and the G31F-1449NP-6L system profile on page 4.
Product Manual1449NP-12-6L motherboard installation, connectors, and BIOS reference.
BIOS / FirmwareFind firmware by motherboard model and hardware revision in the BKHD download center.
Driver DownloadFind available drivers in the BKHD driver download center.
