Quick Specs
Specifications
| Product Model | 2U-B760-6L |
|---|---|
| Chipset | Intel B760 Chipset |
| Processor Collection | Intel 12th / 13th / 14th Gen Processors |
| Socket | FCLGA1700 |
| Memory Type | 2 × DDR4 SO-DIMM |
| Maximum Memory Capacity | 2 × 32GB, up to 64GB |
| Maximum Memory Frequency | 3200 MT/s |
| SATA | 4 × SATA 3.0 |
| SATA Power | 4 × SATA Power Sockets |
| M.2 Storage | 1 × M.2 Key-M 2280, PCIe Gen4 x4 |
| Ethernet | 6 × 2.5GbE RJ45 LAN |
| Network Controller | 6 × Intel I226V |
| PCIe Expansion | 1 × PCIe x16, PCIe 5.0; 1 × PCIe x4 via FPC Cables |
| mPCIe | 1 × mPCIe, USB 2.0 Signal |
| M.2 Expansion | 1 × M.2 Key-E 2230, USB / PCIe / CNVi; 1 × M.2 Key-B 3052, USB 3.0 Signal |

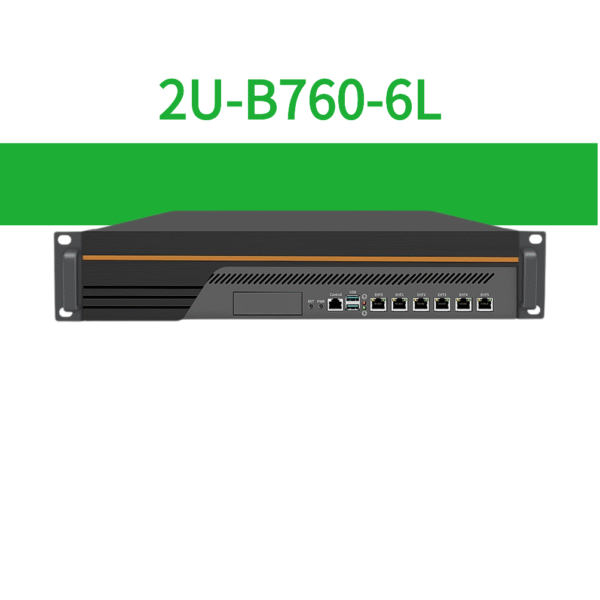

| Front Panel I/O | 6 × RJ45 LAN, 2 × USB-A 3.2, 1 × RJ45 COM, 1 × Reserved Expansion Baffle |

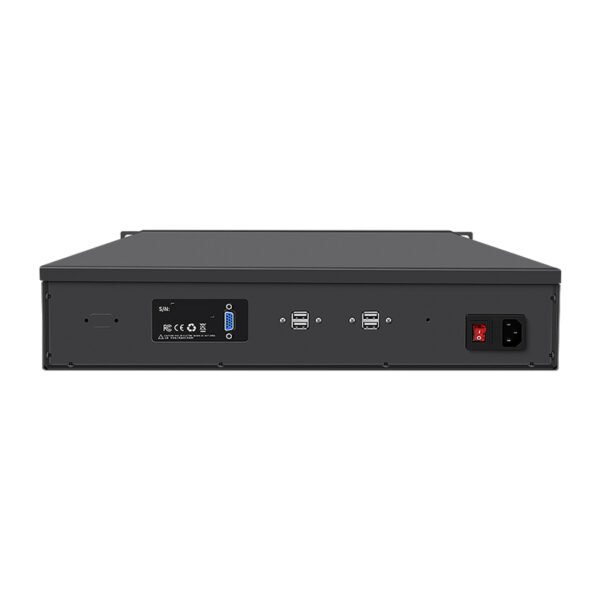

| Back Panel I/O | 1 × VGA / 1 × HD Reserved Display, 2 × Reserved Antenna Groups, 1 × AC Power Socket, 1 × Power Button |
| Console | 1 × RJ45 COM-RS232 |
| Display Output | 1 × VGA / 1 × HD Reserved |
| Onboard I/O | 4 × SATA Data Connectors, 4 × SATA Power Sockets, 1 × USB-A 2.0, 1 × J_VGA, 1 × J_HDMI, 1 × J_eDP or J_LVDS |
| Industrial Headers | 1 × F_PANEL, 1 × J_COM 2, 1 × J_COM 3-6, 1 × F_USB 3.0, 2 × F_USB 2.0, 1 × J_GPIO or J_LPT, 1 × J_I2C, 1 × J_KB/MS, 1 × J_TPM |
| SIM | 1 × Nano SIM Card Slot |
| Fan Headers | 1 × CPU_FAN, 1 × SYS_FAN on motherboard |
| Cooling Method | Active Cooling, 1 × CPU Fan + 2 × Chassis Fans |

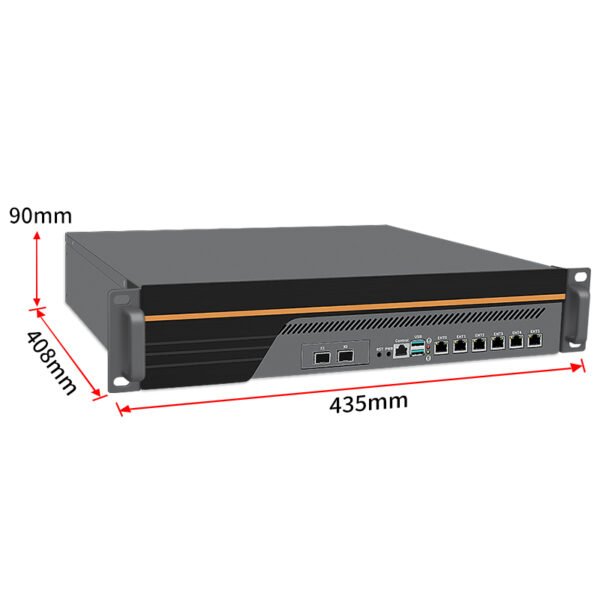

| Chassis Size | 435 × 405 × 88 mm |
| Motherboard Size | 180 × 200 mm |
| Weight | Equipment Weight: 6.40 KG; Package Weight: 8.50 KG including accessories |
| Power Mode | 80V–264V AC input with PFC; Output: DC 24V |
| Operating Temperature | 0°C to 50°C |
| Operating Humidity | 5% to 90% relative humidity, non-condensing |
Typical Applications
Enterprise Security Gateway
Six Intel I226V 2.5GbE LAN ports, Intel 12th / 13th / 14th Gen processor support, and 2U rackmount deployment make it suitable for firewalls, VPN gateways, SD-WAN systems, UTM platforms, multi-WAN routing, VLAN, LACP, virtual bridge, and enterprise network security applications.
Industrial Automation Control
Expandable COM ports, GPIO or LPT, I2C, TPM, SIM, USB headers, DC 19V / 24V motherboard design, and 2U chassis space support industrial control, factory gateways, machine communication, monitoring systems, and automation management platforms.
Edge Computing Nodes
Intel Core processor support, DDR4 memory up to 64GB, M.2 PCIe Gen4 storage, SATA expansion, and 6 × 2.5GbE connectivity provide a stable platform for edge computing, data processing, IoT edge communication, and distributed network services.
Server Cluster
PCIe 5.0 x16 expansion, M.2 and SATA storage, active cooling, 2U rackmount chassis, and dense 2.5GbE networking make it suitable for virtualization gateways, network service hosting, traffic management, server clusters, and data center edge nodes.
