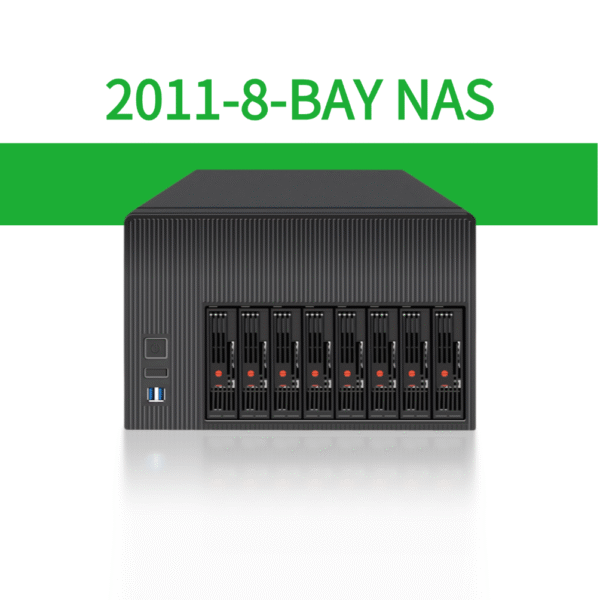

Enterprise NAS and Data Backup
Utilizing 8x SATA drive trays and 2x M.2 NVMe slots, this high-capacity RAID storage system enables file sharing and automated backup. Combined with a Xeon processor for efficient data processing, it’s ideal for small and medium-sized enterprise file management or cloud synchronization environments.
Network Storage and Media Server
4x RJ45 ports support network aggregation and multi-user access, and the PCIe expansion slot allows for adding NICs or HBAs. Ideal for home media centers, video streaming services, or office file servers, the NAS offers remote access and multi-device synchronization.
Virtualization and Small Data Centers
The large memory configuration and multi-core processor support virtual machine operations (such as VMware or Proxmox), making it suitable for edge computing or small cloud deployments. It can stably handle multi-tasking workloads in a wide range of operating temperatures.
Multimedia and Surveillance
Compatible with expansion graphics cards for graphics output and hard drive trays for expanded storage, it’s ideal for security surveillance systems or content creation workstations, enabling video storage and real-time playback.
| Processor | Product Collection | Intel Xeon Processor E5 v4 Family | |
| Sockets Supported | FCLGA2011-3 | ||
| Memory specifications | Memory Type | DDR4 DIMM | |
| Maximum Capacity | 384GB (6*64GB) | ||
| Maximum Frequency | 2400 MT/s | ||
| Storage specifications | SATA | Up to 8*SATA 6Gb/s | |
| M.2 | 2*M.2 Key-M (NVMe) SSD | ||
| Interface | Front Panel | USB | 2*USB-A 3.0 |
| Button | 1*Power Button | ||
| Storage | 8*Hot Swap HDD Bay | ||
| Back Panel | Display | 1*VGA | |
| Audio | 2*Audio Jacks (Line-Out / MIC-In) | ||
| Ethernet | 4*RJ45 | ||
| USB | 2*USB-A 3.0, 2*USB-A 2.0 | ||
| Reserve | 3*PCIe slot | ||
| Power | 1*AC Sockrt | ||
| Extension interface | PCIe | 1*PCIe x16 (Gen3), 1*PCIe x8 Gen3 (x16 slot), 1*PCIe x8 (Gen3) | |
| Cooling Method | Active Cooling | Fan | 1*CPU Fan/3*Chassis Fan |
| System Specifications | Chassis Size | 305*310*220 (mm) | |
| Equipment Weight | Equipment Weight7.50 KG; Package Weight9.80 KG (including accessories) | ||
| Power Mode | Input: 90V~264V AC 50/60HzOutput: 400W MAX | ||
| Work Environment | Temperature | 0~50℃ | |
| Humidity | 5%~90% (Relative humidity, no condensation) | ||
