Quick Specs
Specifications

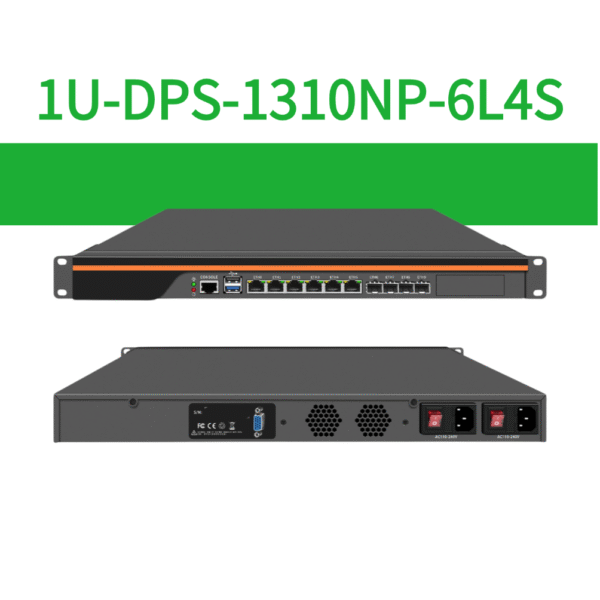

| Product Model | 1U-DPS-1310NP-6L4S |
|---|---|
| Processor Collection | Intel Atom Processor C Series |
| Socket | FCBGA1310 |
| Memory Type | DDR4 SODIMM |
| Maximum Memory Capacity | 64GB |
| Maximum Memory Frequency | 2400 MT/s |
| SATA | 2 × SATA 6Gb/s |
| M.2 Storage | 1 × M.2 Key-M 2280 SSD |
| Ethernet | 6 × RJ45 LAN, 4 × 10Gb SFP+ |
| Network Controller | 4 × Intel I350 optional ByPass, 2 × Intel I211, 4 × Intel X553 |

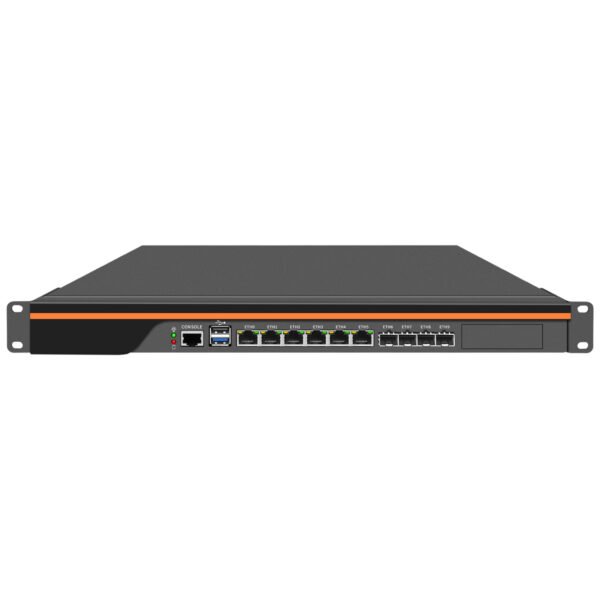

| Front Panel I/O | 1 × USB-A 3.0, 1 × USB-A 2.0, 6 × RJ45 LAN, 4 × SFP+, 1 × RJ45 COM, 1 × PCIe Expansion Baffle |

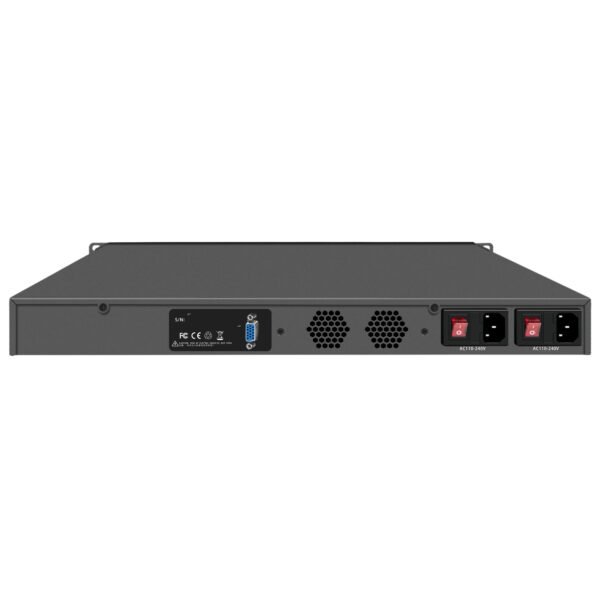

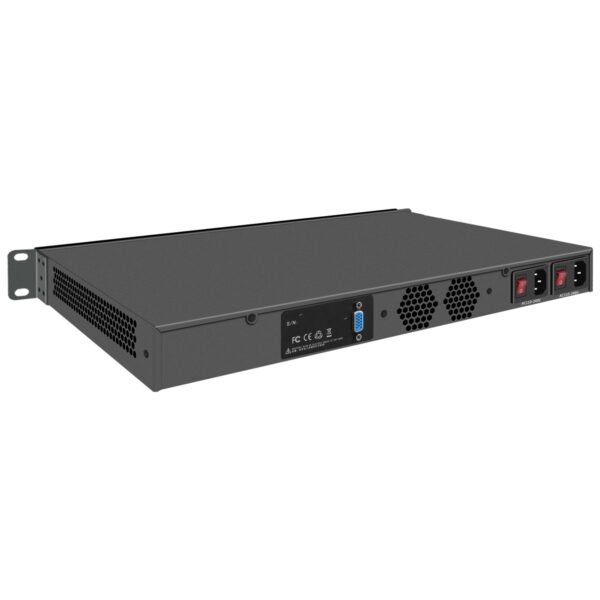

| Back Panel I/O | 1 × VGA, 4 × Reserved Antenna Holes, Modular Dual Power Supply |
| Console | 1 × RJ45 COM |
| Display Output | 1 × VGA |
| Display Chip | Based on onboard ASPEED AST2400 chip |
| PCIe Expansion | 1 × PCIe x8, PCIe Gen3 x4 rate |
| M.2 Key-B | 1 × M.2 Key-B 3052, USB 3.0 signal |
| mPCIe | 1 × mPCIe, PCIe / USB signal |
| Cooling Method | Active Cooling, 1 × CPU Fan + 2 × Chassis Fan |
| Chassis Size | 440 × 410 × 45 mm |

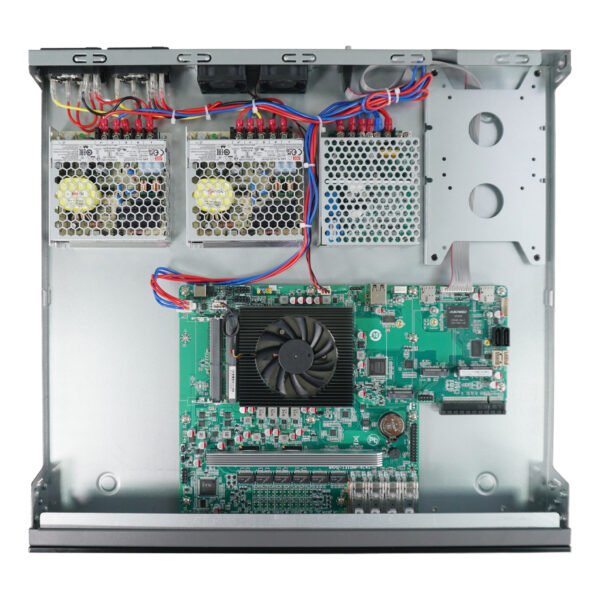

| Motherboard Size | 280 × 209 mm |
| Weight | Equipment Weight: 4.85 KG; Package Weight: 6.50 KG including accessories |
| Power Mode | Modular dual power supply; Input: 100V–240V AC 50/60Hz; Output: 75W MAX |
| Operating Temperature | 0°C to 50°C |
| Operating Humidity | 5% to 90% relative humidity, non-condensing |
Typical Applications
Cybersecurity
Six RJ45 LAN ports, four 10G SFP+ optical ports, Intel Atom C Series processing, optional bypass, and redundant power support firewalls, UTM systems, VPN gateways, SD-WAN platforms, routing, and network isolation for mission-critical deployments.
Edge IoT Gateway
Hybrid copper and 10G optical networking, M.2 Key-B 3052, mPCIe, RJ45 COM, active cooling, and dual power architecture make it suitable for edge IoT gateways, high-bandwidth edge access, remote communication, and industrial data transfer.
Small Virtualization Platform
Up to 64GB DDR4 memory, M.2 SSD, dual SATA, PCIe Gen3 x4 expansion, and 10G SFP+ uplinks provide a reliable platform for virtual firewalls, virtual routers, SD-WAN nodes, lab routing, and compact edge services.
Network Server
1U rackmount chassis, modular dual power supply, high-density RJ45 and SFP+ interfaces, active cooling, M.2 and SATA storage, and PCIe expansion make it suitable for enterprise network servers, storage gateways, traffic management, and data center edge infrastructure.
