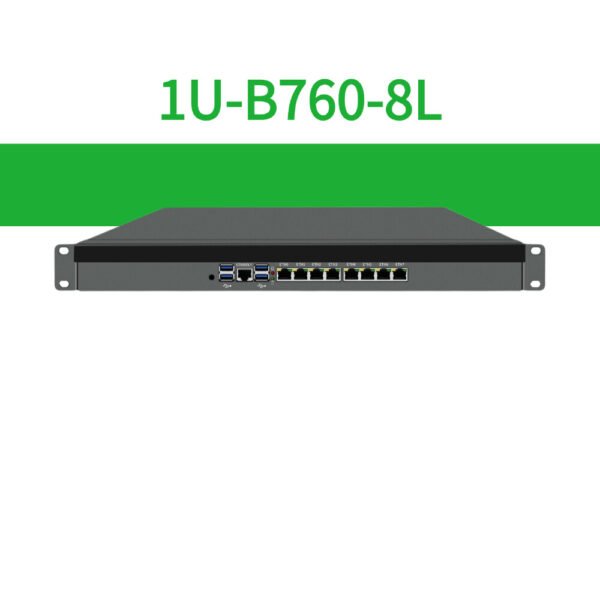

1U-B760-8L

Price range: $345.00 through $1,979.99

The 1U-B760-8L series is a 1U rack solution for full-scenario optical network integration. Through 6S/4S2Q/8S optical network configuration, it meets the stringent requirements from edge aggregation to core transmission. The entire series is equipped with Intel 12/13th generation Core™ processors and 8×2.5GbE electrical ports, integrated with 40G/100G optical network expansion and dual-channel DDR5 memory, providing a “electrical-optical integration, on-demand scalability” rack-level hardware platform for 5G bearer networks, AI training edge nodes and financial high-frequency transactions.

Specifications:

Model 1U-B760-8L-6S/1U-B760-8L-4S2Q/1U-B760-8L-8S
Processor Intel LGA 1700 Socket
Chipset BKHD-B760NP-8LAN (FCLGA1700)
BIOS AMI EFI BIOS (UEFI boot only)
Memory Slot 2x DDR5 SO-DIMM, Up to 96GB 4800MT/s
Storage Slot 2x M.2 Key-M 2280, 4x SATA 6Gb/s
Ethernet Ports 8x RJ45 2.5GbE (Adaptive)
Ethernet Controller 8x Intel I226-V
SFP Ports None/2x 40Gb+4x 10Gb/6x10Gb (Optional)
SFP Controller None/82599ES/X710-DA4/XL710-BM2 (Optional)
Panel I/O 8x RJ45; 4x USB-A 3.2; 1x RJ45 Console
Expansion Slot 2x mPCIe; 1x M.2 Key-B 3052
Display Port 1x VGA; 1x HD (Optional)
Display Chip Integrated Intel UHD Graphics (Depends on the processor)
Other functions Start auto after power restored; Wake-up on LAN; PXE; Watchdog
Case Size 440*355*45 (mm)
Cooling method 1*Processor fan; 2*Chassis fan
Power Supply AC 110V~220V

SKU: N/A Categories: , Tags: , , , , , Brand:

Core highlights

Eight electrical ports intelligent access layer, 8x 2.5GbE independent network ports, support LACP multi-link aggregation. Three optical port configurations are optional to meet different scenarios such as video surveillance aggregation/medium-sized cloud edge/5G DU pool interconnection/AI training nodes/financial transaction gateways/hyper-converged cores.

Storage and computing optimization
Equipped with 12th to 14th generation Core processors and dual-channel DDR5 up to 96GB, supporting 128 Docker containers or 32 lightweight virtual machines. Triple flexible storage, M.2 PCIe 4.0 for real-time database cache, M.2 PCIe 3.0 for operating system disk, 4x SATA to build RAID log archive warehouse.

Industrial-grade reliable design: three-fan design, processor fan + dual ball chassis fan, to ensure continuous full load in high temperature environment. Dual power supply safety guarantee, AC 110~220V compatible with global power grid. Optional chassis upgrade dual power backup. Hardware-level protection, support watchdog automatic reset and millisecond-level power failure self-start.

Weight 6 kg
Dimensions 55 × 38 × 15 cm
Integrated Processor

No processor, Core i3-14100, Core i5-14400, Core i7-13700K, Core i9-13900K
Bundles

NO RAM NO SSD, 8GB RAM 128GB SSD, 16GB RAM 256GB SSD, 16GB RAM 512GB SSD, 32GB RAM 512GB SSD, 32GB RAM 1TB SSD, 64GB RAM 1TB SSD
Expansion Ports

No, 2x 10Gb, 4x 10Gb, 6x 10Gb, 8x 10Gb
