Quick Specs
Specifications

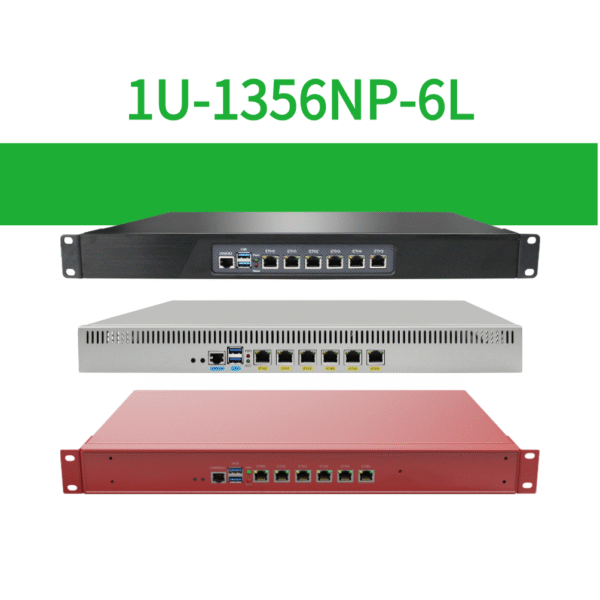

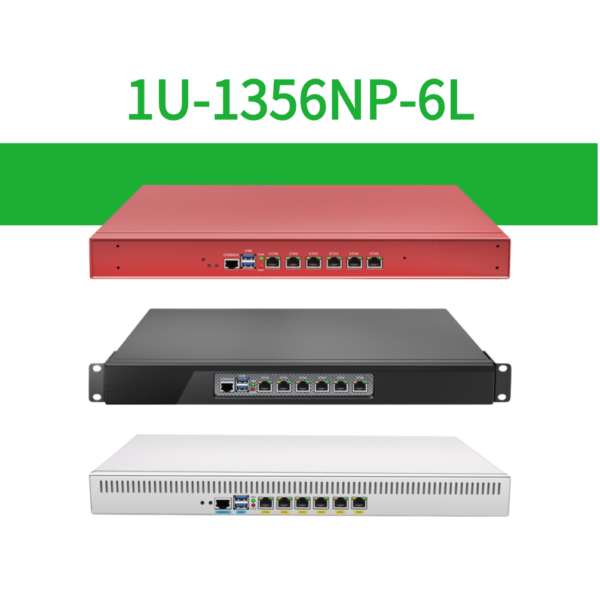

| Product Model | 1U-1356NP-6L |
|---|---|
| Processor Collection | 8th Generation Intel Core Processors |
| Socket | FCBGA1356 |
| Memory Type | DDR4 SO-DIMM |
| Maximum Memory Capacity | 32GB |
| Maximum Memory Frequency | 2400 MT/s |
| SATA | 1 × SATA 6Gb/s |
| M.2 Storage | 1 × M.2 Key-M 2280, PCIe signal |
| Ethernet | 6 × 2.5GbE RJ45 LAN |
| Network Controller | 6 × Intel I226V |
| mPCIe Expansion | 1 × mPCIe with PCIe signal; 1 × mPCIe with USB 2.0 signal, supports single-sided WiFi module |

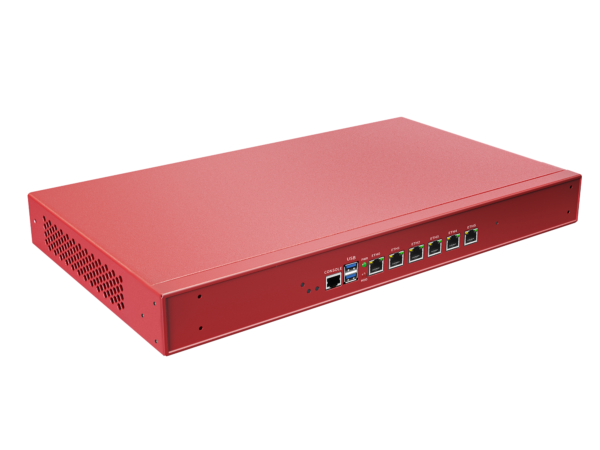

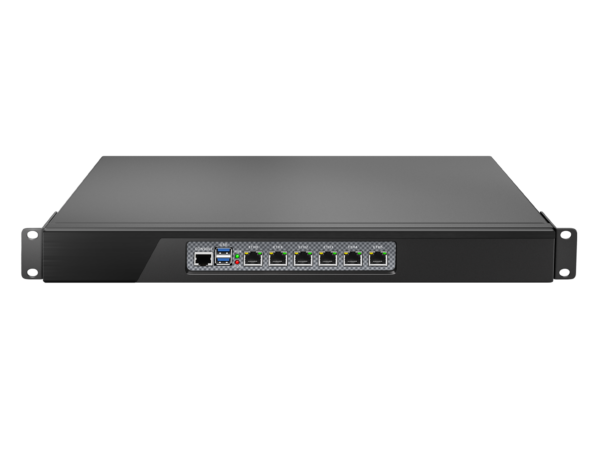

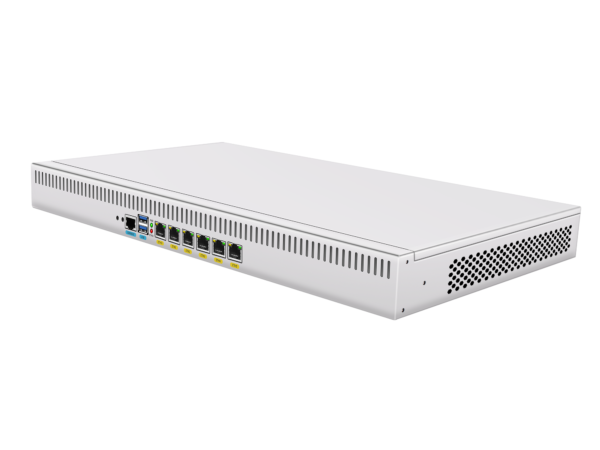

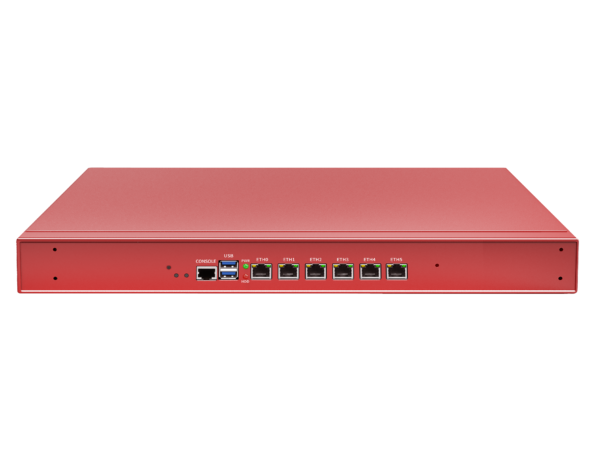

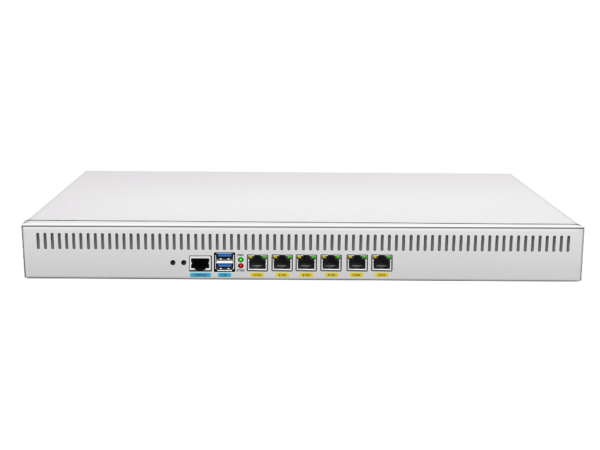

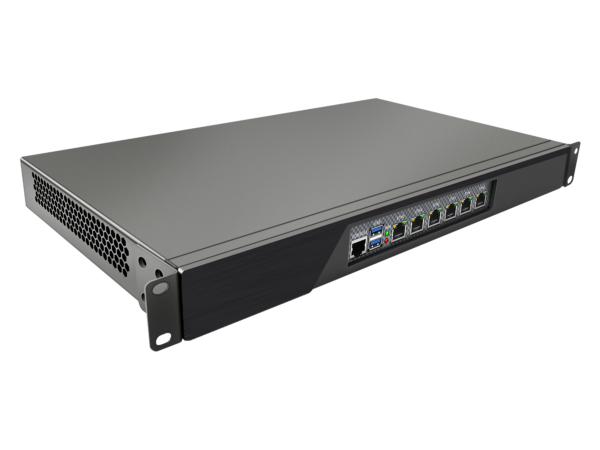

| Front Panel I/O | 6 × RJ45 LAN, 2 × USB-A 3.0, 1 × RJ45 COM |

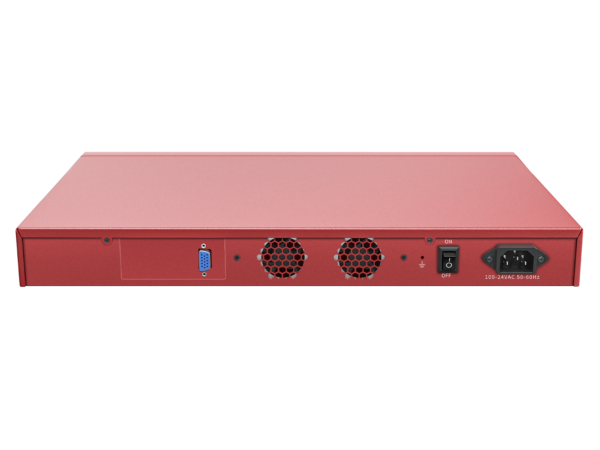

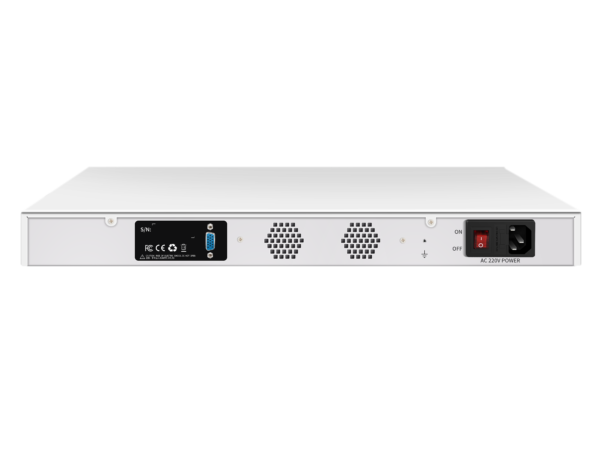

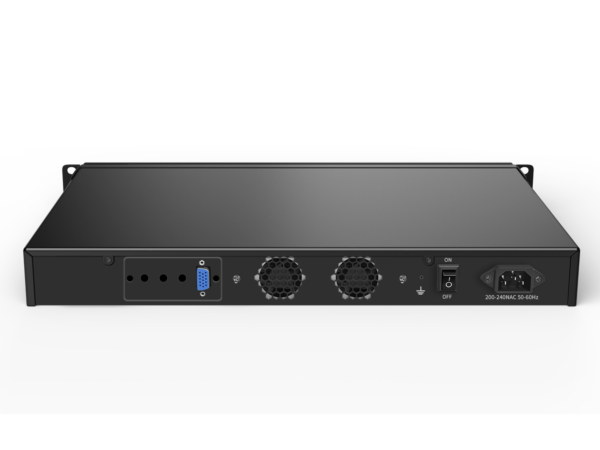

| Back Panel I/O | 1 × VGA / 1 × HD Reserved Display, 2 × Reserved Antenna Groups, 1 × AC Power Socket |
| Console | 1 × RJ45 COM-RS232 |
| Display Output | 1 × VGA / 1 × HD Reserved |
| Graphics | Intel UHD Graphics |
| Onboard SATA | 1 × SATA Data Connector, 1 × SATA Power Socket |
| Onboard Headers | 1 × F_PANEL, 1 × J_COM, 3 × F_USB 2.0 expandable to 6 × USB 2.0 ports, 1 × J_GPIO |
| SIM | 1 × SIM Card Slot |
| Fan Headers | 1 × CPU_FAN, 1 × SYS_FAN on motherboard |
| Cooling Method | Active Cooling, 1 × CPU Fan + 2 × Chassis Fans |
| Chassis Size | 440 × 255 × 45 mm |
| Motherboard Size | 180 × 200 mm |
| Weight | Equipment Weight: 3.80 KG; Package Weight: 4.50 KG including accessories |
| Power Mode | Input: 85V–264V AC, 47–63Hz; Output: DC 12V 4.2A |
| Operating Temperature | 0°C to 50°C |
| Operating Humidity | 5% to 90% relative humidity, non-condensing |
Typical Applications
Firewall Appliance
Six Intel I226V 2.5GbE RJ45 LAN ports, RJ45 COM, 1U rackmount chassis, and active cooling make it suitable for firewall appliances, secure gateways, traffic forwarding, LAN/WAN separation, network segmentation, and small business network protection.
Multi-WAN Router
The 6-port 2.5GbE architecture supports multi-WAN access, link aggregation, load balancing, routing, branch office gateway deployment, and centralized management of small to medium-sized network environments.
Industrial Automation Control
COM, GPIO, SIM support, USB expansion, SATA storage, AC power input, and active cooling provide practical hardware support for industrial gateways, machine communication, production line monitoring, control terminals, and automation network systems.
Edge Communication Device
8th Gen Intel Core performance, DDR4 memory, M.2 PCIe storage, 6 × 2.5GbE networking, 1U rackmount design, and reserved wireless expansion make it suitable for edge communication, local data processing, industrial IoT gateways, and embedded network service platforms.
