Quick Specs
Specifications

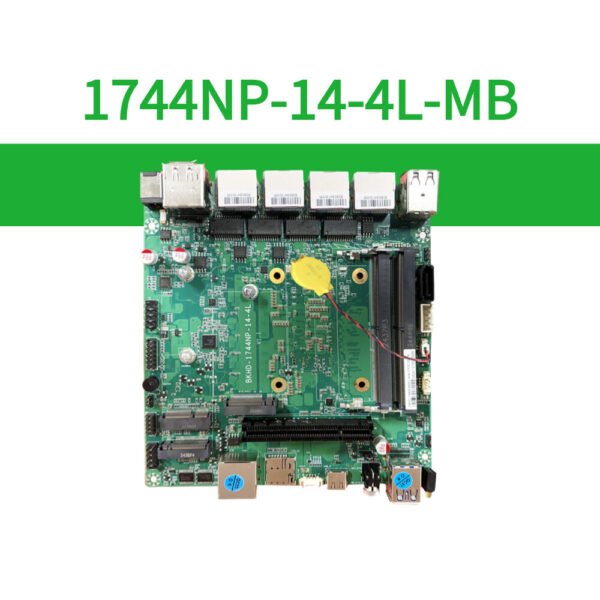

| Product Model | 1744NP-14-4L Motherboard |
|---|---|
| Processor Collection | Intel 12th / 13th Gen Processors |
| Socket | FCBGA1744 |
| Memory Type | DDR5 SO-DIMM |
| Maximum Memory Capacity | 2 × 32GB, up to 64GB |
| Maximum Memory Frequency | 4800 MT/s |
| SATA | 1 × SATA 3.0, 6Gb/s |
| M.2 Storage | 1 × M.2 Key-M 2280, PCIe 4.0 x4 |
| Ethernet | 4 × 2.5GbE RJ45 LAN |
| Network Controller | 4 × Intel I226V |
| PCIe Expansion | 1 × PCIe x8, PCIe 3.0 x4 rate |
| M.2 Key-B | 1 × M.2 Key-B 3052, PCIe 3.0 x1 / USB signal |
| M.2 Key-E | 1 × M.2 Key-E 2230, PCIe 3.0 x1 / USB / CNVi signal |
| Backplane I/O | 2 × USB-A 3.0, 2 × USB-A 2.0, 1 × USB-C 2.0, 1 × DP, 1 × HD, 1 × RJ45 COM RS232, 4 × RJ45 LAN, 1 × SIM Card Slot, 1 × SYS_FAN, 1 × Jack DC 5.5/2.5mm |
| Display Output | 1 × DP, 1 × HD |
| Graphics | Intel UHD Graphics |
| Console | 1 × RJ45 COM RS232 |
| USB | 2 × USB-A 3.0, 2 × USB-A 2.0, 1 × USB-C 2.0, 1 × F_USB 2.0 header |
| Onboard I/O | 1 × SATA Data Connector, 1 × SATA Power Socket, 1 × SIM Card Slot, 1 × CPU_FAN, 1 × F_USB 2.0, 1 × J_GPIO, 1 × J_TPM |
| SIM | 1 × SIM Card Slot |
| Fan Headers | 1 × CPU_FAN, 1 × SYS_FAN |
| TPM | 1 × J_TPM Header |
| GPIO | 1 × J_GPIO Header |
| Power Supply Mode | DC 12V |
| Motherboard Size | 130 × 140 mm |
| Operating Temperature | -20°C to 55°C |
| Operating Humidity | 5% to 90% relative humidity, non-condensing |
Typical Applications
Cybersecurity
Four Intel I226V 2.5GbE RJ45 LAN ports, Intel 12th / 13th Gen processing, DDR5 memory, and PCIe expansion make it suitable for firewall appliances, VPN gateways, SD-WAN nodes, routing, traffic forwarding, and network segmentation.
Edge Computing
High-performance Intel processor platform, DDR5 memory, PCIe 4.0 x4 NVMe storage, USB-C, SIM support, and compact 130 × 140 mm design provide a strong base for edge computing, local data processing, edge AI inference, and distributed edge services.
Industrial Automation
RJ45 COM RS232, GPIO, TPM, SIM, SATA, USB expansion, fan headers, and DC 12V board-level power input make it suitable for industrial control systems, machine communication, factory gateways, monitoring terminals, and harsh-environment embedded systems.
Virtualization Platform
Dual-channel DDR5 memory, high-speed NVMe storage, 4 × 2.5GbE LAN, PCIe x8 expansion, M.2 Key-B, and M.2 Key-E make it suitable for lightweight virtualization, virtual routers, compact server nodes, AI accelerator integration, and high-performance embedded network systems.
