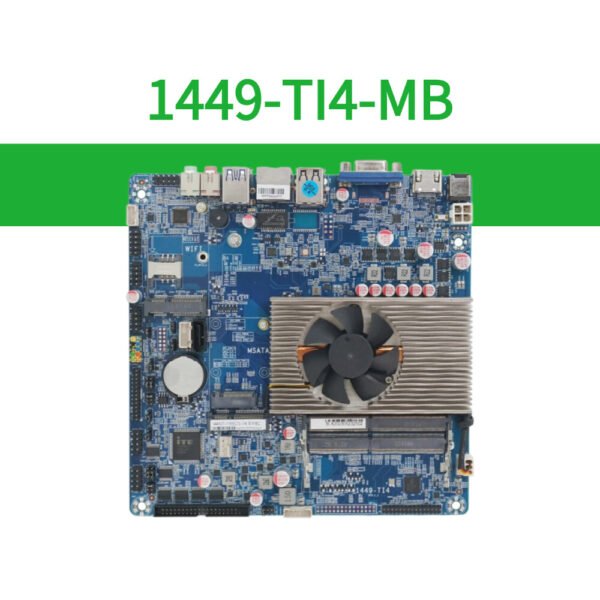

1449-TI4-MB

1449-TI4-MB​ is a highly integrated, flexible and industrial-grade Mini-ITX motherboard. It is equipped with Intel’s 11th-generation Tiger Lake Core processor (i3/i5/i7), and through triple display output and multiple industrial interface expansion, it provides a cost-effective “computing-control-display” integrated solution for smart terminal devices, lightweight automated production lines and edge HMI.

Core highlights

Low-power and high-performance edge computing: Intel’s 11th-generation Tiger Lake Core processor is optimized for energy efficiency, equipped with Intel Iris Xe graphics card, supports 4K hard decoding, and meets machine vision preprocessing and lightweight AI reasoning. Dual-channel DDR4 memory can support up to 64GB, ensuring multi-tasking capabilities, suitable for SCADA systems or edge database operations.

All-round industrial interface hub: Serial port redundant design, up to 6 COM port expansion (RS-232/485 switchable), to meet the parallel access needs of industrial equipment such as PLC, sensors, and barcode scanners. Industrial control basic components, 10-pin GPIO interface supports customized I/O logic (such as emergency stop signal, status light control), 26-pin PRINT interface is compatible with thermal printer/barcode equipment. Three display compatible, HD and VGA (industrial HMI compatible) + LVDS/eDP optional (directly connected to embedded screen), adapting to the mixed deployment environment of new and old display devices.

Wide voltage and compact industrial design: 12V/19V dual voltage switchable, compatible with wide range DC power input, suitable for vehicle-mounted, mobile equipment or unstable power grid environment. Support watchdog timer (abnormal self-recovery), power-on self-start, network wake-up (WoL), PXE diskless startup, ensuring 7×24 hours continuous operation. Minimalist deployment advantage, m-ITX size saves cabinet space, SIM card slot supports 4G module expansion (wireless backup network).

Flexible network and storage architecture: 1LAN or 2LAN version can be selected as needed, 1GbE port meets basic networking and device interconnection needs (such as lightweight MES data collection). Multi-level storage design, NVMe (high-speed system disk) + mSATA (cache/log disk) + SATA (main storage) independent channel design.
