Industrial Automation and Control
Serves as a data acquisition terminal, device controller, or SCADA front-end. Dual serial ports enable direct connection to PLCs and industrial instruments for real-time monitoring and data collection.
IoT Gateway and Protocol Conversion
Connects sensors and industrial devices to perform data aggregation, protocol conversion, and cloud communication—enabling intelligent IoT system integration.
Network Security Appliance
Deployed as a lightweight firewall, VPN gateway, or software router, providing secure and reliable network access for homes and small businesses.
Commercial Retail Terminal
Ideal for POS systems, vending machines, and queue management terminals, supporting multiple peripherals such as printers, barcode scanners, and customer displays.
Digital Signage and Information Display
Functions as a multimedia player or information kiosk, driving high-definition displays for advertising, content delivery, and interactive services.
Security and Access Control Systems
Operates as an access control controller or monitoring terminal, connecting card readers, electric locks, and surveillance cameras for integrated security management.
| Processor | Product Collection | 4th Gen Intel Core Processor | |
| Sockets Supported | FCBGA1168 | ||
| Memory specifications | Memory Type | DDR3L SO-DIMM 1.35V | |
| Maximum Capacity | 8GB | ||
| Maximum Frequency | 1333/1600 MHz | ||
| Storage specifications | SATA | 1*SATA 3.0 (6Gb/s) | |
| mSATA | 1*mSATA | ||
| Network features | Ethernet | 2*1GbE | |
| Controller | 2*Realtek 8111 | ||

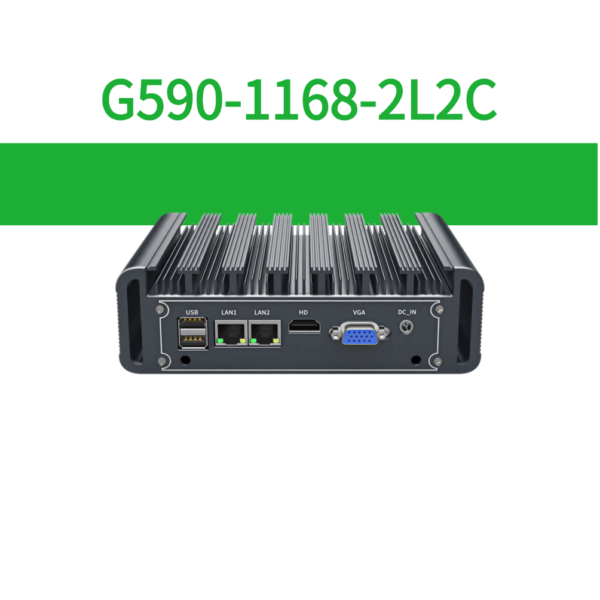

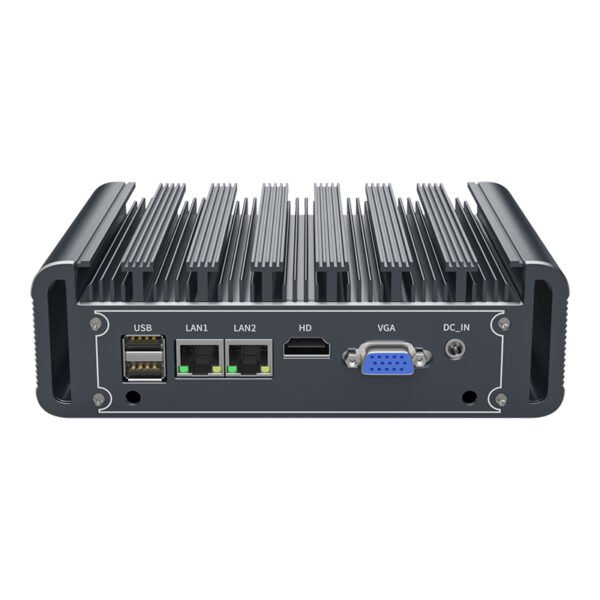

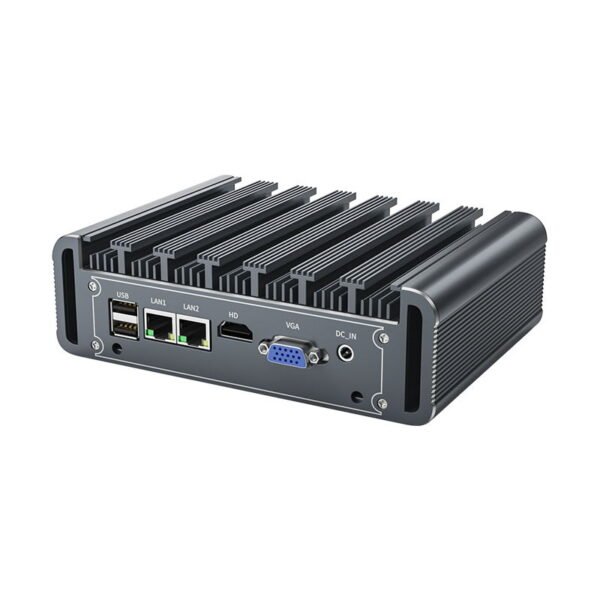

| Interface | Front Panel | Power | 1*Jack DC_IN |
| Display | 1*VGA/1*HD | ||
| Ethernet | 2*RJ45 | ||
| USB | 2*USB-A 2.0 | ||
| Antenna hole | 2*Reserved | ||

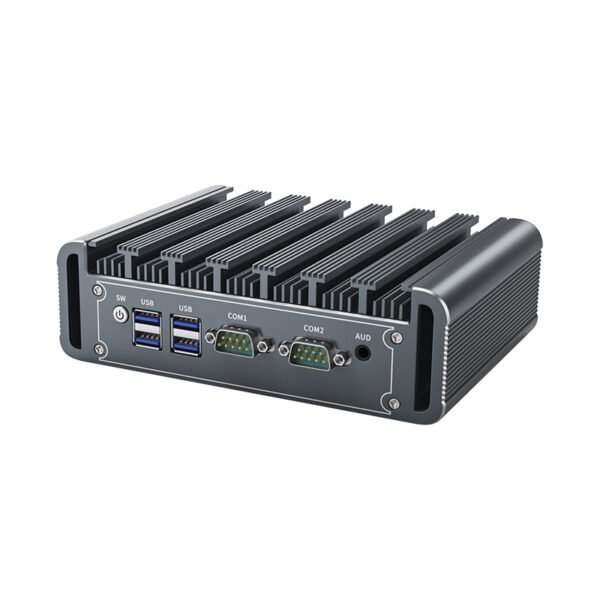

| Back Panel | Button | 1*Start or Restart | |
| USB | 4*USB-A 3.0 | ||
| Serial port | 2*DB9 COM | ||
| Audio | 1*3.5mm Audio | ||
| Extension interface | mPCIe | 1*mPCIe | |
| Cooling Method | Passive Cooling, Fanless (Need air flow) | ||
| System Specifications | Chassis Size | 178*126*56 (mm) | |
| Weight | Equipment Weight 1.15 KG; Package Weight 1.85 KG (including accessories) | ||
| Power Mode | DC | 12V 4A or Higher | |
| Work Environment | Temperature | 0~50℃ | |
| Humidity | 5%~90% (Relative humidity, no condensation) | ||
