Quick Specs
Processor
Intel Celeron Processor J Series
Network
4 × 2.5GbE RJ45 LAN
Memory
Up to 32GB DDR4 SO-DIMM 3200 MT/s
Storage
1 × SATA 3.0 + 1 × M.2 Key-M 2280
Expansion
M.2 Key-B 3052 + M.2 Key-E 2230
Cooling
Active Cooling with Smart Chassis Fan
Specifications

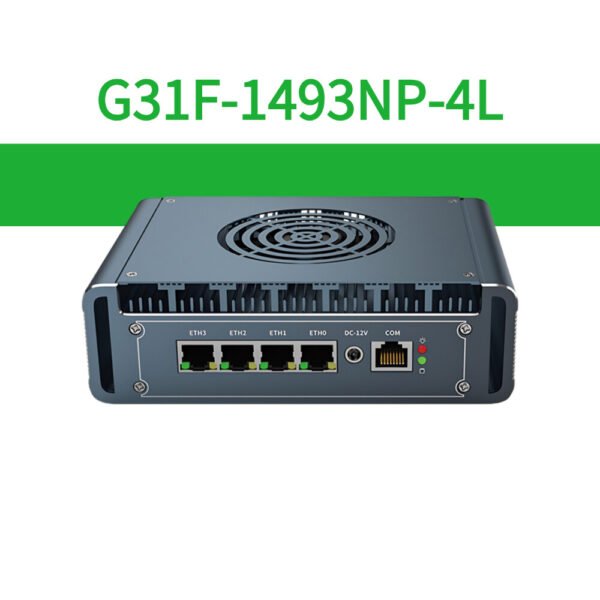

| Product Model | G31F-1493NP-4L |
|---|---|
| Processor Collection | Intel Celeron Processor J Series |
| Socket | FCBGA1493 |
| Memory Type | 2 × DDR4 SO-DIMM |
| Maximum Memory Capacity | 32GB |
| Maximum Memory Frequency | 3200 MT/s |
| SATA | 1 × SATA 3.0, 6Gb/s |
| M.2 Storage | 1 × M.2 Key-M 2280 |
| Ethernet | 4 × RJ45, 2.5GbE |
| Network Controller | 4 × Intel I226V |
| Front Panel | 4 × RJ45 LAN, 1 × Jack DC_IN, 1 × RJ45 RS232 Console |
| Back Panel | 1 × Start or Restart Button, 1 × USB-A 3.0, 3 × USB-A 2.0, 1 × DP, 1 × HD, 2 × Reserved Antenna Holes |
| Expansion Interface | 1 × M.2 Key-B 3052, 1 × M.2 Key-E 2230 on the back of motherboard |
| Cellular Support | 1 × SIM Card Slot |
| Display | 1 × DP, 1 × HD |
| Cooling Method | Active Cooling, 1 × Smart Chassis Fan |
| Chassis Size | 178 × 126 × 56 mm |
| Weight | Equipment Weight: 1.25 KG; Package Weight: 1.95 KG including accessories |
| Power Mode | DC 12V 4A or Higher |
| Operating Temperature | 0°C to 50°C |
| Operating Humidity | 5% to 90% relative humidity, non-condensing |
Typical Applications
Cybersecurity
Built for firewall, VPN, router, and network security deployments requiring four 2.5GbE LAN ports and reliable active cooling.
IoT Edge Gateway
Supports IoT gateway and edge communication scenarios with 4G/5G expansion, Wi-Fi expansion, SIM support, and multi-port wired networking.
Industrial Control Automation
Suitable for industrial automation, PLC communication, data acquisition, edge control, and stable embedded computing applications.
Embedded Terminal
Compact active-cooled chassis makes it ideal for embedded terminals, edge computing nodes, lightweight servers, and continuous full-load operation.
