Quick Specs
Processor Platform11th Gen Intel Tiger Lake platform
Network4 x Intel I226V 2.5GbE
CoolingFanless passive cooling
MemoryDDR4 SO-DIMM, up to 64GB
Storage1 x SATA + 1 x M.2 Key-M 2280
Chassis136 x 126 x 40 mm
Specifications
| Product Model | BKHD G30S-1449NP-4L |
|---|---|
| Processor Platform | 11th Gen Intel Tiger Lake platform, FCBGA1449 |
| Memory | DDR4 SO-DIMM, up to 64GB, up to 3200 MT/s |
| Storage | 1 x SATA 6Gb/s; 1 x M.2 Key-M 2280 |
| Ethernet | 4 x RJ45 2.5GbE with Intel I226V controllers |

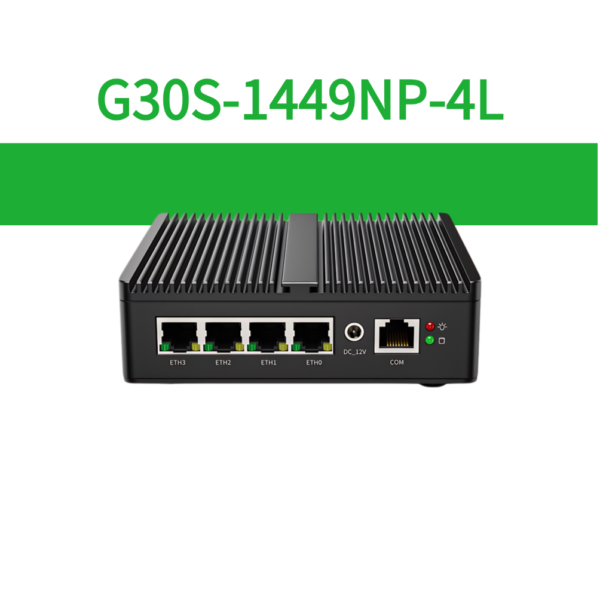

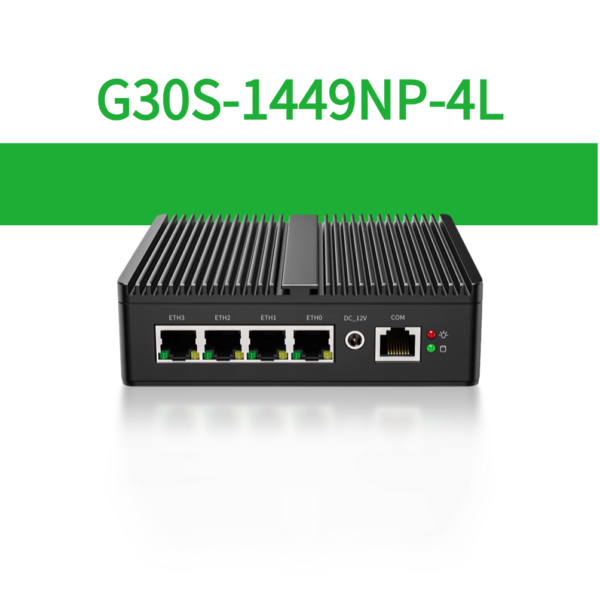

| Front I/O | 4 x RJ45 LAN; 1 x RJ45 RS232 console; 1 x DC input |

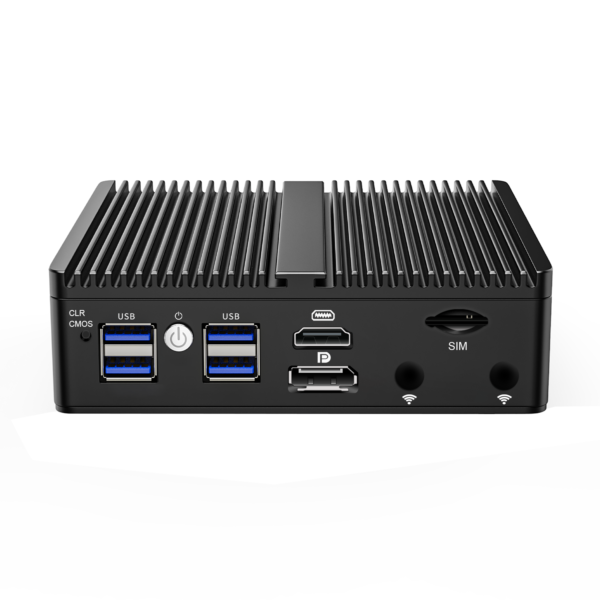

| Rear I/O | Power/restart button; 4 x USB-A 3.0; 1 x DP; 1 x HD display output; 2 x reserved antenna openings |
| Expansion | 1 x mPCIe |
| Cooling | Passive, fanless; airflow required |
| Chassis Size | 136 x 126 x 40 mm |
| Equipment Weight | 0.65 kg |
| Power Input | 12V DC, 4A or higher |
| Operating Temperature | 0-50°C |
| Operating Humidity | 5%-90% relative humidity, non-condensing |
Typical Applications
Firewall and Gateway
Four 2.5GbE ports provide separate physical connections for WAN, LAN, and segmented networks in a compact firewall or gateway deployment.
Industrial Network Edge
The small fanless chassis and RJ45 RS232 console suit network access and control roles in space-limited industrial installations.
Branch Network Node
Four independent 2.5GbE connections give small branches and distributed sites flexible network-port assignments.
Embedded Terminal
USB and display outputs support compact embedded terminals, industrial displays, and local management interfaces.
Downloads & Support
Data SheetG30S system dimensions, interfaces, power, cooling, and operating specifications.
Product Manual1449NP-12-4L motherboard installation, connectors, and BIOS reference.
BIOS / Firmware1449NP-12-4L BIOS package.Check the board model and hardware revision before updating.
Driver DownloadFind available drivers in the BKHD driver download center.
