Quick Specs
Specifications

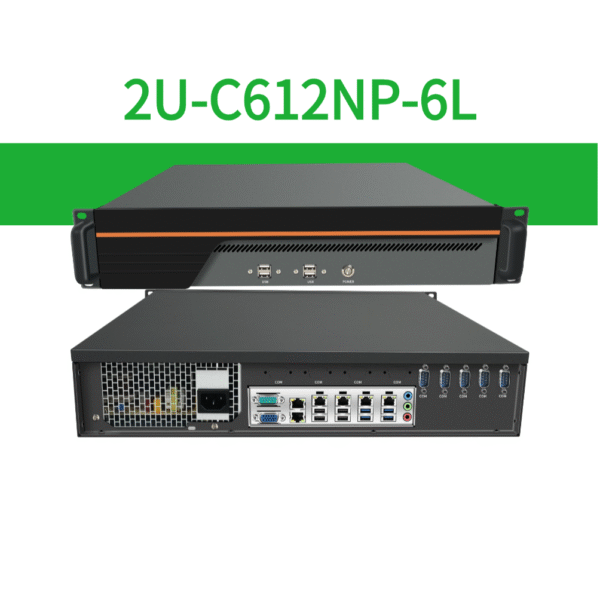

| Product Model | 2U-C612NP-6L |
|---|---|
| Processor Collection | Intel Xeon Processor E5 v4 Family |
| CPU Socket | FCLGA2011-3 |
| Memory Type | DDR4 DIMM |
| Maximum Memory Capacity | 64GB |
| Maximum Memory Frequency | 2400 MT/s |
| SATA Storage | Up to 4 × SATA 6Gb/s in 2U chassis |
| M.2 Storage | 2 × M.2 Key-M NVMe SSD |
| Ethernet | 6 × 2.5GbE RJ45 LAN |
| Network Controller | 6 × Intel I226V |
| PCIe Expansion | 1 × PCIe x16 |

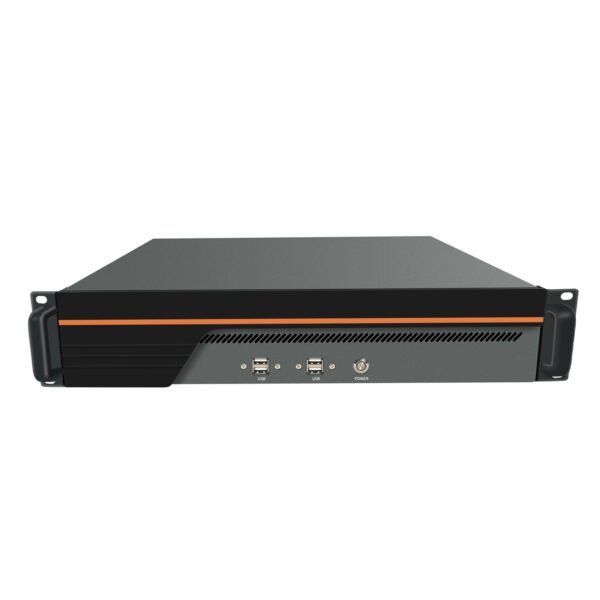

| Front Panel USB | 4 × USB-A 2.0 |
| Front Panel Button | 1 × Power Button |

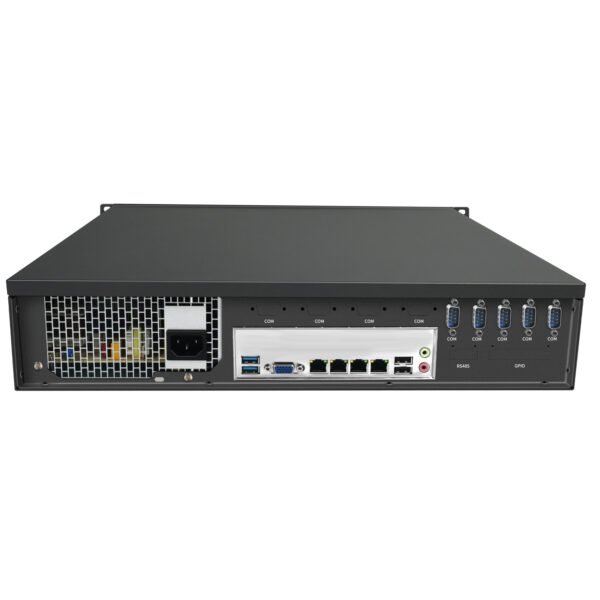

| Rear Ethernet | 6 × RJ45 LAN |
| Rear USB | 4 × USB-A 3.0, 4 × USB-A 2.0 |
| Display Output | 1 × VGA |
| Graphics | Based on onboard ASPEED AST2400 |
| COM | 1 × DB9 COM standard, up to 5 × DB9 COM reserved |
| Serial Mode | RS232 / RS485 supported through motherboard jumper configuration |
| Audio | 3 × Audio Jacks, Line-Out / MIC-In / Line-In |
| Security | TPM Header, Case Open Header |
| Motherboard Internal COM | 5 × JCOM headers |
| Internal USB | 2 × F_USB 2.0 headers |
| Cooling Method | Active Cooling, 1 × CPU Fan + 3 × Chassis Fans |
| Power Supply | Input: 200V–240V AC 50/60Hz, Output: 200W MAX |
| Chassis Size | 435 × 405 × 88 mm |
| Equipment Weight | 6.40 KG |
| Package Weight | 8.50 KG including accessories |
| Operating Temperature | 0°C to 50°C |
| Operating Humidity | 5% to 90% relative humidity, non-condensing |
Typical Applications
Server Node
Intel Xeon E5 v4 processing, DDR4 memory, dual M.2 NVMe storage, SATA expansion, and PCIe x16 provide a stable platform for application servers, enterprise computing nodes, local data processing, and rackmount infrastructure deployments.
Network Firewall
Six Intel I226V 2.5GbE LAN ports, Xeon processing capability, PCIe expansion, and 2U rackmount design make it suitable for firewall appliances, secure gateways, routing systems, traffic management, and enterprise network security platforms.
Virtual Machine Cluster
Xeon multi-core performance, DDR4 memory, dual NVMe SSD support, multiple 2.5GbE interfaces, and PCIe expansion make the system suitable for virtualization hosts, virtual routers, multi-service server environments, and private infrastructure nodes.
Industrial Automation
Multiple COM interfaces with RS232 / RS485 support, USB connectivity, TPM, PCIe expansion, active cooling, and rackmount construction make it suitable for industrial control hosts, factory communication servers, machine control, and industrial edge computing systems.
