Specifications

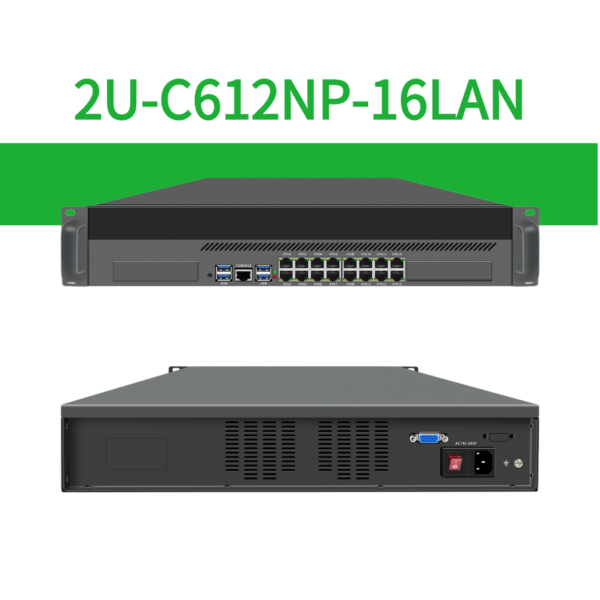

| Product Model | 2U-C612NP-16LAN |
|---|---|
| Processor Collection | Intel Xeon Processor E5 v4 Family |
| CPU Socket | Dual FCLGA2011-3 Socket |
| CPU Requirement | The two CPU models must be the same for stable operation |
| Memory Type | 4 × DDR4 SO-DIMM, dual-channel design |
| Maximum Memory Capacity | 4 × 32GB, up to 128GB |
| Maximum Memory Frequency | 2400 MT/s |
| SATA | 2 × SATA 6Gb/s |
| M.2 Storage | 2 × M.2 Key-M NVMe SSD |
| Ethernet | 16 × 2.5GbE RJ45 LAN |
| Network Controller | 16 × Intel I226V |
| PCIe Expansion | 1 × PCIe x16, 1 × PCIe x8 |
| mPCIe Expansion | 2 × mPCIe |
| M.2 Key-E | 1 × M.2 Key-E |

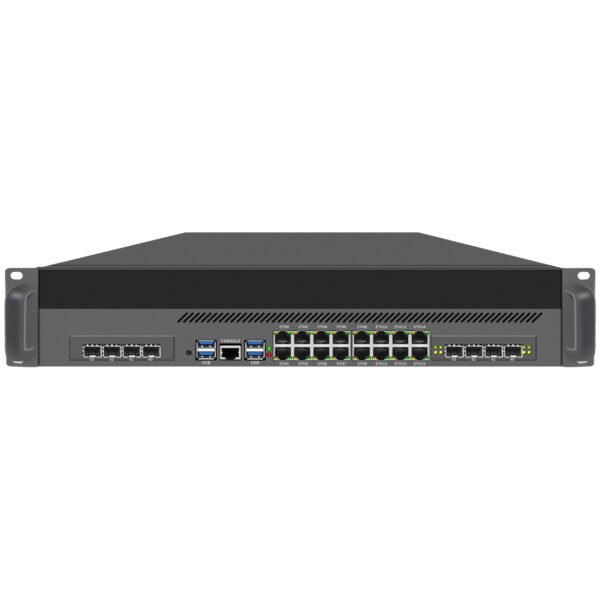

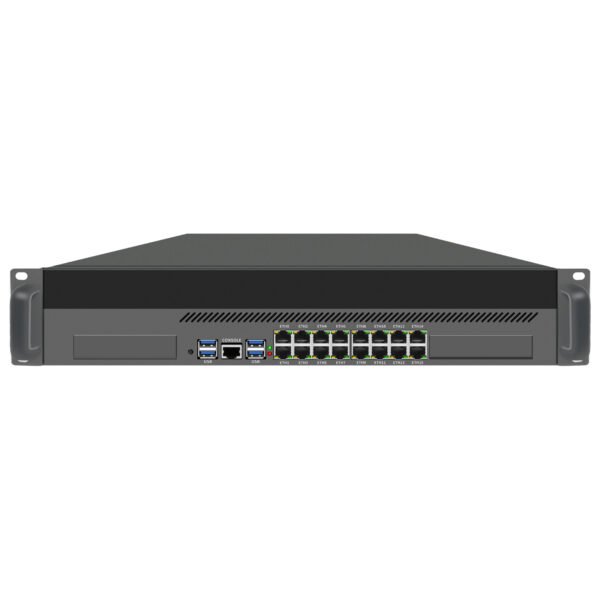

| Front Panel I/O | 4 × USB-A 3.0, 16 × RJ45 LAN, 1 × RJ45 COM, 2 × PCIe expand ports reserved |

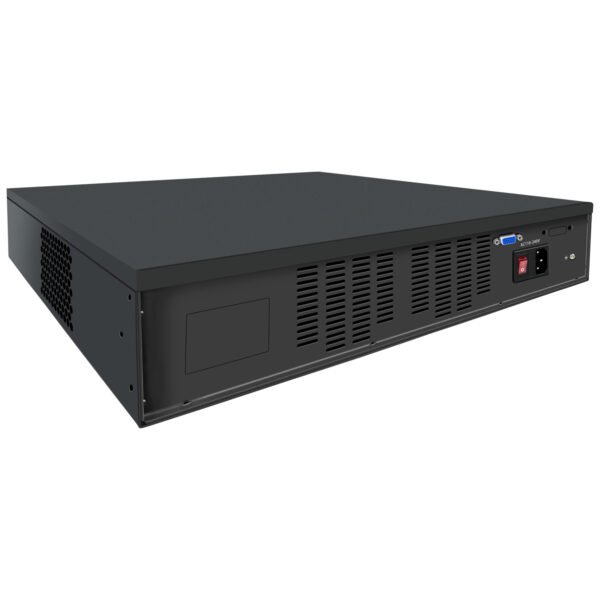

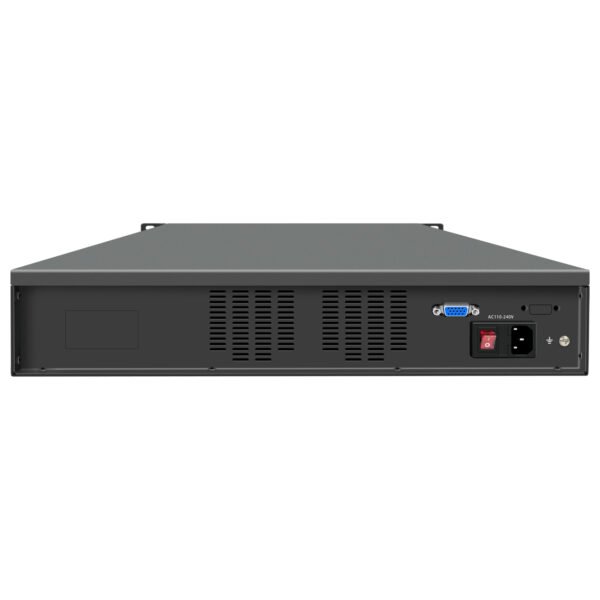

| Back Panel I/O | 1 × VGA, 2 × reserved antenna holes, 1 × AC socket |
| Console | 1 × RJ45 COM |
| Display Output | 1 × VGA |
| Graphics | Based on onboard ASPEED chip |
| Onboard SATA | 2 × SATA data connectors, 2 × SATA power sockets |
| Onboard USB | 1 × USB-A 2.0, 2 × F_USB 2.0 headers |
| Onboard Headers | 1 × F_PANEL, 1 × J_VGA, 2 × J_COM, 1 × Debug Card Header, 1 × LPT, 1 × TPM, 1 × Case Open Pins |
| SIM | 1 × SIM card slot |
| Cooling Method | Active Cooling, 1 × CPU Fan + 2 × Chassis Fans |
| Chassis Size | 490 × 400 × 89 mm |
| Motherboard Size | 287 × 285 mm |
| Weight | Equipment Weight: 6.85 KG; Package Weight: 8.80 KG including accessories |
| Power Mode | Input: 80V–264V AC 47–63Hz; Output: 300W MAX |
| Operating Temperature | 0°C to 50°C |
| Operating Humidity | 5% to 90% relative humidity, non-condensing |
Typical Applications
Enterprise Firewall Appliance
Dual Intel Xeon E5 v4 processors, 16 × Intel I226V 2.5GbE LAN, RJ45 console, active cooling, 2U rackmount chassis, and 300W power output make it suitable for enterprise firewall appliances, traffic inspection, secure gateway systems, and high-throughput network protection.
Multi-WAN Router
The 16-port 2.5GbE architecture supports multi-WAN access, LAN/WAN separation, VLAN segmentation, network isolation, multi-tenant routing, load balancing, link aggregation, and complex enterprise network management.
Network Security Appliance
PCIe x16 / x8 expansion, dual M.2 NVMe storage, SATA, 16 × RJ45 LAN, and server-grade I/O provide a strong base for network security appliances, SD-WAN platforms, UTM systems, traffic monitoring, and custom security hardware.
Industrial Network Gateway
SIM support, mPCIe, M.2 Key-E, COM, LPT, TPM, USB expansion, active cooling, wide AC input, and 2U chassis space make it suitable for industrial communication servers, factory network gateways, edge computing nodes, and OEM/ODM network deployments.
