Quick Specs
Product Overview Video
Watch an overview of the BKHD 2011-MATX server motherboard, including its Intel Xeon E5 v4 platform, high-capacity DDR4 memory, 10 SATA storage interfaces, dual M.2 NVMe SSD support, four Intel 2.5GbE network ports, PCIe expansion, and industrial I/O for server, NAS, virtualization, network appliance, and industrial computing applications.
Watch on YouTubeSpecifications

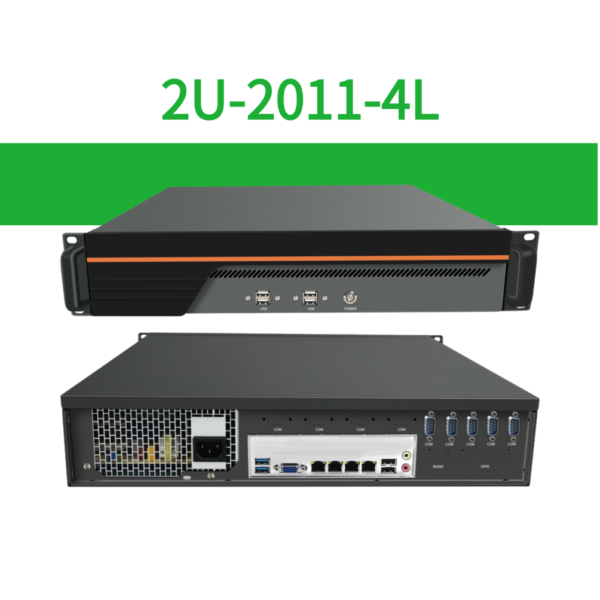

| Product Model | 2U-2011-4L |
|---|---|
| Processor | Intel Xeon Processor E5 v3/v4 Family |
| Socket | FCLGA2011-3 |
| Memory | DDR4 DIMM |
| Maximum Memory | 384GB (6 × 64GB) |
| Memory Frequency | 2400 MT/s |
| SATA | Up to 4 × SATA 6Gb/s |
| M.2 Storage | 2 × M.2 Key-M NVMe SSD |
| Ethernet | 4 × RJ45 2.5GbE |
| Network Controller | Intel I226V |
| PCIe Expansion |
1 × PCIe x16 Gen3 1 × PCIe x8 Gen3 (x16 Slot) 1 × PCIe x8 Gen3 |
| Front Panel |
4 × USB-A 2.0 1 × Power Button |
| Rear Panel |
1 × VGA 4 × RJ45 LAN 2 × USB-A 3.0 2 × USB-A 2.0 2 × Audio Jack AC Power Input |
| COM | Up to 6 × DB9 COM |
| Graphics | ASPEED / Integrated Server Graphics |
| Cooling |
Active Cooling 1 × CPU Fan 2 × Chassis Fans |
| Power Supply |
200V-240V AC 50/60Hz 200W MAX |
| Chassis Size | 435 × 405 × 88 mm |
| Weight |
Equipment Weight: 6.40 KG Package Weight: 8.50 KG |
| Operating Temperature | 0°C to 50°C |
| Humidity | 5% to 90% relative humidity |
Typical Applications
Server Node
Intel Xeon E5 platform, high-capacity DDR4 memory, NVMe storage and PCIe expansion provide a reliable hardware platform for enterprise servers, application servers, database servers and industrial computing nodes.
Network Firewall
Four Intel I226V 2.5GbE ports, PCIe expansion capability and Xeon processing performance make it suitable for firewall appliances, secure gateways, routing systems and network security platforms.
Virtual Machine Cluster
Up to 384GB DDR4 memory, multi-core Xeon processors, NVMe SSD support and multiple PCIe slots provide strong support for virtualization platforms and multi-service server environments.
Industrial Automation
Multiple COM interfaces, PCIe expansion, high memory capacity and industrial rackmount design make it suitable for automation servers, control systems and industrial edge applications.
