Quick Specs
Specifications
| Product Model | BKHD 1700NP-8-BAY NAS |
|---|---|
| Product Type | Eight-bay NAS, storage-server, and private-cloud system |
| Internal Motherboard | BKHD 1700NP-NAS, 170 x 170 mm Mini-ITX |
| Processor Platform | Intel 12th, 13th, and 14th Gen processors |
| Processor Socket | FCLGA1700 |
| Memory | 2 x full-size DDR5 DIMM, up to 96GB total using 2 x 48GB modules, up to 4800 MT/s |

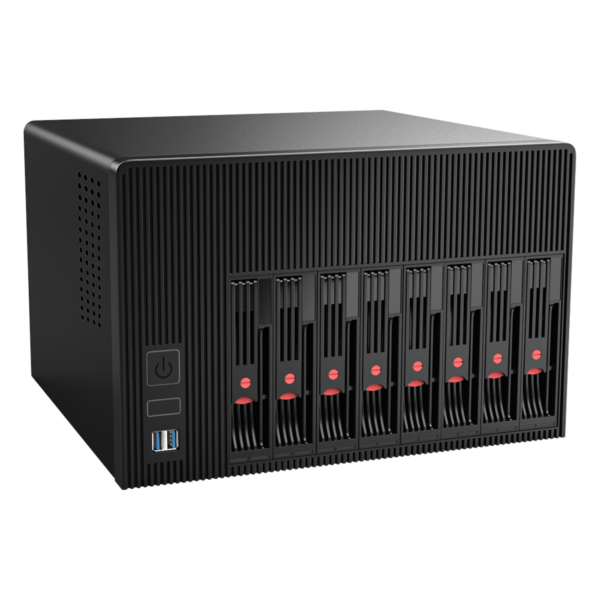

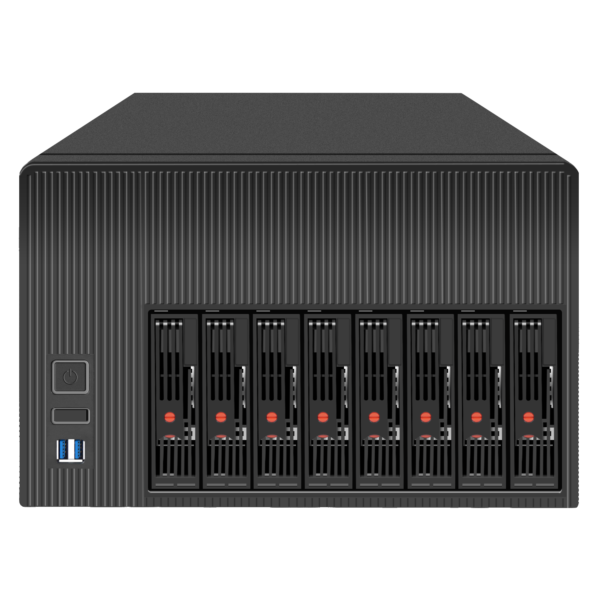

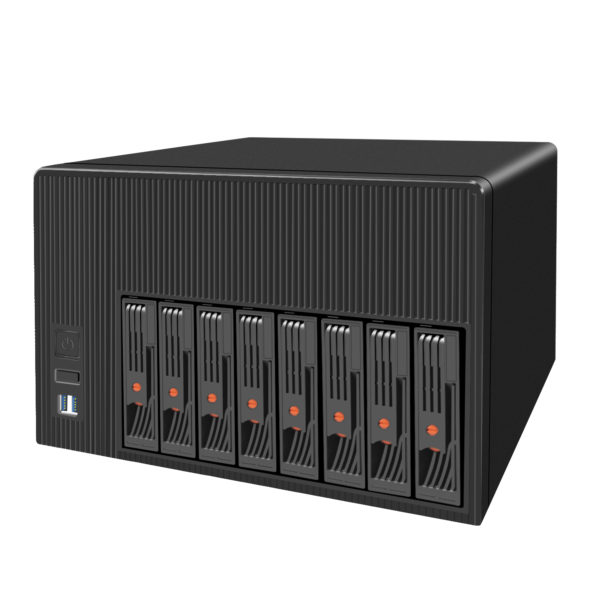

| Drive Bays | 8 x front-access hot-swappable SATA drive bays |
| SATA Storage | Up to 8 x SATA 3.0 drives connected to the internal motherboard |
| M.2 Storage | 1 x M.2 Key-M 2280, PCIe Gen4 x4 NVMe |
| Ethernet | 4 x RJ45 2.5GbE |
| Network Controllers | 4 x Intel I226V |
| PCIe Expansion | 1 x PCIe x8 slot with PCIe 5.0 x8 signal; add-in-card compatibility depends on chassis clearance, riser, power, cooling, and final configuration |
| Additional Expansion | 1 x mPCIe slot with USB 3.0 and PCIe x1 signals; 1 x SIM card slot |
| Graphics | Intel integrated graphics; capability depends on the installed processor |
| Display Outputs | 1 x DP and 1 x HD |
| Front I/O | 1 x power/restart button and 2 x USB-A ports; USB speed depends on the final internal cable and production configuration |

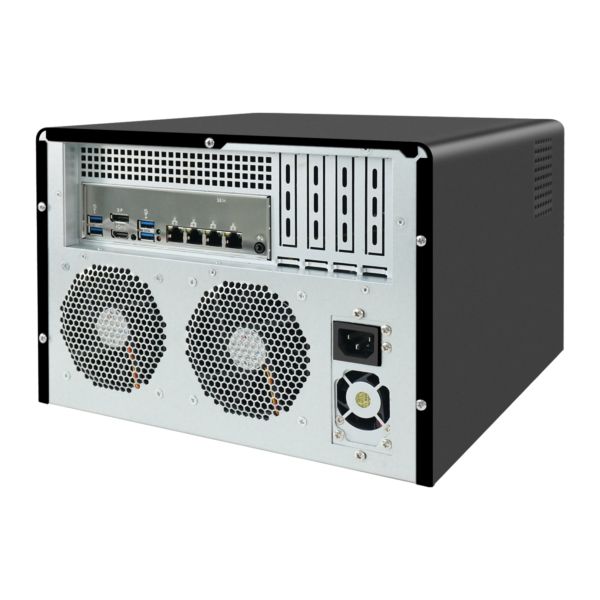

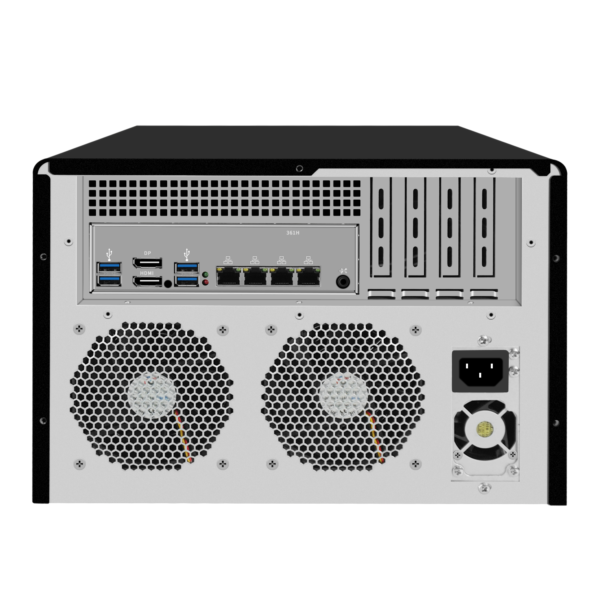

| Rear I/O | 4 x RJ45 2.5GbE, 4 x USB-A 3.0, 1 x DP, 1 x HD, 1 x 3.5 mm audio jack, and 1 x Clear CMOS button |
| Serial Interfaces | 2 x onboard COM headers, independently configurable as RS232 or RS485 |
| Other Onboard I/O | 2 x F_USB 2.0 headers, 1 x F_PANEL, 1 x J_GPIO, 1 x J_TPM 2.0, 1 x CPU_FAN, and 1 x SYS_FAN |
| Power Input | 100V-240V AC, 50/60Hz; fitted power-supply capacity depends on the production configuration |
| Cooling | Active processor and chassis cooling; fan layout depends on the production configuration |
| Chassis Size | 310 x 305 x 220 mm |
| Operating Temperature | 0°C to 50°C |
| Operating Humidity | 5% to 95% relative humidity, non-condensing |
Processor, memory, SSD, hard drives, cooler, add-in cards, and operating-system software depend on the selected bundle. RAID, link aggregation, integrated graphics, storage performance, PCIe operation, and peripheral compatibility depend on the installed hardware, firmware, drivers, network equipment, and final system configuration. Confirm the front USB wiring, fitted power supply, fan layout, and expansion-card clearance for the production batch before ordering.
Typical Applications
The 1700NP-8-BAY NAS combines eight hot-swappable drive bays, socketed Intel desktop-class processing, DDR5 memory, NVMe storage, four 2.5GbE interfaces, and PCIe 5.0 expansion for scalable storage and edge-server deployments.
Enterprise NAS and File Server
Eight hot-swappable bays, NVMe storage, up to 96GB DDR5 memory, and four 2.5GbE interfaces provide a capable platform for shared storage, departmental file services, and multi-user data access.
Backup, Archive, and Private Cloud
High-capacity multi-drive storage and socketed Intel processor options suit centralized backup, document archives, private-cloud storage, and local data-protection workflows.
Virtualization and Storage Services
Up to 96GB DDR5, four independent 2.5GbE ports, NVMe storage, and PCIe 5.0 x8 expansion support small virtualization hosts and storage-service workloads after software and hardware validation.
Edge and Surveillance Storage
Multi-port networking, serial and GPIO expansion, large drive capacity, and a compact tower chassis support edge data collection, appropriately sized NVR storage, and OEM storage-appliance integration.
Downloads & Support
Important: before updating the BIOS, verify the motherboard model, PCB marking, hardware revision, installed processor, and current BIOS version. Use only firmware confirmed for the exact board revision. Installing incompatible firmware may prevent the system from booting.
