1338-12-2L-MB

Price range: $119.99 through $269.99

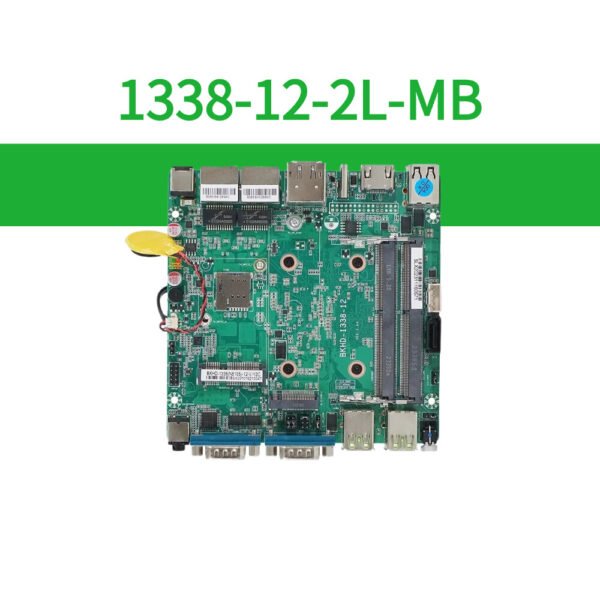

The 1338-12-2L is a compact industrial embedded motherboard powered by the Intel Celeron N Series platform. It supports up to 16GB DDR4 SO-DIMM memory, SATA 6Gb/s, and M.2 Key-M SSD storage. With dual Gigabit Ethernet, rich USB, dual serial ports, GPIO, SIM slot, mPCIe, audio, DP, and dual HD outputs, it offers strong integration flexibility for industrial control, smart terminals, digital signage, HMIs, edge gateways, and automation systems.

SKU: N/A Categories: , , , Tags: , , , , , Brand:

Quick Specs

Processor Platform Intel Celeron Processor N Series
Network 2 × 1GbE RJ45 LAN
Memory Up to 16GB DDR4 SO-DIMM
Storage SATA 6Gb/s + M.2 Key-M 2280
Display 1 × DP + 2 × HD
Form Factor 121.6 × 121.6 mm Embedded Motherboard

Specifications

Product Model1338-12-2L Motherboard
Processor CollectionIntel Celeron Processor N Series
SocketFCBGA1338
Memory TypeDDR4 SO-DIMM
Maximum Memory Capacity16GB
Maximum Memory Frequency2933 MHz
SATA1 × SATA 6Gb/s
M.2 Storage1 × M.2 Key-M 2280, PCIe 3.0 x1
Ethernet2 × 1GbE RJ45 LAN
Network Controller2 × Realtek 8111
Backplane I/O2 × RJ45 LAN, 1 × DB9 COM RS232 / RS485, 1 × DB9 COM RS232, 1 × DP, 2 × HD, 2 × USB-A 3.0, 2 × USB-A 2.0, 1 × USB-C, 1 × Power Button, 1 × Jack Audio, 1 × Jack DC 5.5/2.5mm
Display Output1 × DP, 2 × HD
GraphicsIntel UHD Graphics
Serial Port2 × DB9 COM; COM1 supports RS232 / RS485 adjustment, COM2 supports RS232
USB2 × USB-A 3.0, 2 × USB-A 2.0, 1 × USB-C
Audio1 × Jack Audio
Expansion Interface1 × mPCIe
SIM1 × SIM Card Slot
GPIO1 × J_GPIO Header
Onboard I/O1 × SATA Data Connector, 1 × SATA Power Socket, 1 × CPU Fan Power Socket, 1 × F_PANEL, 1 × J_GPIO
Power Supply ModeDC 12V
Motherboard Size121.6 × 121.6 mm
Operating Temperature-20°C to 55°C
Operating Humidity5% to 90% relative humidity, non-condensing

Typical Applications

Embedded Terminal

Compact 121.6 × 121.6 mm motherboard design, rich USB, audio, dual LAN, serial communication, and multi-display support make it ideal for embedded terminals, kiosks, control consoles, and smart commercial devices.

IoT Gateway

Dual Gigabit Ethernet, mPCIe expansion, SIM support, SATA and M.2 storage, and DC 12V operation support IoT gateways, remote data collection, cellular communication, and edge connectivity.

Industrial Automation

COM1 RS232 / RS485 adjustment, COM2 RS232, GPIO, dual LAN, SATA, M.2, and wide-temperature motherboard operation make it suitable for PLC communication, equipment control, machine monitoring, and factory automation.

Digital Signage

Intel UHD Graphics with 1 × DP and 2 × HD display outputs enables HMI panels, information displays, advertising players, interactive terminals, and multi-screen digital signage systems.

Downloads & Resources

Data Sheet Product Manual BIOS / Firmware Driver Download

Share with your friends.

Facebook
WhatsApp
LinkedIn
Pinterest
X
Weight 0.55 kg
Dimensions 26 × 26 × 8 cm
Integrated Processor

Intel Celeron N5105
Bundles

Motherboard only (Excluding PSU), 4GB DDR4 128GB NVMe, 8GB DDR4 128GB NVMe, 8GB DDR4 256GB NVMe
